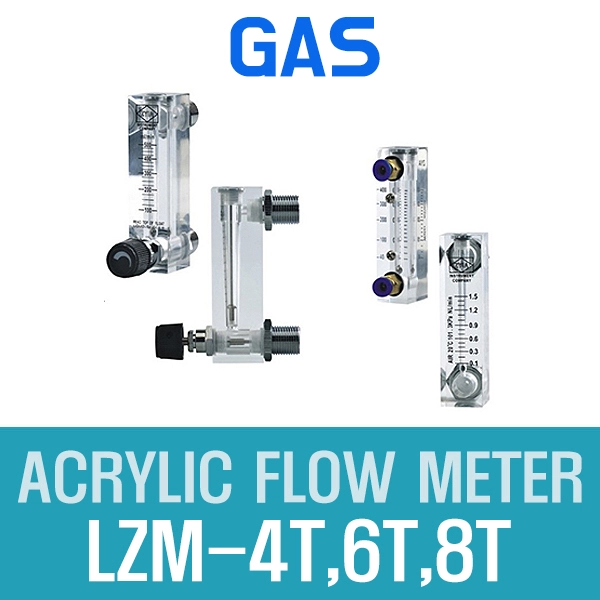

(GAS,L/min)LZM-4T●LZM-6T●LZM-8T●(LZM4T)(LZM6T)(LZM8T)●Gas Flow Meter●가스 플로우 메타●가스 플루우 메타●KIO Acrylic Flow Meter●판넬 밸브식 아크릴 유량계●에어 플루우 메타●(flow=0.05 L/min~0.4 ㎥/h)●(6mm hose~BSP1/4)●(KINGTAI,KIO,DME)

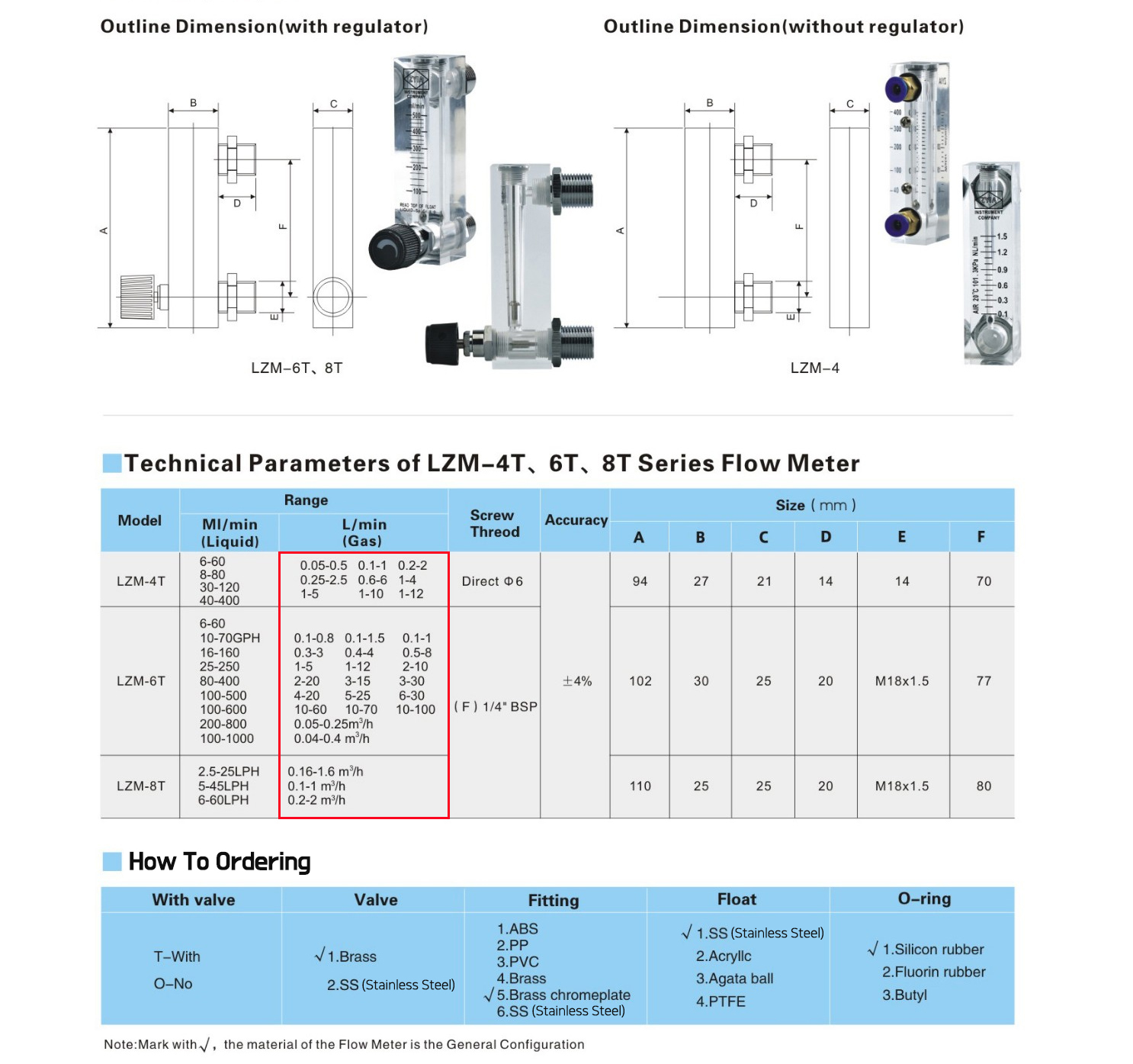

LZM-4T,6T,8T 카탈로그

●(L/min, Gas) Gas Flow meter with regulator (94mm, 70mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-4T-2611 (0.05~0.5 L/min) (Direct 6mm hose)

●LZM-4T-2611 (0.1~1 L/min) (Direct 6mm hose)

●LZM-4T-2611 (0.2~2 L/min) (Direct 6mm)

●LZM-4T-2611 (0.05~2.5 L/min) (Direct 6mm hose)

●LZM-4T-2611 (0.6~0.6 L/min) (Direct 6mm hose)

●LZM-4T-2611 (1~4 L/min) (Direct 6mm hose)

●LZM-4T-2611 (1~5 L/min) (Direct 6mm hose)

●LZM-4T-2611 (1~10 L/min) (Direct 6mm hose)

●LZM-4T-2611 (1~12 L/min)-(SUS316) (Direct 6mm hose) (csq4733)

●(L/min, Gas) Gas Flow meter with regulator (102mm, 77mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-6T-2611 (0.1~0.8 L/min) (1/4BSPT F) (csq5609)

●LZM-6T-2611 (0.1~1.5 L/min) (1/4BSPT F)

●LZM-6T-2611 (0.1~1 L/min)-(SUS316) (1/4BSPT F) (csq4406)

●LZM-6T-2611 (0.3~3 L/min) (1/4BSPT F)

●LZM-6T-2611 (0.4~4 L/min) (1/4BSPT F)

●LMZ-6T-2611 (0.5~8 L/min) (1/4BSPT F)

●LZM-6T-2611 (1~0.6 L/min) (1/4BSPT F)

●LZM-6T-2611 (1~5 L/min) (1/4BSPT F)

●LZM-6T-2611 (1~12 L/min) (1/4BSPT F)

●LZM-6T-2611 (2~10 L/min) (1/4BSPT F)

●LZM-6T-2611 (2~20 L/min) (1/4BSPT F)

●LZM-6T-2611 (3~15 L/min) (1/4BSPT F)

●LZM-6T-2611 (3~30 L/min) (1/4BSPT F)

●LZM-6T-2611 (4~20 L/min) (1/4BSPT F)

●LZM-6T-2611 (5~25 L/min) (1/4BSPT F)

●LZM-6T-2611 (6~30 L/min) (1/4BSPT F)

●LZM-6T-2611 (10~60 L/min) (1/4BSPT F)

●LZM-6T-2611 (10~70 L/min) (1/4BSPT F)

●LZM-6T-2611 (10~1000 L/min) (1/4BSPT F)

●LZM-6T-2611 (0.05~0.2 ㎥/h) (1/4BSPT F)

●LZM-6T-2611 (0.04~0.4 ㎥/h) (1/4BSPT F)

●(L/min, Gas) Gas Flow meter with regulator (102mm, 77mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-8T-2611 (0.16~1.6 ㎥/h) (1/4BSPT F)

●LZM-8T-2611 (0.1~1 ㎥/h) (1/4BSPT F)

●LZM-8T-2611 (0.2~2 ㎥/h)-(SUS316) (1/4BSPT F) (csq1364)

●1Gal/min=3.78 L/min

●1Gph=3.78/60= 0.063 L/min

●1SCFH( ft³ /60 )=1.698 L/min

●1SCFM( ft³  )=28.3 L/min

●1㎥/h= 1,000L/h = 16.667L/min

●1루베=1,000L=1,000,000ml=1,000,000CC

●1LPH(1L/h)=60LPM(60L/min)=60,000CC/mim

■(RMA) (RMB) (RMC)

●KIO Acrylic Flow Meter

●KIO 판넬 밸브식 아크릴 유량계

●KIO 가스 플로우 메타

●KIO 가스 플루우 메타
