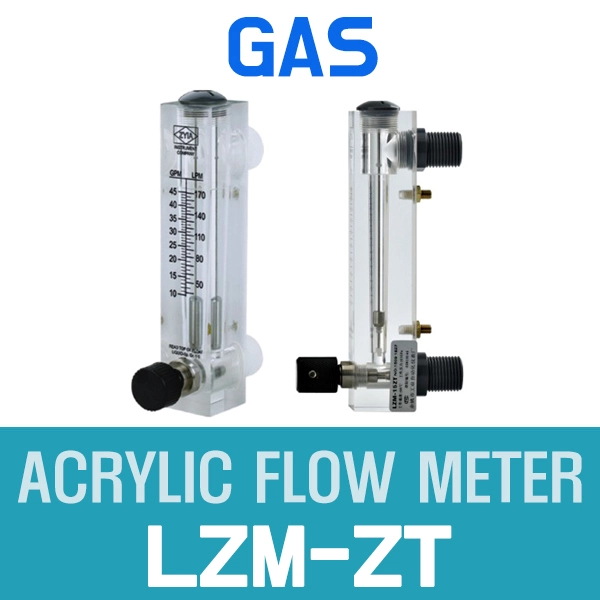

(GAS, ㎥/h )LZM-ZT●LZM-15ZAT●LZM-15ZT●LZM-25ZT●(LZM15ZAT)(LZM15ZT)(LZM25ZT)●Gas Flow Meter●Acrylic Flow Meter●판넬 밸브식 아크릴 유량계●가스 플로우 메타●에어 플루우 메타●(BSPT1/2" ~BSP1" )●(fiow=0.1㎥/h~250㎥/h●(KINGTAI,KIO,DME)

LZM-ZT 카탈로그

●(N㎥/h) Gas  Flow meter with regulator (157mm, 110mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-15ZAT-611 (0.1~1N㎥/h) (1/2 BSPT M )

●LZM-15ZAT-611 (0.16~1.6N㎥/h) (1/2 BSPT M )

●LZM-15ZAT-611 (0.1~1N㎥/h) (1/2 BSPT M )

●LZM-15ZAT-611 (0.4~4N㎥/h)-(SUS316) (1/2 BSPT M ) (csq4736)

●(N㎥/h) Gas  Flow meter with regulator (175mm, 127mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-15ZT-611 (0.04~0.4N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.16~1.6N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.1~1N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.25~2.5N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.3~3N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.4~4N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.6~6N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (0.8~8N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (1~10N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (1.6~16N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (2.5~25N㎥/h) (1/2 BSPT M)

●LZM-15ZT-611 (4~40N㎥/h)-(SUS316) (1/2 BSPT M) (csq4738)

●(N㎥/h) Gas  Flow meter with regulator (234mm, 16mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-25ZT-611 (20~100N㎥/h) (1 BSPT M )

●LZM-25ZT-611 (35~350N㎥/h) (1 BSPT M)

●LZM-25ZT-611 (40~160N㎥/h) (1 BSPT M)

●LZM-25ZT-611 (50~250N㎥/h)-(SUS316) (1 BSPT M) (csq4740)

●1Gal/min=3.78 L/min

●1Gph=3.78/60= 0.063 L/min

●1SCFH( ft³ /60 )=1.698 L/min

●1SCFM( ft³  )=28.3 L/min

●1㎥/h= 1,000L/h = 16.667L/min

●1루베= 1,000L=1,000,000ml=1,000,000CC

●1LPH(1L/h)=60LPM(60L/min)=60,000CC/mim

■(RMA) (RMB) (RMC)
