GBD●double acting air drive Air Booster●double acting,air drive Gas Booster●H2펌프,H2 Pump●더블타입 부스터●에어 부스터●가스 부스터●에어증압기●(media=air,He,CO2,H2,Ar,N2)●(max ratio=100:1)●(max pressure=830bar)●(SITEKE,SITEC)

SITEKE 전체 카탈로그1(중문)

SITEKE 전체카탈로그2(중문)

GBD 카탈로그(영문)  GBD 카탈로그(중문)

GBD07 카탈로그 GBD10 카탈로그

GBD15 카탈로그

GBD25 카탈로그 GBD30 카탈로그

GBD40 카탈로그

GBD60 카탈로그 GBD100 카탈로그

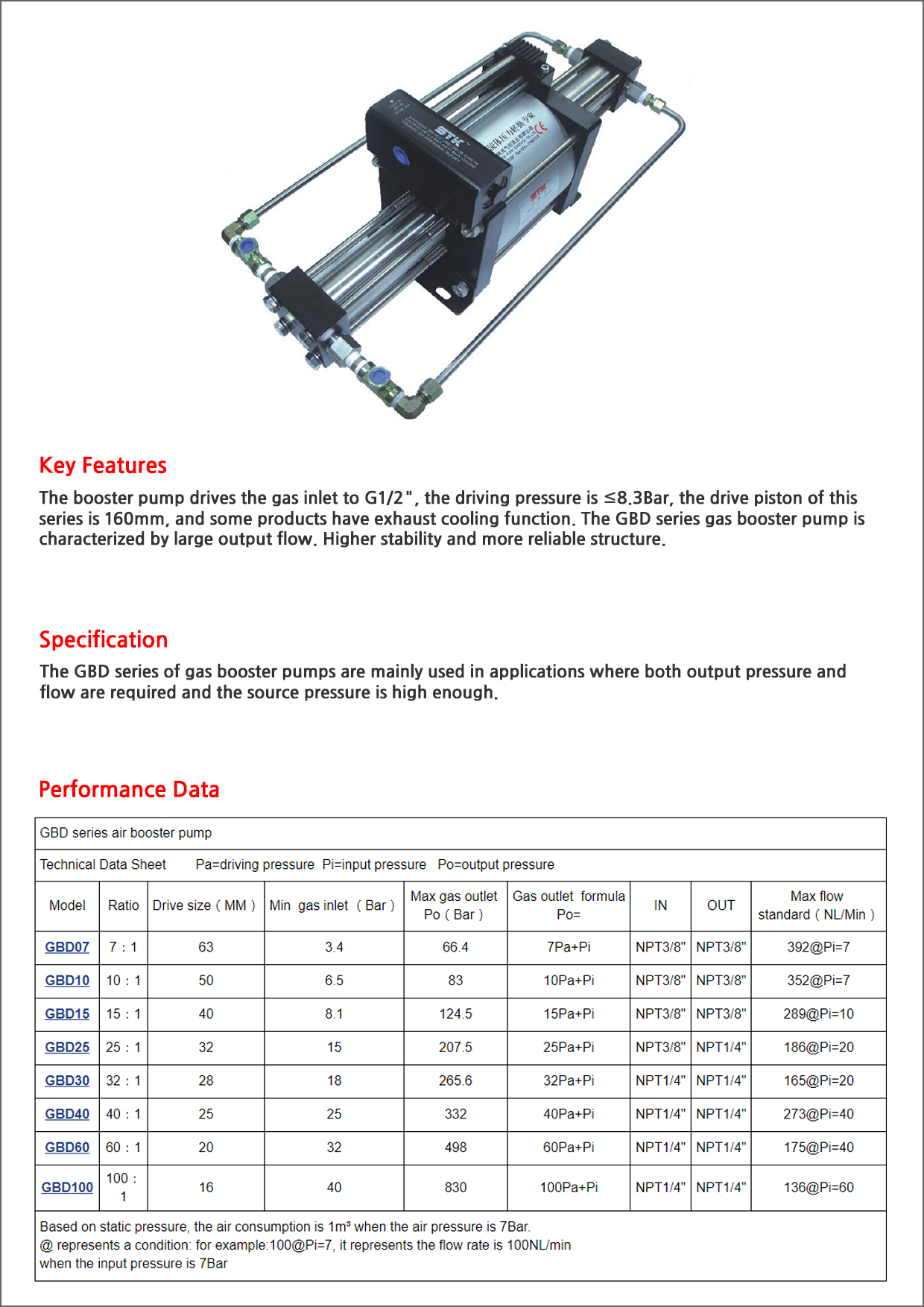

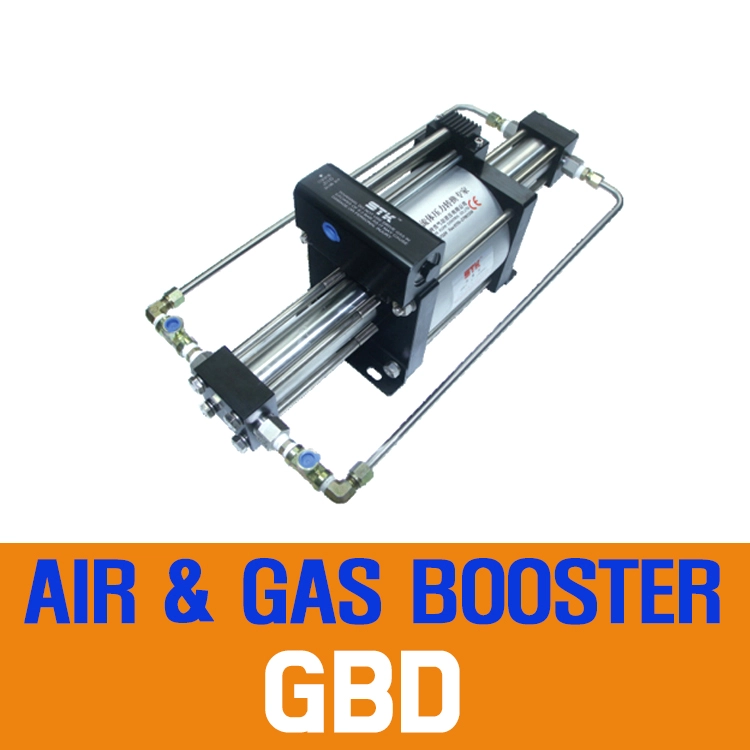

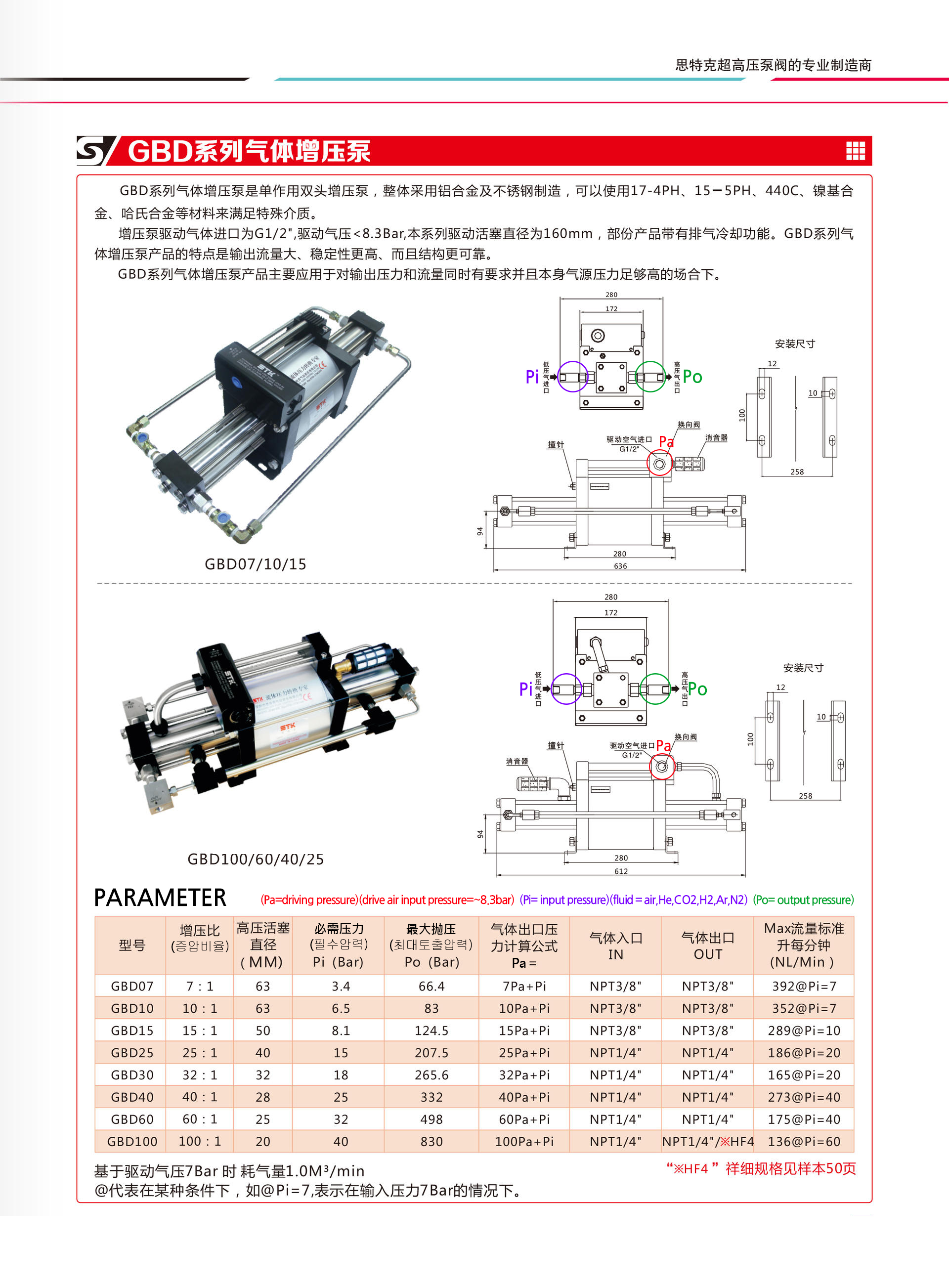

●Double acting air drive Air Booster & air drive Gas Booster

●Double acting Air Drive Gas Booster (media=air, gas)

●GBD07 (ratio=7:1) (foot type) (flow=7bar/392NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=minimum air, gas in put pressure=3.4bar)

(Po=air, gas max output pressure=66.4bar)

●GBD10 (ratio=10:1) (foot type) (flow=7bar/352NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=6.5bar)

(Po=air, gas max output pressure=83bar)

●GBD15 (ratio=15:1) (foot type) (flow=10bar/289NL/min)

(Pa=airdrive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=8.1bar)

(Po=air, gas max output pressure=124.5bar)

●GBD25 (ratio=25:1) (foot type) (flow=20bar/186NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=15bar)

(Po=air, gas max output pressure=207.5bar)

●GBD30 (ratio=30:1) (foot type) (flow=20bar/165NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=18bar)

(Po=air, gas max output pressure=265.6bar)

●GBD40 (ratio=40:1) (foot type) (flow=40bar/273NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=25bar)

(Po=air, gas max output pressure=332.5bar)

●GBD60 (ratio=60:1) (foot type) (flow=40bar/175NL/min)

(Pa=drive air input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=32bar)

(Po=air, gas max output pressure=498bar)

●GBD100 (ratio=100:1) (foot type) (flow=60bar/136NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=40bar)

(Po=air, gas max output pressure=830bar)

●(Pa/PD=air driving pressure) (air drive air input pressure=~8.3bar)

●(Pi/PS= air, gas input pressure) (media＝air,He,CO2,H2,Ar,N2)

●(Po/PH=air, gas  output pressure)

●Pa (booster Drive=Air) 와

Pi (Pressure Rising gas=Air, He, CO2, H2, Ar, N2, etc) 의 유체는

절대 혼합되지 않는다.

●CO2 Pump,CO2 펌프,이산화탄소펌프,이산화탄소 증압기,이산화탄소 부스터

●He Pump,헬륨펌프,helium Pump,헬륨부스터,핼륨증압기

●H2 Pump,수소펌프,수소증압기,수소부스터

●N2 Pump,질소펌프,질소부스터,질소증압기

●냉매펌프,냉매부스터,냉매증압기

●Ar Pump,Ar펌프, 아르곤펌프,아르곤 부스터,아르곤 증압기

●Air booster ●gas booster ●에어 부스터

●에어증압기 ●에어가스부스타 ●Air-gas booster ●고압누설테스트

●에어압력누설테스트기 ●에압력누설테스트기 ●압력누설테스트

●가스충전및가스증압 ●고압 공압회로장치 ●고압 유압회로장치

●고압 가스회로장치 ●공장에어라인파워보충 ●조선자동차방위업체

●자동화라인산업분야 ●밸브 튜브배관등 fitting배관업체

HASKEL  AGD-7, AGD-15, AGD-30, AGD-50, AGD-75
