GBT●double acting air drive Air Booster●double acting, air drive Gas Booster●더블 타입 에어부스터●씨텍 가스 부스터●시텍 에어 증압기●(media=air,He,CO2,H2,Ar,N2)●(max ratio=100:1)●(max pressure=830bar)●(SITEKE,SITEC)

SITEKE 전체 카탈로그1(중문)

SITEKE 전체 카탈로그2(중문)

GBT 카탈로그(영문)  GBT 카탈로그(중문)

GBT7-15 카탈로그 GBT7-30 카탈로그

GBT15-40 카탈로그

GBT15-60 카탈로그 GBT30-60 카탈로그

GBT30-100 카탈로그

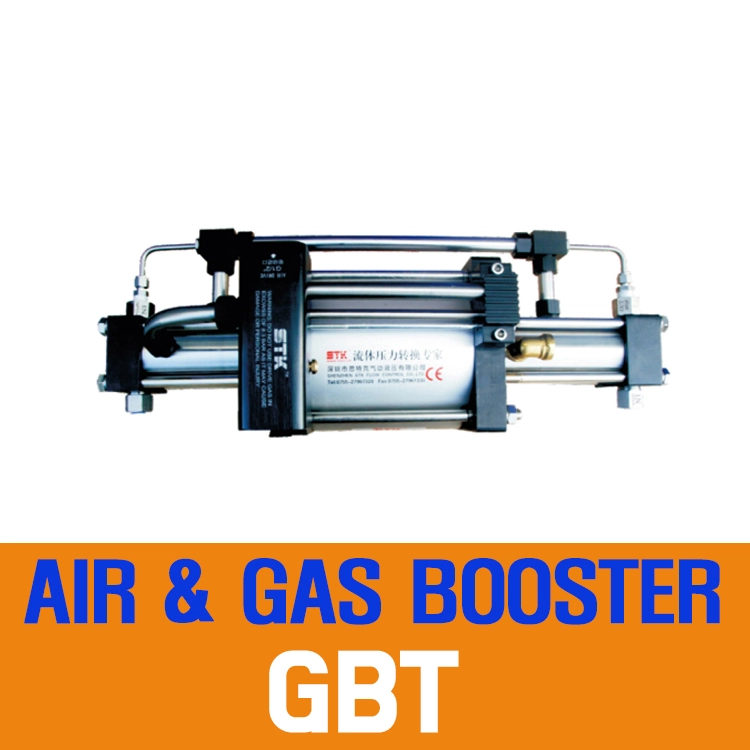

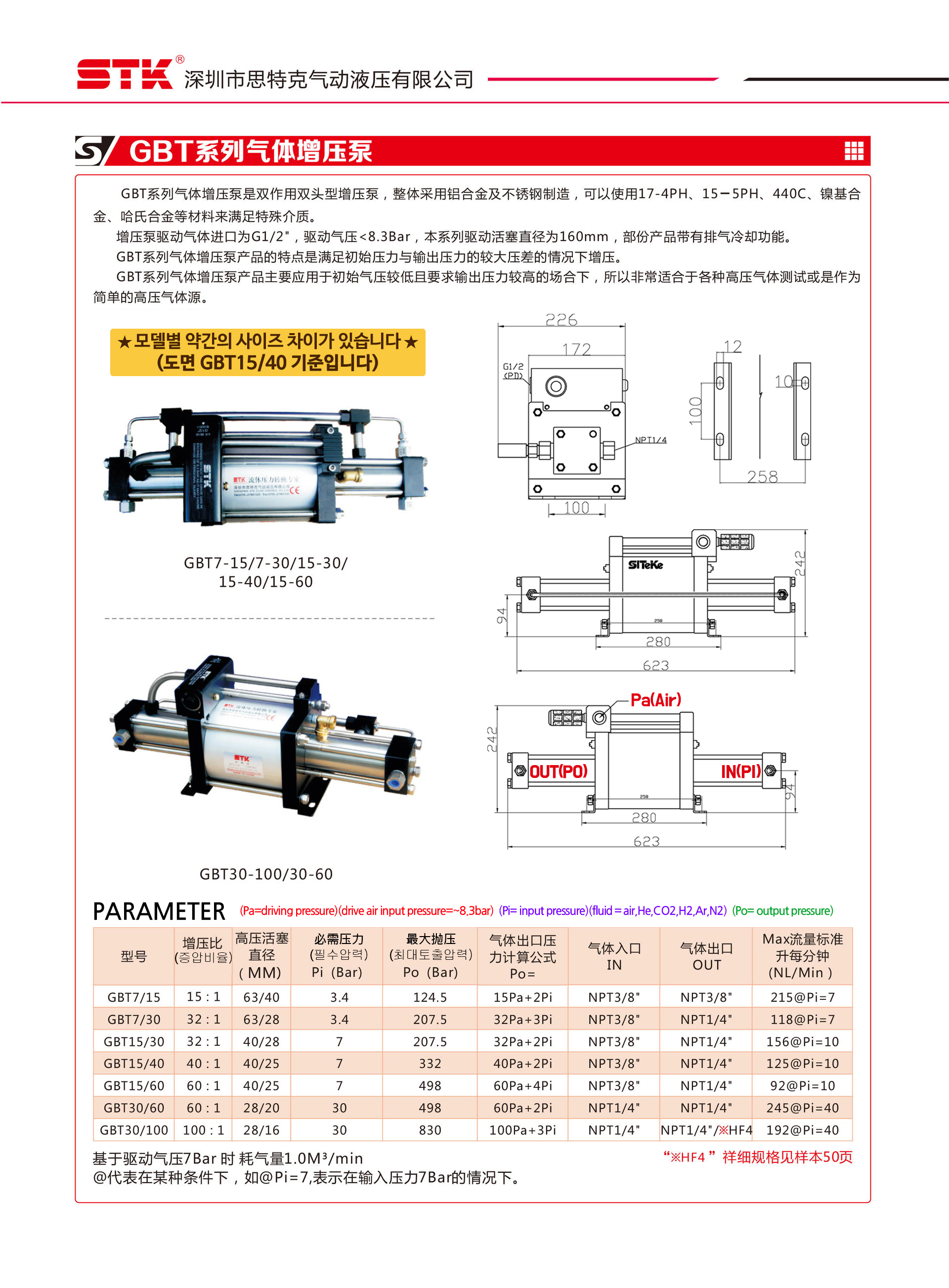

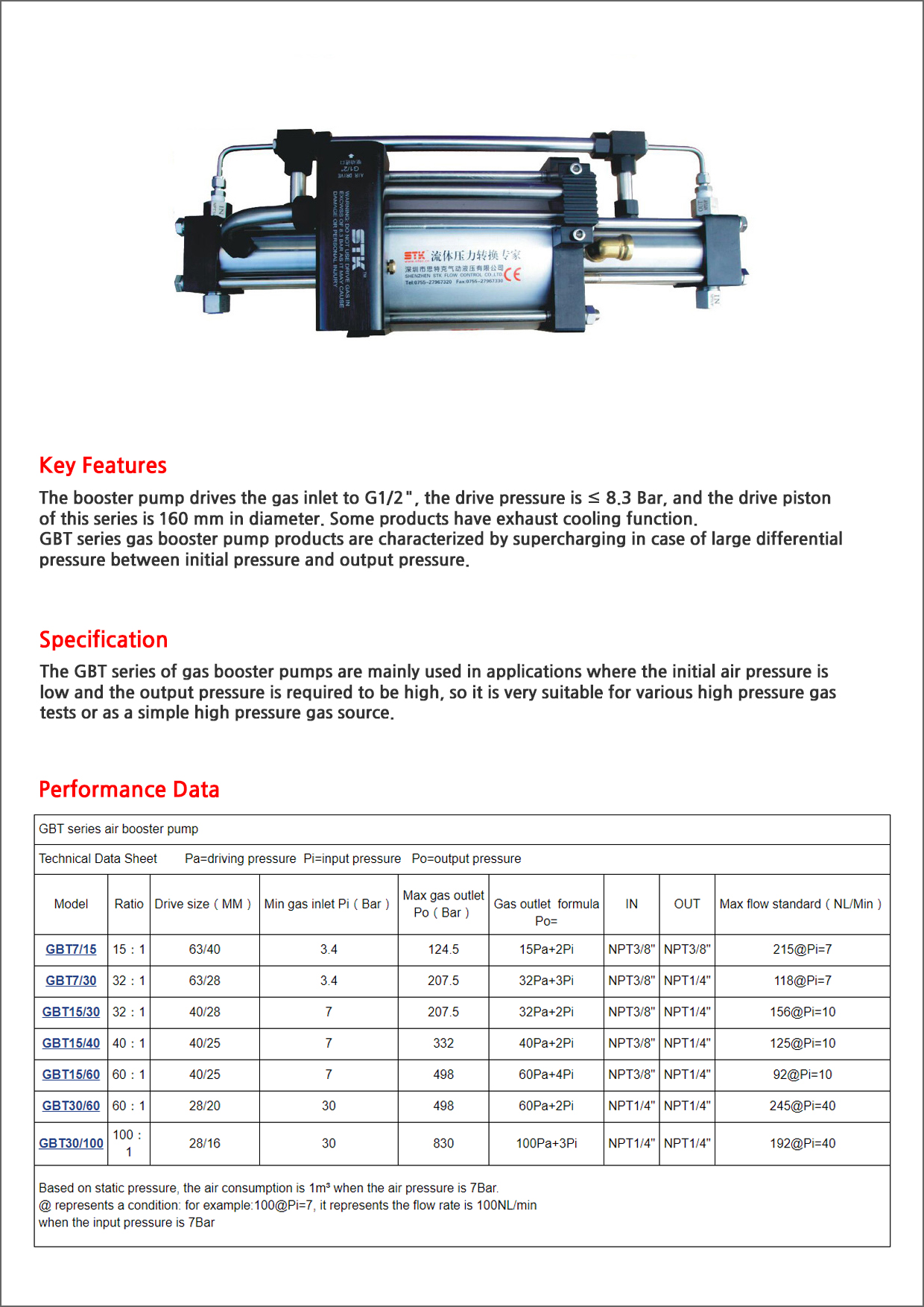

●Double acting air drive Air Booster (air drive Gas Booster)

●Double acting Air Drive Gas Booster (media=air, gas)

●(GBT7/15) (ratio=15:1) (foot type) (flow=7bar/215NL/min)

(PD=air drive  input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=3.4bar)

(Po=air, gas max output pressure=124.5bar)

●(GBT7/30) (ratio=32:1) (foot type) (flow=7bar/118NL/min)

(PD=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=3.4bar)

(Po=air, gas max output pressure=207.5bar)

●(GBT15/30) (ratio=32:1) (foot type) (flow=10bar/156NL/min)

(PD=drive air input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=7bar)

(Po=max output pressure=207.5bar)

●(GBT15/40) (ratio=40:1) (foot type) (flow=10bar/125NL/min) (csq4623)

(PD=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=7bar)

(Po=air, gas max output pressure=332bar)

●(GBT15/60) (ratio=60:1) (foot type) (flow=10bar/92NL/min)

(PD=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=7bar)

(Po=air, gas max output pressure=498bar)

●(GBT30/60) (ratio=60:1) (foot type) (flow=40bar/245NL/min)

(PD=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=30bar)

(Po=air, gas max output pressure=498bar)

●(GBT30/100) (ratio=100:1) (foot type) (flow=40bar/192NL/min)

(PD=air drive input pressure=~8.3bar)

(Pi=air, gas in put minimum pressure=30bar)

(Po=air, gas max output pressure=830bar)

●(PD/Pa=air driving pressure) (air drive air input pressure=~8.3bar)

●(Pi/PS= air, gas input pressure) (media＝air,He,CO2,H2,Ar,N2)

●(Po/PH=air, gas  output pressure)

Pa (booster Drive=Air) 와

Pi (Pressure Rising gas=Air, He, CO2, H2, Ar, N2, etc) 의 유체는

절대 혼합되지 않는다.

●CO2 Pump,CO2 펌프,이산화탄소펌프,이산화탄소 증압기,이산화탄소 부스터

●He Pump,헬륨펌프,helium Pump,헬륨부스터,핼륨증압기

●H2 Pump,수소펌프,수소증압기,수소부스터

●N2 Pump,질소펌프,질소부스터,질소증압기

●냉매펌프,냉매부스터,냉매증압기

●Ar Pump,Ar펌프, 아르곤펌프,아르곤 부스터,아르곤 증압기

●Air booster ●gas booster ●에어 부스터

●에어증압기 ●에어가스부스타 ●Air-gas booster ●고압누설테스트

●에어압력누설테스트기 ●에압력누설테스트기 ●압력누설테스트

●가스충전및가스증압 ●고압 공압회로장치 ●고압 유압회로장치

●고압 가스회로장치 ●공장에어라인파워보충 ●조선자동차방위업체

●자동화라인산업분야 ●밸브 튜브배관등 fitting배관업체

HASKELL AGT-7/15, AGT-7/30 , AGT-15/30, AGT-15/50, AGT-15/75, AGT-30/50, AGT-30/75
