AB●(AB02)●(AB03)●(AB04 )●single acting air drive air Booster●SITEKE air drive gas booster●싱글 타입 부스터●SITEKE 에어 부스터●SITEKE 에어 증압기●SITEKE 가스 부스터●(media=only air)●(max ratio=15:1)●(SITEKE,SITEC)

SITEKE 전체 카탈로그1(중문)

 SITEKE 전체카탈로그2(중문)

SITEKE(SITEC) Pump 카탈로그

 AB 카탈로그(영문) AB 카탈로그(중문)

4AB02 카탈로그 AB02 카탈로그 AB03 카탈로그

AB04 카탈로그 AB05T 카탈로그 AB07 카탈로그

AB08T 카탈로그 AB10 카탈로그 AB15 카탈로그

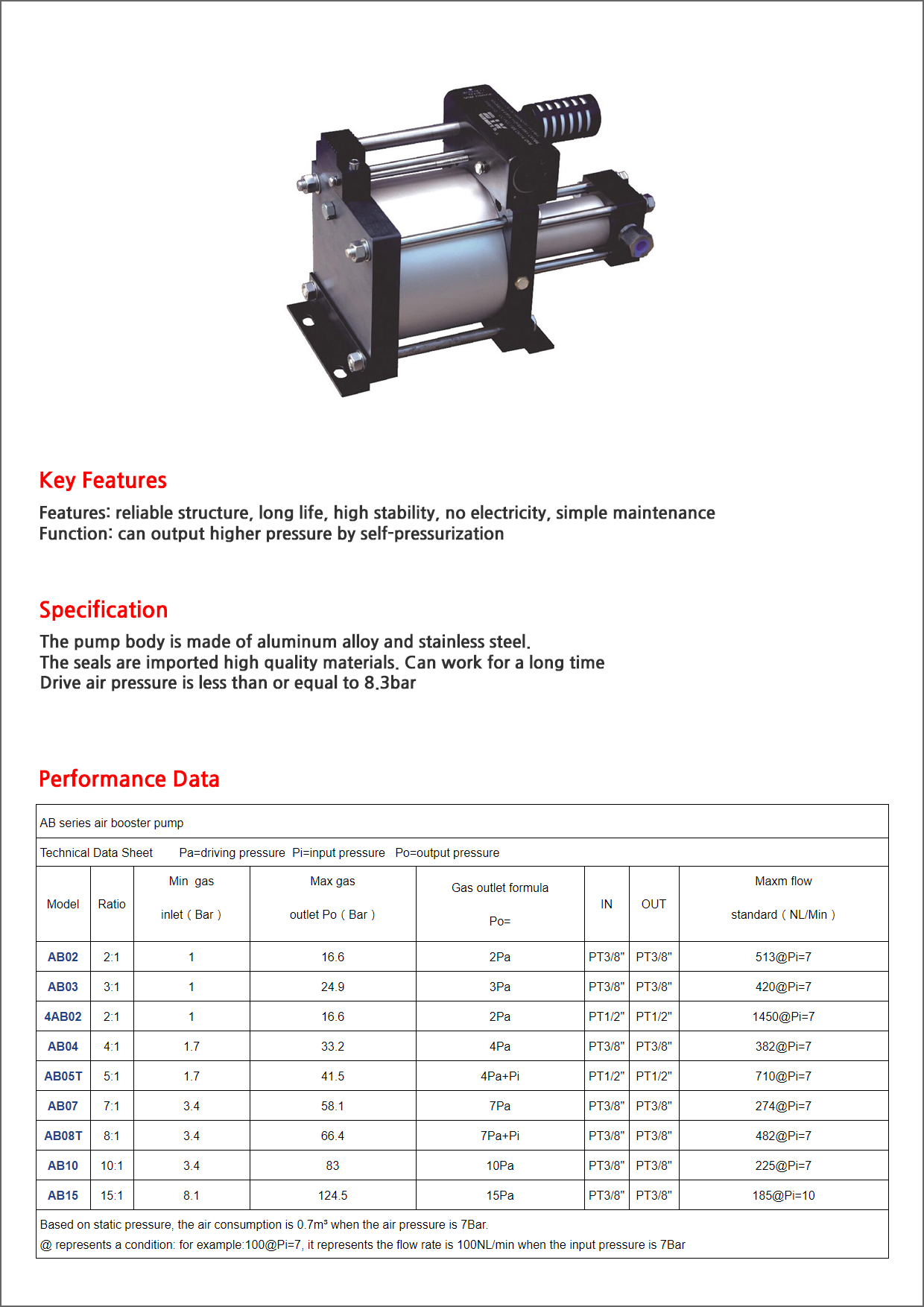

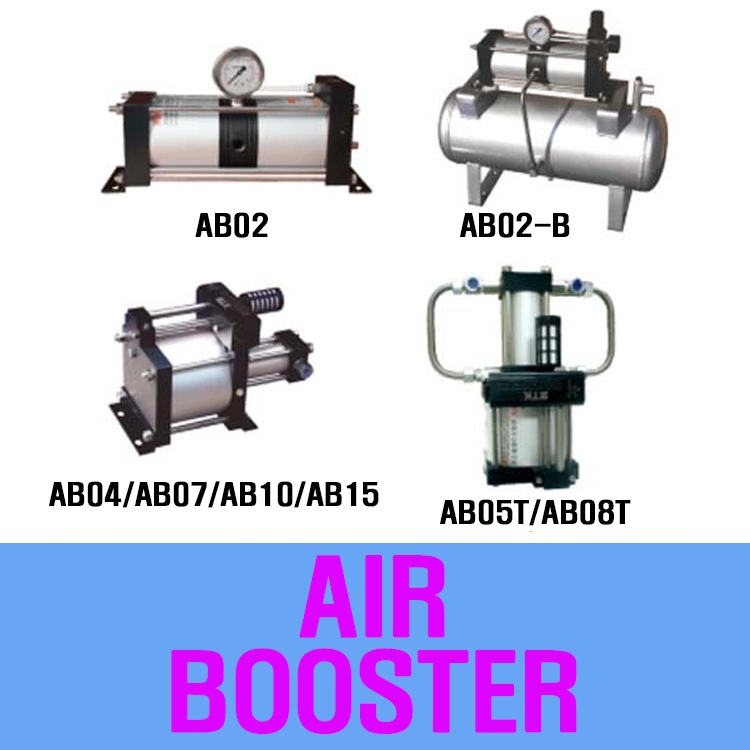

●(single acting) air drive Air Booster

●single acting Air Drive Air Booster (Fluid=only air)

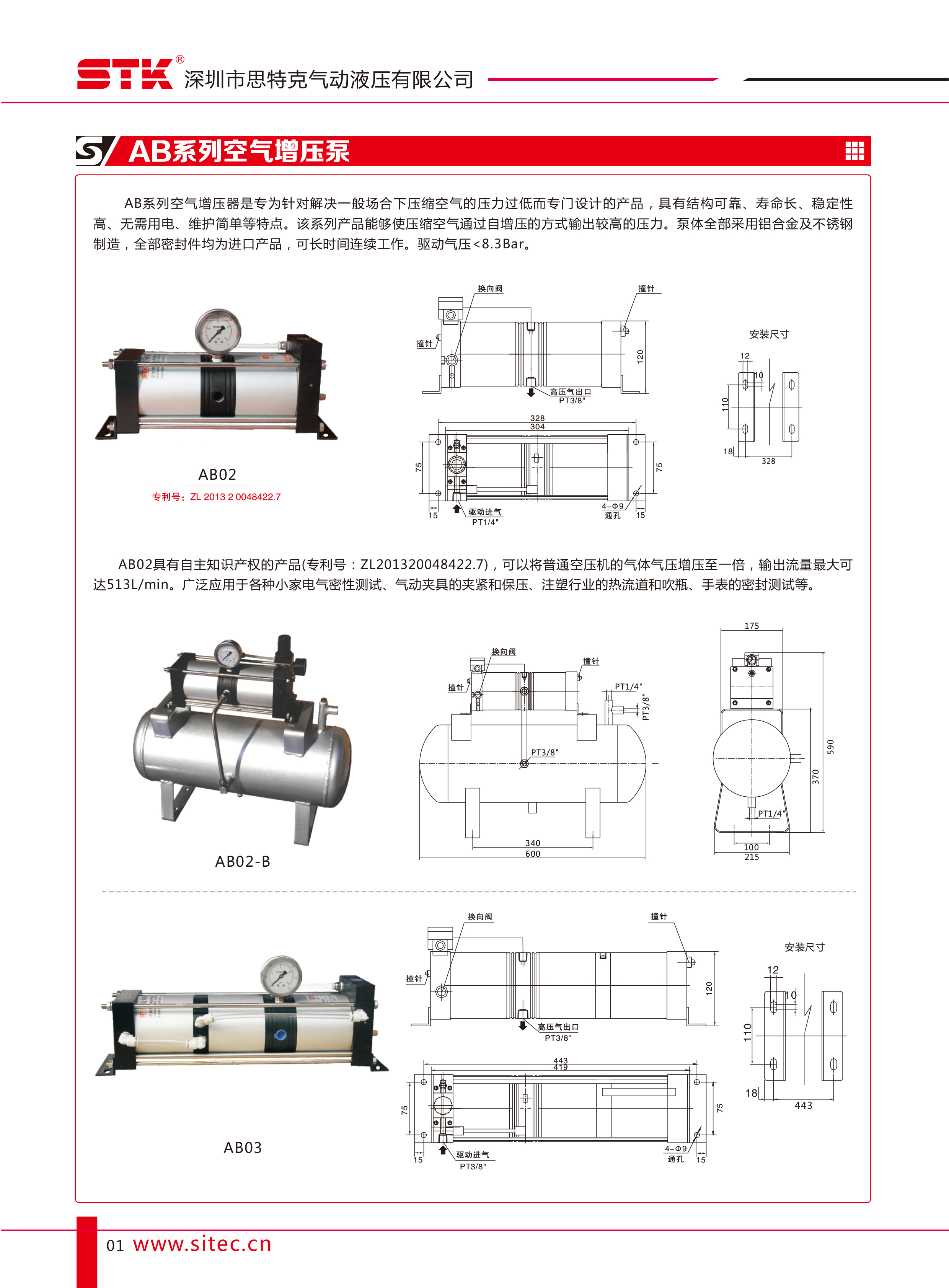

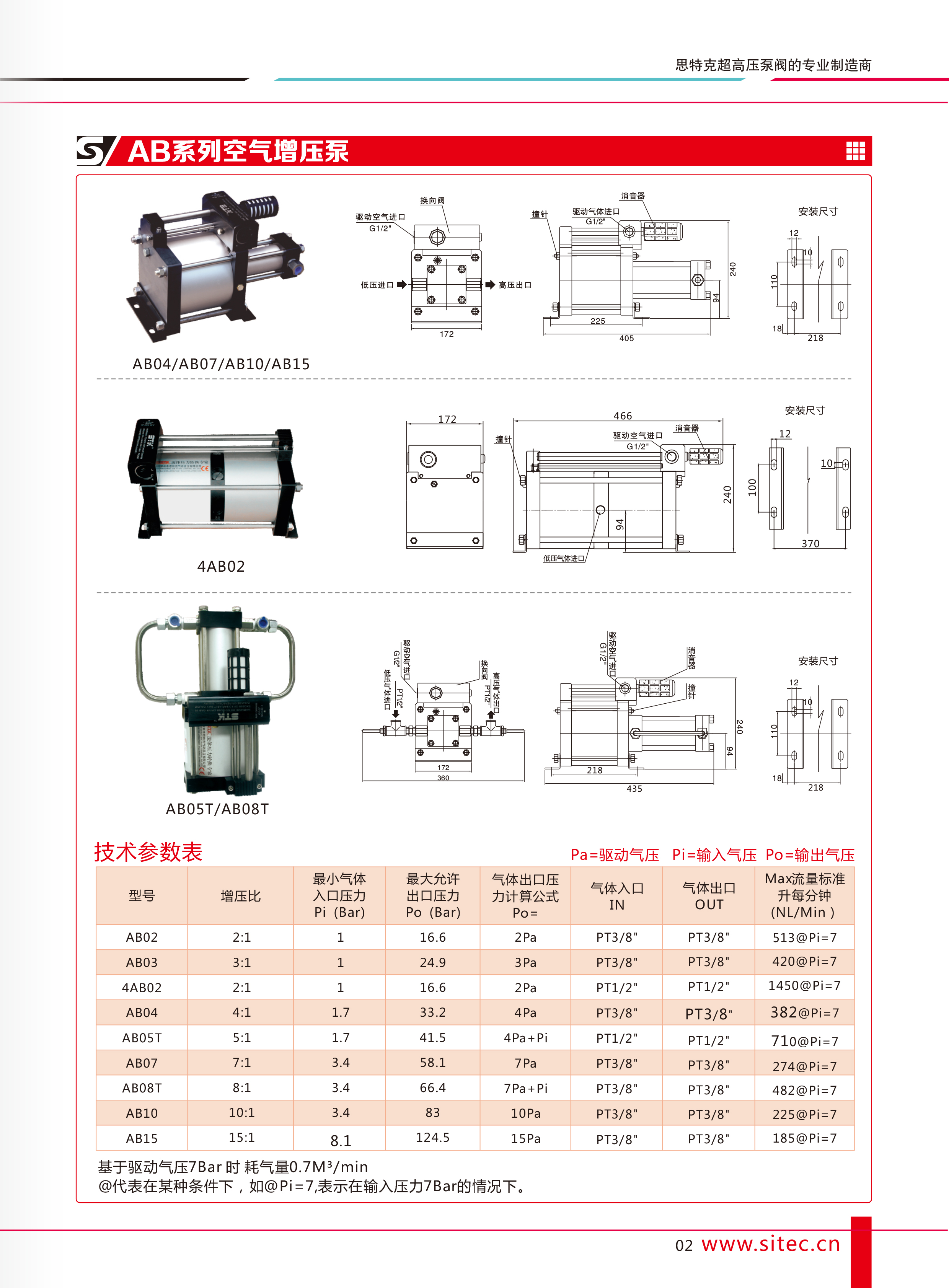

●(AB02)-(ratio=2:1) (foot type) (flow=Pa 7bar 513NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=1bar)

(Po=air max output pressure=16.6bar)

●(AB03)-(ratio=3:1) (foot type) (flow=Pa 7bar 420NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=1bar)

(Po=air max output pressure=24.9bar)

●(4AB02)-(ratio=2:1) (foot type) (fiow=Pa 7bar 1450NL/min)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=1bar)

(Po=air max output pressure=16.6bar)

●AB04-(ratio=4:1) (foot type) (flow=Pa 7bar 382NL/min) (csq3400)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=1.7bar)

(Po=air max output pressure=33.2bar)

●(AB05T)-(ratio=5:1) (foot type) (flow=Pa 7bar 710NL/min) (csq4646)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=1.7bar)

(Po=air max output pressure=41.5bar)

●(AB07)-(ratio=7:1) (foot type) (flow=Pa 7bar 274NL/min) (csq4500)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=3.4bar)

(Po=air max output pressure=58.1bar)

●( AB08T)-(ratio=8:1) (foot type) (flow=Pa 7bar 482NL/min) (csq4501)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=3.4bar)

(Po=air max output pressure=66.4bar)

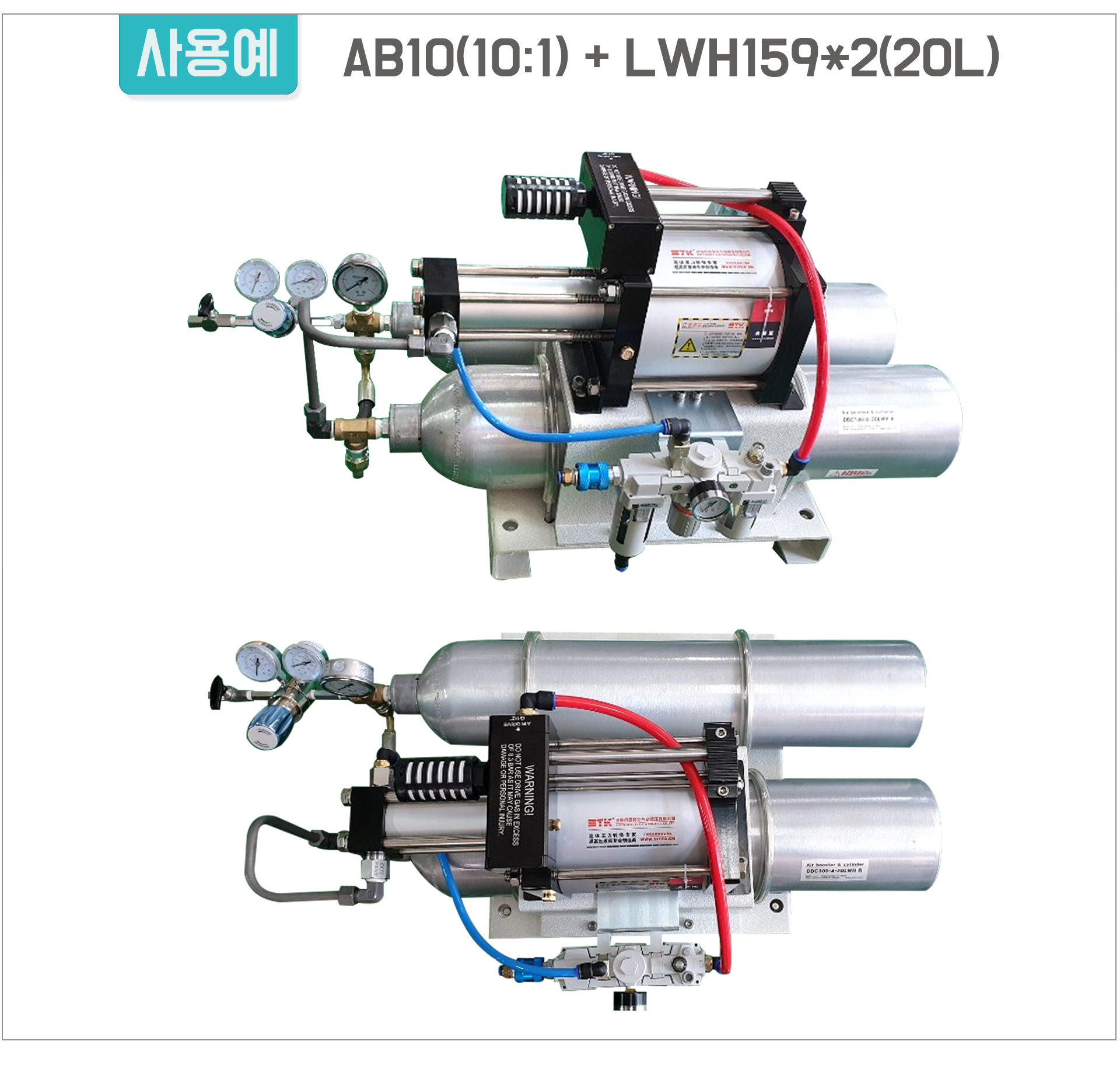

●AB10-(ratio=10:1) (foot type) (flow=Pa 7bar 225NL/min) (DME6410)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=3.4bar)

(Po=air max output pressure=83bar)

●AB15-(ratio=15:1) (foot type) (flow=Pa 10bar 185NL/min)(csq4650)

(Pa=air drive input pressure=~8.3bar)

(Pi=air  in put minimum pressure=8.1bar)

(Po=air max output pressure=124bar)

●Air booster with  (AL Tank volume=5L)

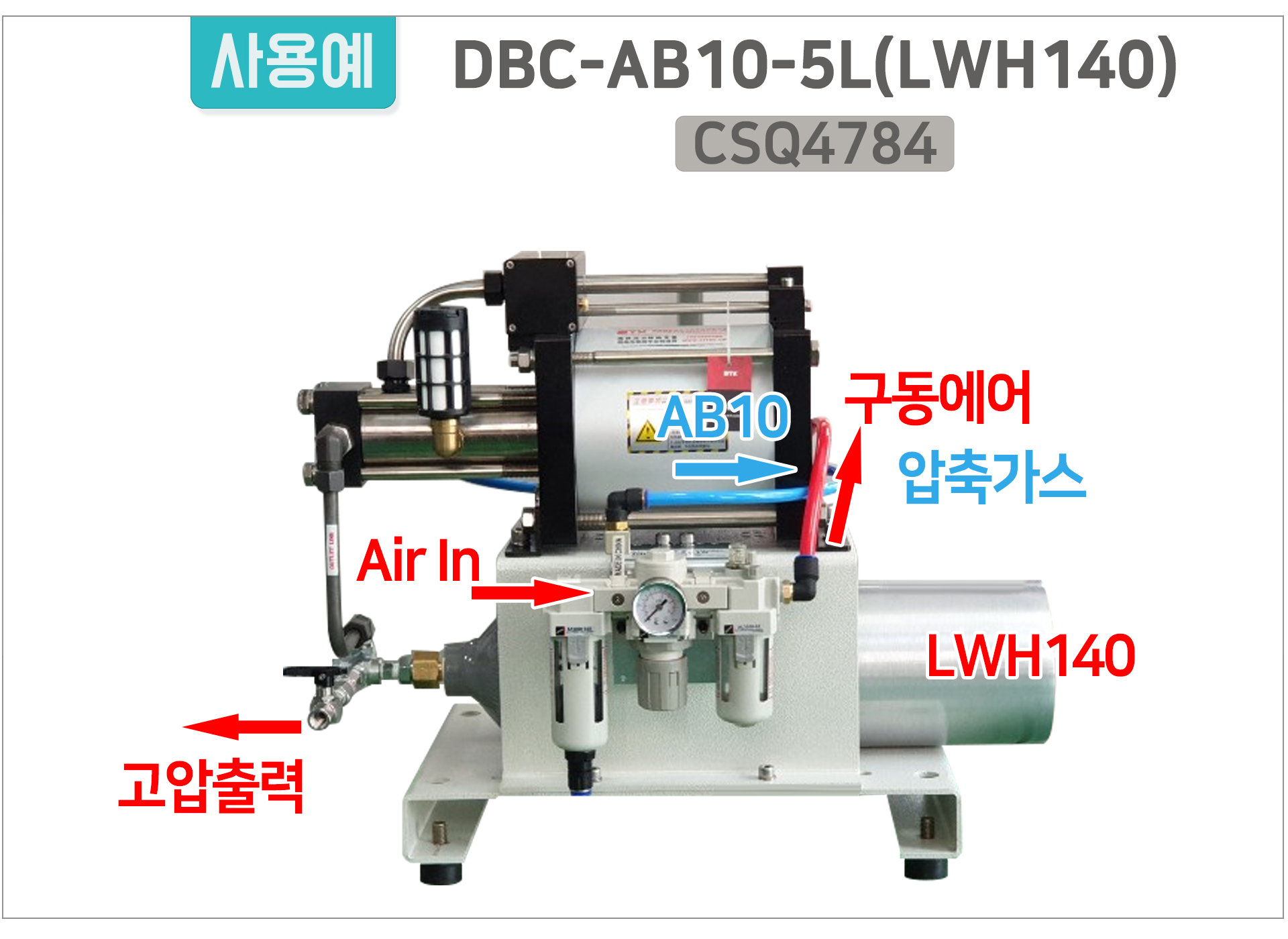

●DBC-AB10-5L-(LWH140) (ratio=10:1) (max pressure=80 bar) (csq4784)

●(only) Air Booster seal kit

●AB04 (for seal kit) (csq3401)

●AB05T (for seal kit) (csq4648)

●AB07 (for seal kit) (csq4499)

●AB08T (for seal kit) (csq4647)

●AB10 (for seal kit) (DME6411)

●AB15 (for seal kit) (csq4649)

●(Pa/PD=air driving pressure) (air drive air input pressure=~8.3bar)

●(Pi/PS=only  air  input pressure) (media=oniy air)

●(Po/PH=air output pressure)

Pa (booster Drive=Air) 와

Pi (Pressure Rising=Air) 의 유체는

절대 혼합되지 않는다.

●에어압력누설테스트기 ●에압력누설테스트기 ●압력누설테스트

●고압누설테스트 ●고압 유압회로장치

●공장에어라인파워보충 ●조선자동차방위업체

●자동화라인산업분야 ●밸브 튜브배관등 fitting배관업체

HASKELL HAA31-2.5 HAA31-3.5 HAA31-4.5 4AAD-2 AA-8 AA-15 AA-30 AAD-2 AAD-5 AAD-15 AAD-30 AAT-7/30 AAT-15/30 AAT-30/50 8AAD-2
