XT10●XT16●XT25●XT39●XT64●XT100●XT130●XT156●double-acting Liquid booster●SITEK air drive liquid booster●더블타입 부스터●리퀴드 부스터●오일펌프●수압펌프●워터펌프●리퀴드펌프●가스펌프●(max ratio=156:1)●(SITEKE,SITEC)

SITEKE 전체 카탈로그1(중문)

 SITEKE 전체카탈로그2(중문)

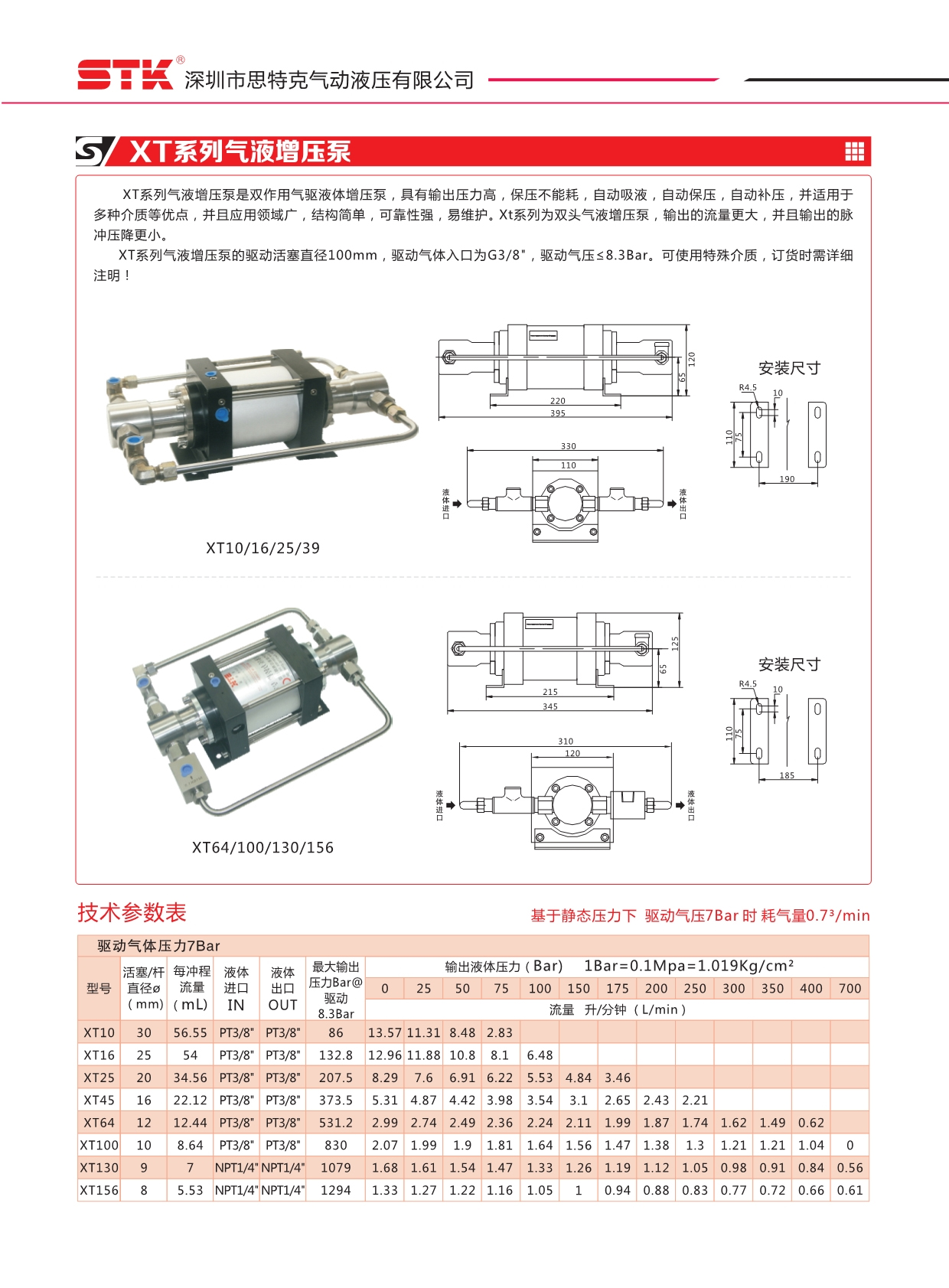

XT 카탈로그(영문) XT 카탈로그(중문)

XT10 카탈로그 XT16 카탈로그 XT25 카탈로그

  XT39 카탈로그 XT64 카탈로그 XT100 카탈로그

XT130 카탈로그 XT156 카탈로그

●Double acting gas flooding booster pump (Fluid=water, oil)

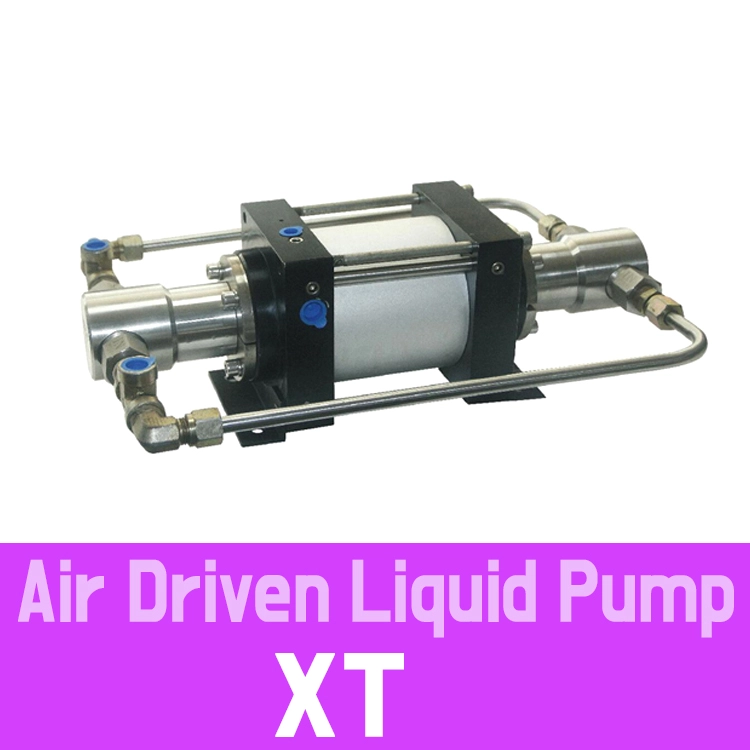

●Double acting Air Drive Liquid Booster (Fluid=water, oil)

●XT10 (raido=10:1) (at 7bar/ flow=13.57~2.83L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=86bar)

●XT16 (raido=16:1) (at 7bar/ flow=12.96~6.48L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=132.8bar)

●XT25 (raido=10:1) (at 7bar/ flow=8.29~3.46L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=207.5bar)

●XT39 (raido=39:1) (at 7bar/ flow=5.31~2.21L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=323.7bar)

●XT64 (raido=64:1) (at 7bar/ flow=2.99~0.62L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=531.2bar)

●XT100(raido=100:1) (at 7bar/ flow=2.07~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=830bar)

●XT130 (raido=130:1) (at 7bar/ flow=1.68~0.56L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1079bar)

●XT156 (raido=156:1) (at 7bar/ flow=13.33~0.61L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1294bar)
