AT10●AT16●AT20●AT28●AT40●AT64●AT80●AT100●AT130●AT170●AT240●AT300●AT400●double-acting Liquid booster●air drive liquid booster●더블타입 부스터●리퀴드 부스터●수압 펌프●리퀴드 펌프●가스 펌프●(max ratio=400:1)●(SITEKE,SITEC)

SITEKE 전체 카탈로그1(중문)

SITEKE 전체카탈로그2(중문)

AT 카탈로그(영문) AT 카탈로그(중문)

AT10 카탈로그 AT16 카탈로그 AT20 카탈로그

  AT28 카탈로그 AT40 카탈로그 AT64 카탈로그

AT100 카탈로그 AT130 카탈로그 AT170 카탈로그

AT240 카탈로그 AT300 카탈로그 AT400 카탈로그

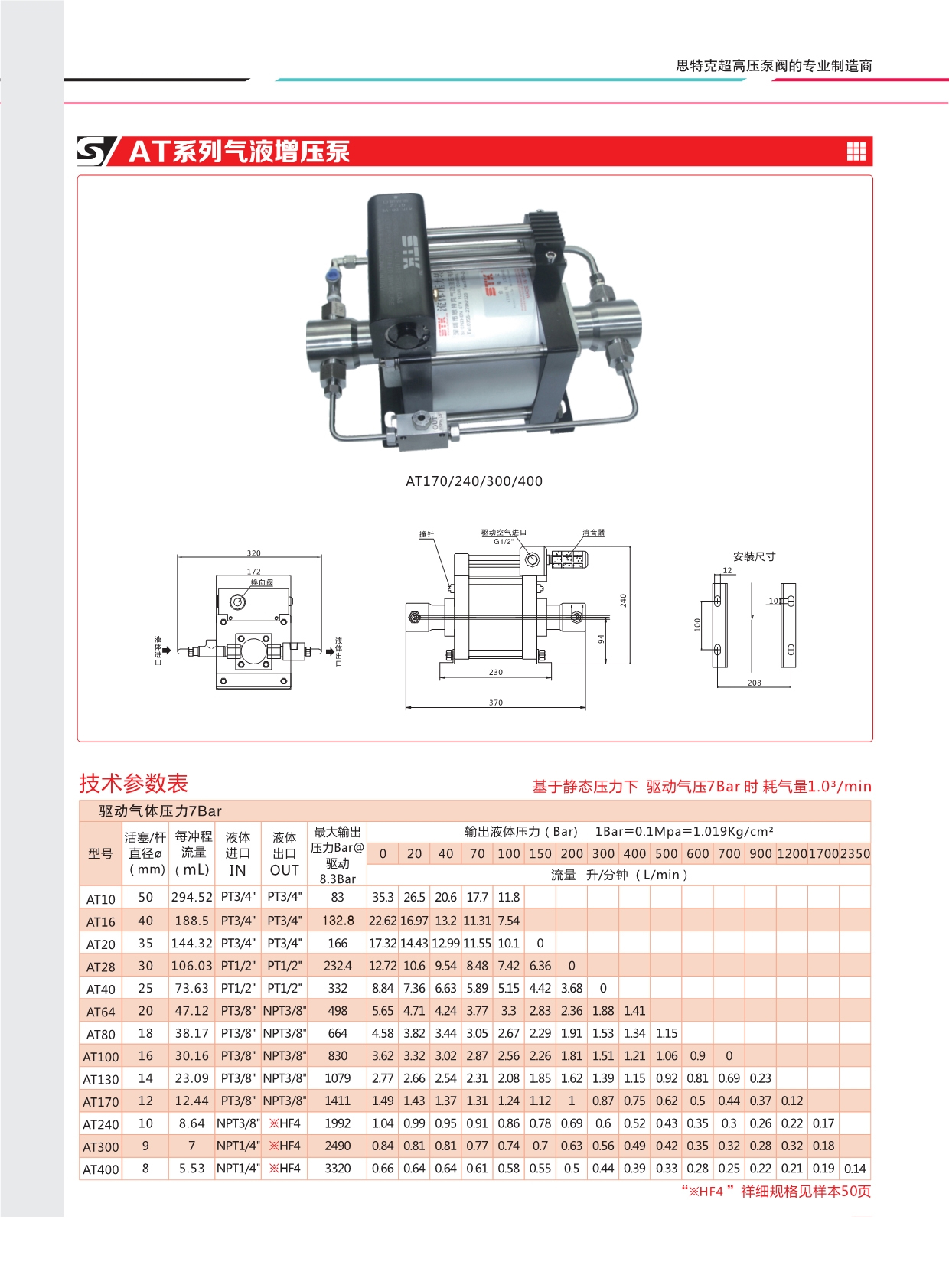

●Double acting gas flooding booster pump (Fluid=water, oil, gas)

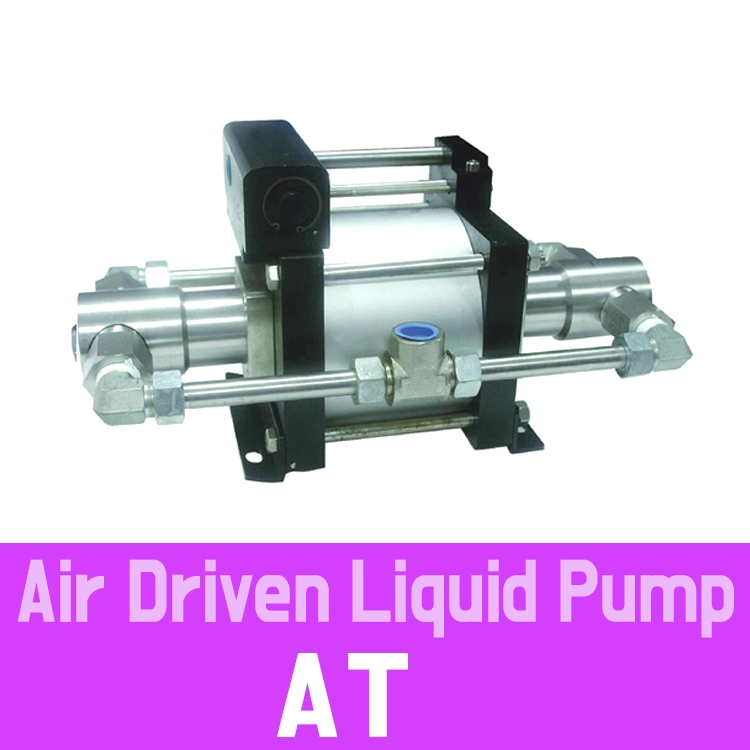

●Double acting Air Drive Liquid Booster (Fluid=water, oil, gas)

●AT10 (raido=10:1) (at 7bar/ flow=35.3~11.8L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=83bar)

●AT16 (raido=16:1) (at 7bar/ flow=22.62~7.54L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=132.8bar)

●AT20 (raido=20:1) (at 7bar/ flow=17.32~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=166bar)

●AT28 (raido=28:1) (at 7bar/ flow=12.72~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=232.4bar)

●AT40 (raido=40:1) (at 7bar/ flow=8.84~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=332bar)

●AT64 (raido=64:1) (at 7bar/ flow=5.65~1.41L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=498bar)

●AT80 (raido=80:1) (at 7bar/ flow=4.58~1.15L/min) (csq4334)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=664bar)

●AT100 (raido=100:1) (at 7bar/ flow=3.62~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=830bar)

●AT130 (raido=130:1) (at 7bar/ flow=2.77~0.23L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1079bar)

●AT170 (raido=170:1) (at 7bar/ flow=1.49~0.12L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1411bar)

●AT240 (raido=240:1) (at 7bar/ flow=1.04~0.17L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1992bar)

●AT300 (raido=300:1) (at 7bar/ flow=0.84~0.18L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=2490bar)

●AT400 (raido=400:1) (at 7bar/ flow=0.66~0.14L/min) (DME9489)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=3320bar)

●CO2 Pump,CO2 펌프,이산화탄소펌프,이산화탄소 증압기,이산화탄소 부스터

●He Pump,헬륨펌프,helium Pump,헬륨부스터,핼륨증압기

●H2 Pump,수소펌프,수소증압기,수소부스터

●N2 Pump,질소펌프,질소부스터,질소증압기

●냉매펌프,냉매부스터,냉매증압기

●Ar Pump,Ar펌프, 아르곤펌프,아르곤 부스터,아르곤 증압기

●Liquid booster,Liquid booster Pump,리퀴더펌프, 오일펌프
