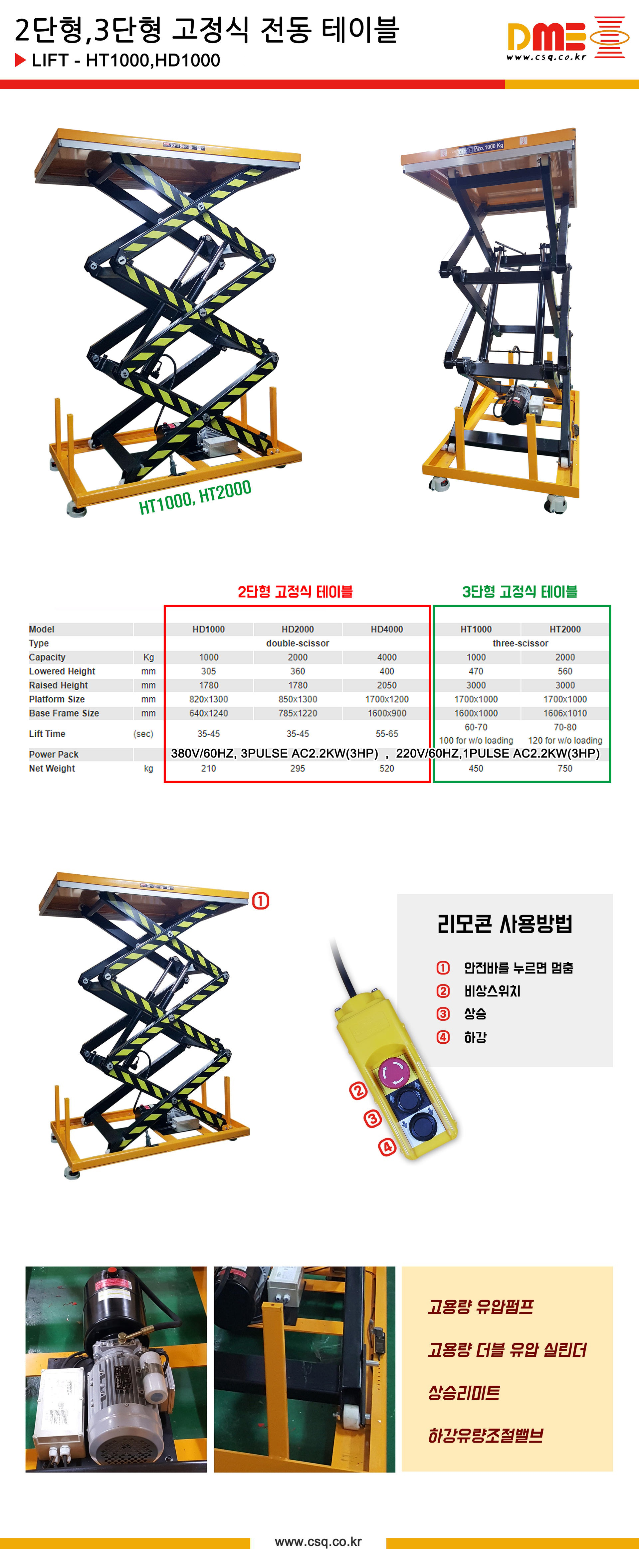

HT1000(1ton)●HT2000(2ton)●HD1000(1ton)●HD2000(2ton)●HD4000(4ton)●double Scissors Lift●Three phase Triple Scissors Lift Platform●고정식2단 리프터●고정식3단 리프터●(3단리프트=3m)●(2단리프트=1.78m)●(2단리프트=2.05m)●(LIFT,DME)

관련자료 (CLICK)

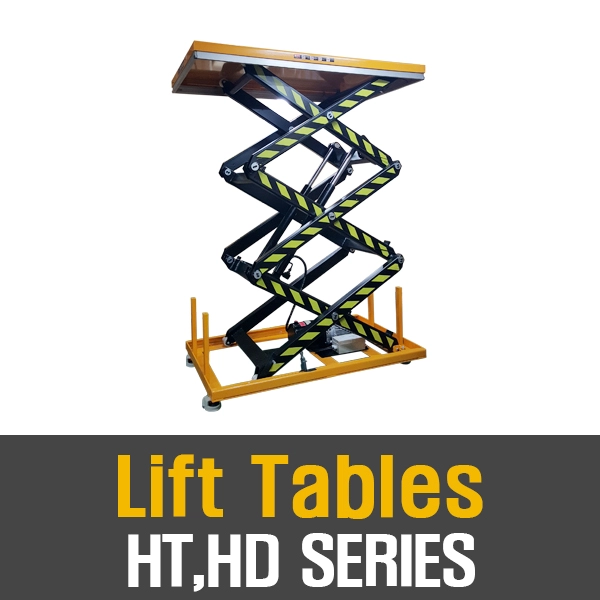

●(single phase) Electric Hydraulic Triple Scissors Lift Platform

●HT1000(Power Pack= 2.2KW,220V/60HZ / single phase) (MAD0141)

(Lowered=470mm) (Raised=3000mm) (Capacity=1000Kg)

(Platform=1700*1000mm) (Base Frame=1600*1000mm)

●HT2000(Power Pack=2.2KW,220V/60HZ / single phase) (MAD0159)

(Lowered=470mm) (Raised=3000mm) (Capacity=2000Kg)

(Platform=1700*1000mm) (Base Frame=1606*1010mm)

●(three phase) Electric Hydraulic Triple Scissors Lift Platform

●HT1000(Power Pack=2.2KW,220V/60HZ / three phase) (MAD0151)

(Lowered=470mm) (Raised=3000mm) (Capacity=1000Kg)

(Platform=1700*1000mm) (Base Frame=1600*1000mm)

●(three phase) Electric Hydraulic Triple Scissors Lift Platform

●HT1000(Power Pack= 2.2KW,220V/60HZ / three phase) (MAD0152)

(Lowered=470mm) (Raised=3000mm) (Capacity=2000Kg)

(Platform=1700*1000mm) (Base Frame=1606*1010mm)

●(single phase) Electric Hydraulic double Scissors Lift Platform

●HD1000(Power Pack=2.2KW, 220V/60HZ / single phase) (MAD0160)

(Lowered=305mm) (Raised=1780mm) (Capacity=1000Kg)

(Platform=820*1300mm) (Base Frame=640*1240mm)

●(single phase) Electric Hydraulic double Scissors Lift Platform

●HD2000(Power Pack= 2.2KW,220V/60HZ / single phase) (MAD0161)

(Lowered=360mm) (Raised=1780mm) (Capacity=2000Kg)

(Platform=850*1300mm) (Base Frame=785*1220mm)

●(single phase) Electric Hydraulic double Scissors Lift Platform

●HD4000 (Power Pack=2.2KW, 220V/60HZ / single phase) (MAD0162)

(Lowered=400mm) (Raised=2050mm) (Capacity=4000Kg)

(Platform=1700*1200mm) (Base Frame=1600*900mm)

●(three phase) Electric Hydraulic double Scissors Lift Platform

●HD1000(Power Pack=2.2KW, 220V/60HZ / three phase)

(Lowered=305mm) (Raised=1780mm) (Capacity=1000Kg)

(Platform=820*1300mm) (Base Frame=640*1240mm)

●(three phase) Electric Hydraulic double Scissors Lift Platform

●HD2000(Power Pack= 2.2KW,220V/60HZ / three phase)

(Lowered=360mm) (Raised=1780mm) (Capacity=2000Kg)

(Platform=850*1300mm) (Base Frame=785*1220mm)

●(three phase) Electric Hydraulic double Scissors Lift Platform

●HD4000 (Power Pack=2.2KW, 220V/60HZ / three phase)

(Lowered=400mm) (Raised=2050mm) (Capacity=4000Kg)

(Platform=1700*1200mm) (Base Frame=1600*900mm)
