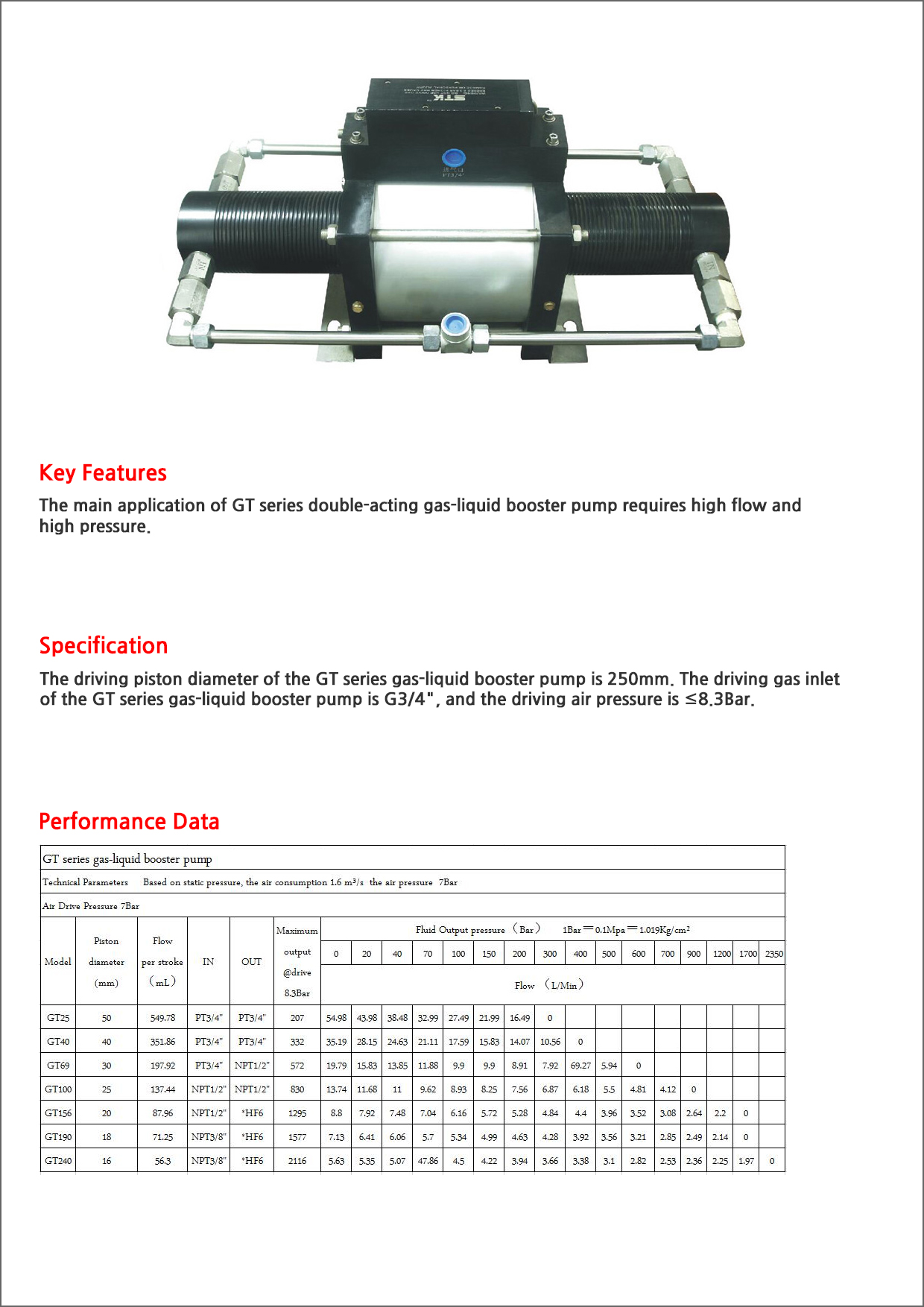

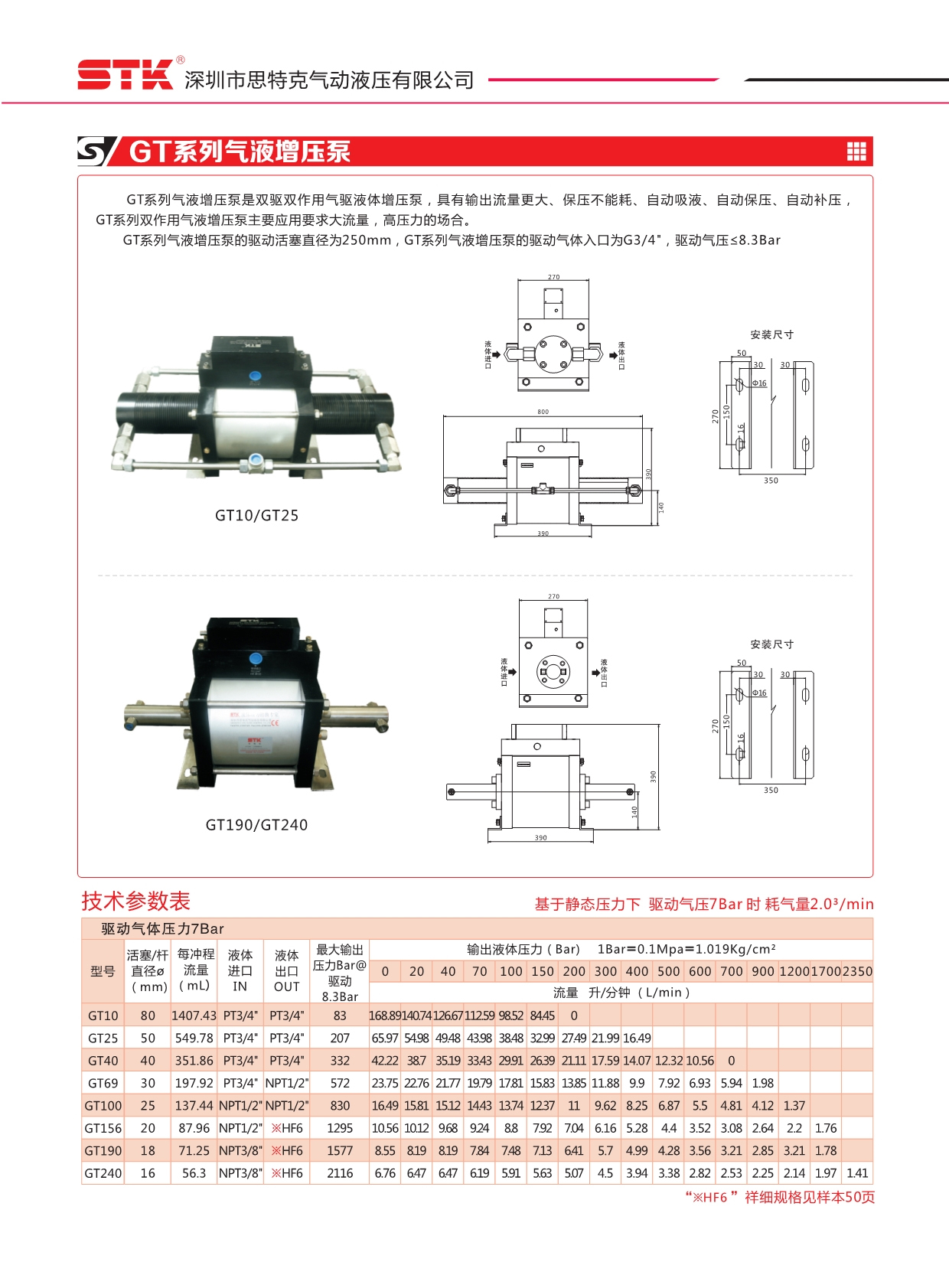

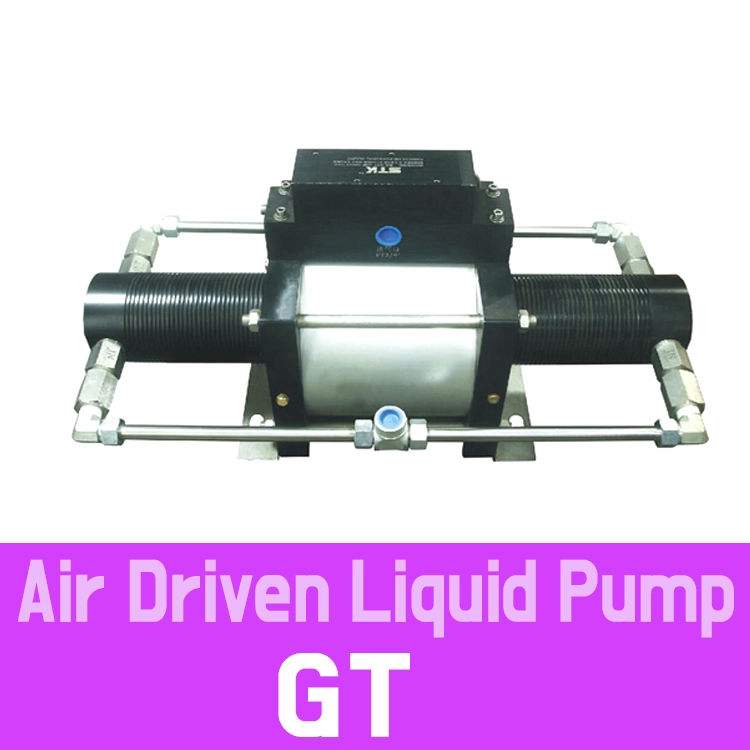

●(double acting) Air Drive Liquid Booster (Fluid=water, oil)

●(double acting) gas flooding booster pump (Fluid=water, oil)

●GT25 (raido=25:1) (at 7bar/ flow=54.98~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=207bar)

●GT40 (raido=40:1) (at 7bar/ flow=35.19~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=332bar)

●GT69 (raido=69:1) (at 7bar/ flow=19.79~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=572bar)

●GT100 (raido=100:1) (at 7bar/ flow=13.74~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=830bar)

●GT156 (raido=156:1) (at 7bar/ flow=8.8~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1295bar)

●GT190 (raido=190:1) (at 7bar/ flow=7.13~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=1577bar)

●GT240 (raido=240:1) (at 7bar/ flow=5.63~0L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water+oil max output pressure=2116bar)
