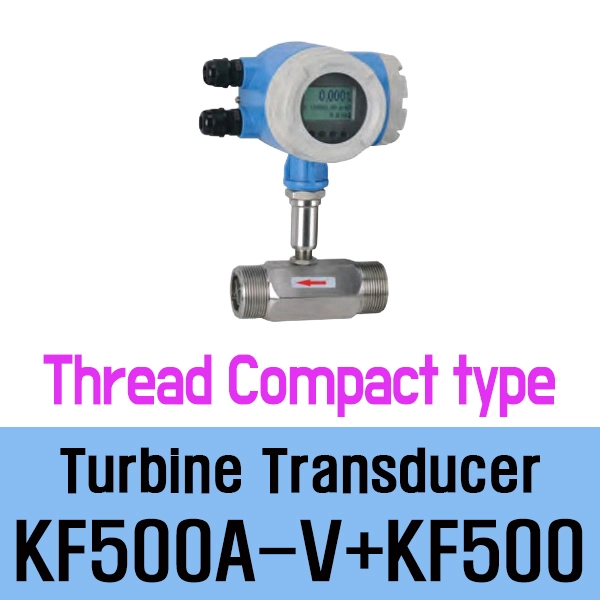

KF500A-V+KF500●(일체형,Thread Compact type)●KF500A-V(KF500AV)●(LCD)Turbine Transducer●(Digital)Turbine Transducer Flowmeter●디지털 터빈 유량계●터빈 플루우 메타●액체 유량계●액체 플루우 메타●(medai=water,oil)●(DIN10~DIN50)●(KIO)

KF500A-V+KF500 카탈로그(영어) KF500 메뉴얼(영어)

●(KF500A-V Thread Compact type + KF500)

Liquid Turbine Transducer

●medai=(Oil,  50CPS + water )

●(power=24VDC) (pressure=2.5MPa) (Cable=5M)

●(thread=male) (material=SUS304) (flow unit=m3/h)

●Digital Flow Indicator output KF500=(4~20mA+RS485, pulse)

●KF500A-V (Thread=PT1 Male)-DN15-1-IT (with  KF500) (csq4125)

(flow=0.4~4m3/h) (errow=1%) (Thread=PT1 Male)

●KF500A-V (Thread=PT1 Male)-DN20-1-IT (with  KF500) (csq4127)

(flow=0.7~7m3/h) (errow=1%)  (Thread=PT1 Male)

●KF500A-V (Thread=PT11/4 Male)-DN25-1-IT (with KF500) (csq4178)

(flow=1~10m3/h) (errow=1%) (Thread=PT11/4  Male)

●KF500A-V (Thread=PT11/2 Male)-DN32-1-IT (with KF500) (csq4513)

(flow=1.6~16m3/h) (errow=1%)  (Thread=PT1 1/2  Male)

●KF500A-V (Thread=PT2  Male)-DN40-1-IT (with KF500) (csq4512)

(flow=2.5~25m3/h) (errow=1%)  (Thread=PT2  Male)

●KF500A-V (Thread=PT2 1/2  Male)-DN50-1-IT

 (with KF500) (csq4129)

(flow=4~40m3/h) (errow=1%) (Thread=PT Male)
