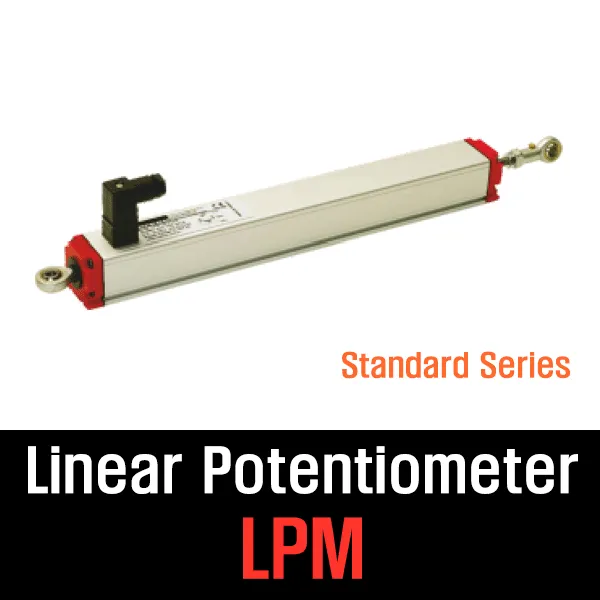

RPM(same LPM)●OPKON Linear potentiometer Standard Type●OPKON 리니어 포텐쇼 메타●OPKON Position Sensor●OPKON 포텐숀 메타●(STROKE=50mm~600mm)●(IP65)●(OPKON)

LPM 카탈로그

●strok=(50mm~600mm) ●linearity=(0.05%) ●repeatability=(0.01mm)

●resolution=(infinite) ●output=(5kohm, 10kohm)

●Pormissible applied volyang=(DC28V)

●Displacement speed=(5m/s)

●Long mechanical life=(100 million cycles)

●(output=5 Kohm, Standard Type) Linear potentiometer

●RTM-50-D5K-C2 (LPM-50-D5K-C2) (DME0128)

●RTM-100-D5K-C2 (LPM-100-D5K-C2) (DME0129)

●RPM-150-D5K-C2 (LTM-150-D5K-C2) (DME0130)

●RPM-200-D5K-C2 (LTM-200-D5K-C2) (DME0131)

●RPM-250-D5K-C2 (LTM-250-D5K-C2) (DME0132)

●RPM-300-D5K-C2 (LTM-300-D5K-C2) (DME0133)

●RPM-350-D5K-C2 (LTM-350-D5K-C2) (DME0134)

●RPM-400-D5K-C2 (LTM-400-D5K-C2) (DME0135)

●RPM-500-D5K-C2 (LTM-500-D5K-C2) (DME0136)

●RPM-600-D5K-C2 (LTM-600-D5K-C2)

●(output=10 Kohm, Standard Type) Linear potentiometer

●RTM-100-D10K-C2 (LPM-100-D5K-C2) (csq4955 )
