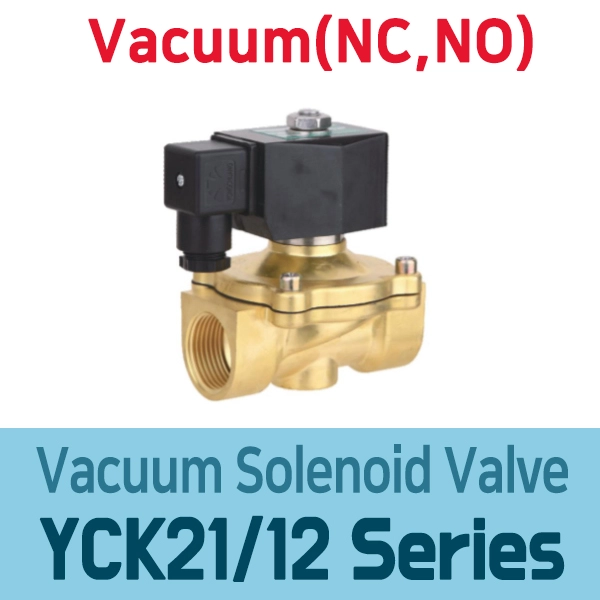

(UL인증)YCK21(NC)●YCK12(NO)●2/2way Normally closed Vacuum solenoid valve ●2/2way Normally open Vacuum solenoid valve ●진공 밸브●바큠 밸브●진공 솔레노이드 밸브●바큠 솔레노이드 밸브●(SB256,SB257)●(G3/8 F~G1 F)●(YONG,DME)

관련자료 (CLICK)

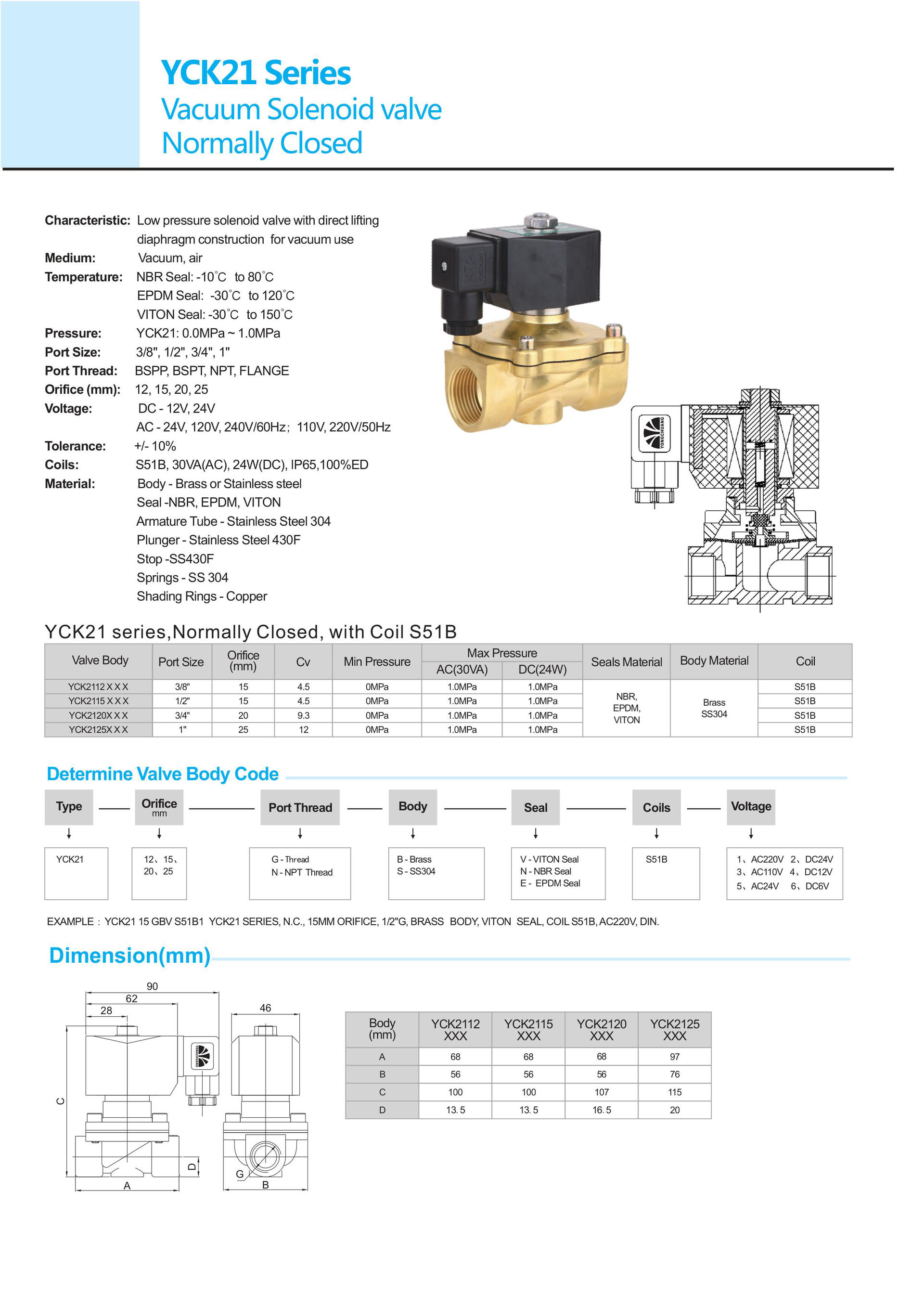

●(2/2way, NC , AC) vacuum solenoid valve

(vacuum solenoid valve Normally closed)

(seal=VITON) (pressure=-0.1~1Mpa) (body=bress)

●YCK21-10-GBV-S51B-1 (AC220V) (G3/8F) (csq3669)

●YCK21-15-GBV-S51B-1 (AC220V) (G1/2F) (csq4572)

●YCK21-20-GBV-S51B-1 (AC220V) (G3/4F) (csq3670)

●YCK21-25-GBV-S51B-1 (AC220V) (G1 F) (csq4573)

●(2/2way, NC, DC) vacuum solenoid valve

(seal=VITON) (pressure=-0.1~1Mpa) (body=bress)

●YCK21-10-GBV-S51B-2 (DC24V) (Orifice=10mm)(G3/8F)

●YCK21-15-GBV-S51B-2 (DC24V) (Orifice=15mm) (G1/2F)

●YCK21-20-GBV-S51B-2 (DC24V) (Orifice=20mm) (G3/4F)

●YCK21-25-GBV-S51B-2 (DC24V) (Orifice=25mm) (G1 F) (csq4608)

●(2/2way, NO, AC) vacuum solenoid valve

(vacuum solenoid valve Normally open)

(seal=VITON) (pressure=-0.1~1Mpa) (body=bress)

●YCK12-10-GBV-S51B-1 (AC220V)(Orifice=10mm)(G3/8F)

●YCK12-15-GBV-S51B-1 (AC220V(Orifice=15mm) (G1/2F)

●YCK12-20-GBV-S51B-1 (AC220V(Orifice=20mm) (G3/4F)

●YCK12-25-GBV-S51B-1 (AC220V) (Orifice=25mm) (G1 F)

●(AC Only Coil) (SB055**AC) (DIN43650A)

●(AC Only Coil) (SB260**AC) (2wire of all blue color)

●(AC Only Coil) (SB055**DC) (DIN43650A)

●(AC Only Coil) (SB260**DC) (2wire of all blue color)
