YCFP21(YCFP11)●2/2way NC PTFE anti corrosion solenoid valve●테프론 솔레노이드 밸브●테프론 솔 밸브●내부식성 솔레노이드 밸브●내부식성 밸브​●(body=테프론)​●(seal=테프론)●(1.5bar)●(3bar)●(G1/8 F~G1/2 F)●(YONG,DME)

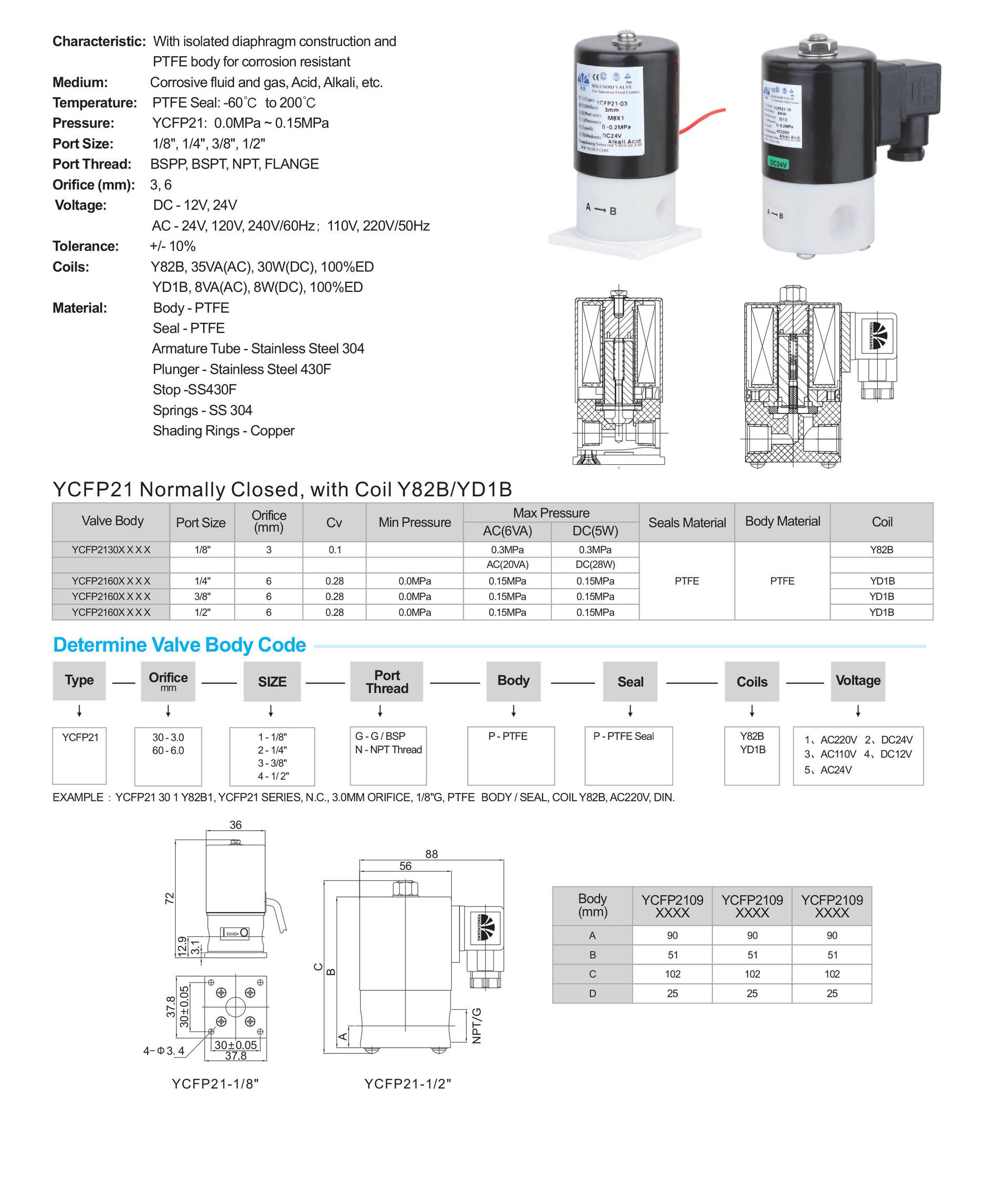

YCFP21 카탈로그

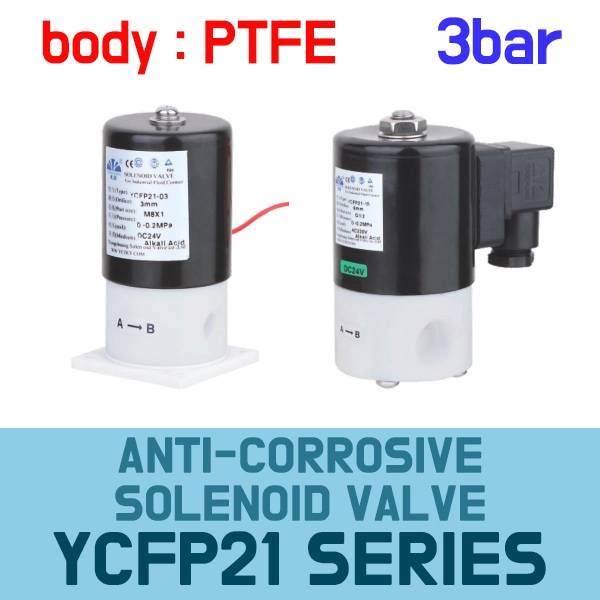

●(2/2way, NC, wire) Direct Acting anti corrosion isolation valve

(body,seal=PTFE) (pressure=0~3bar) (orifice=3mm)

●YCFP21-30-1-G-P-P-Y82B-1-(AC220V) (G1/8 F) (csq4610)

●YCFP21-30-1-G-P-P-Y82B-2-(DC24V) (G1/8 F) (csq4611)

●(2/2way, NC, wire) Direct Acting anti corrosion isolation valve

(body,seal=PTFE) (pressure=0~1.5bar) (orifice=3mm)

●YCFP21-30-2-G-P-P-Y82B-1-(AC220V) (G1/4 F) (csq4612)

●YCFP21-30-2-G-P-P-Y82B-2-(DC24V) (G1/4 F) (csq4613)

●(2/2way, NC, DIN) Direct Acting anti corrosion isolation valve

(body seal=PTFE) (pressure=0~1.5bar) (orifice=6mm)

●YCFP21-60-2-G-P-P-YD1B-1-(AC220V) (G1/4 F) (csq4614)

●YCFP21-60-2-G-P-P-YD1B-2-(DC24V) (G1/4 F) (csq4615)

●(2/2way, NC, DIN) Direct Acting anti corrosion isolation valve

(body seal=PTFE) (pressure=0~1.5bar) (orifice=6mm)

●YCFP21-60-3-G-P-P-YD1B-1-(AC220V) (G3/8 F)

●YCFP21-60-3-G-P-P-YD1B-2-(DC24V) (G3/8F)

●YCFP21-60-3-G-P-P-YD1B-3-(AC110V) (G3/8 F)

●(2/2way, NC, DIN) Direct Acting anti corrosion isolation valve

(body seal=PTFE) (pressure=0~1.5bar) (orifice=6mm)

●YCFP21-60-4-G-P-P-YD1B-1-(AC220V) (G1/2 F) (csq4617)

●YCFP21-60-4-G-P-P-YD1B-2-(DC24V) (G1/2 F) (csq4616)

●Medium=(corrosive, fluid, gas, Acid, Alkail, etc)

●화학약품라인 ●의료기 ●시험기기 ●내부식성이필요한라인
