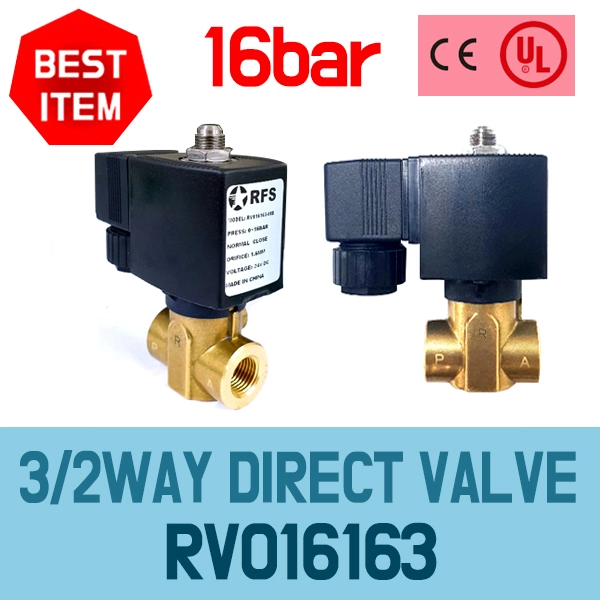

RV016163●3/2way DIRECT Solenoid valve ●RFS 고압 솔레노이드 밸브●RFS 고압 솔 밸브●(media=air water,oil)●(16bar)(20bar)●(Coil= sb086)●(EV310AF,Danfoss)●(16bar)(20bar●(G1/4 F)●(RFS)

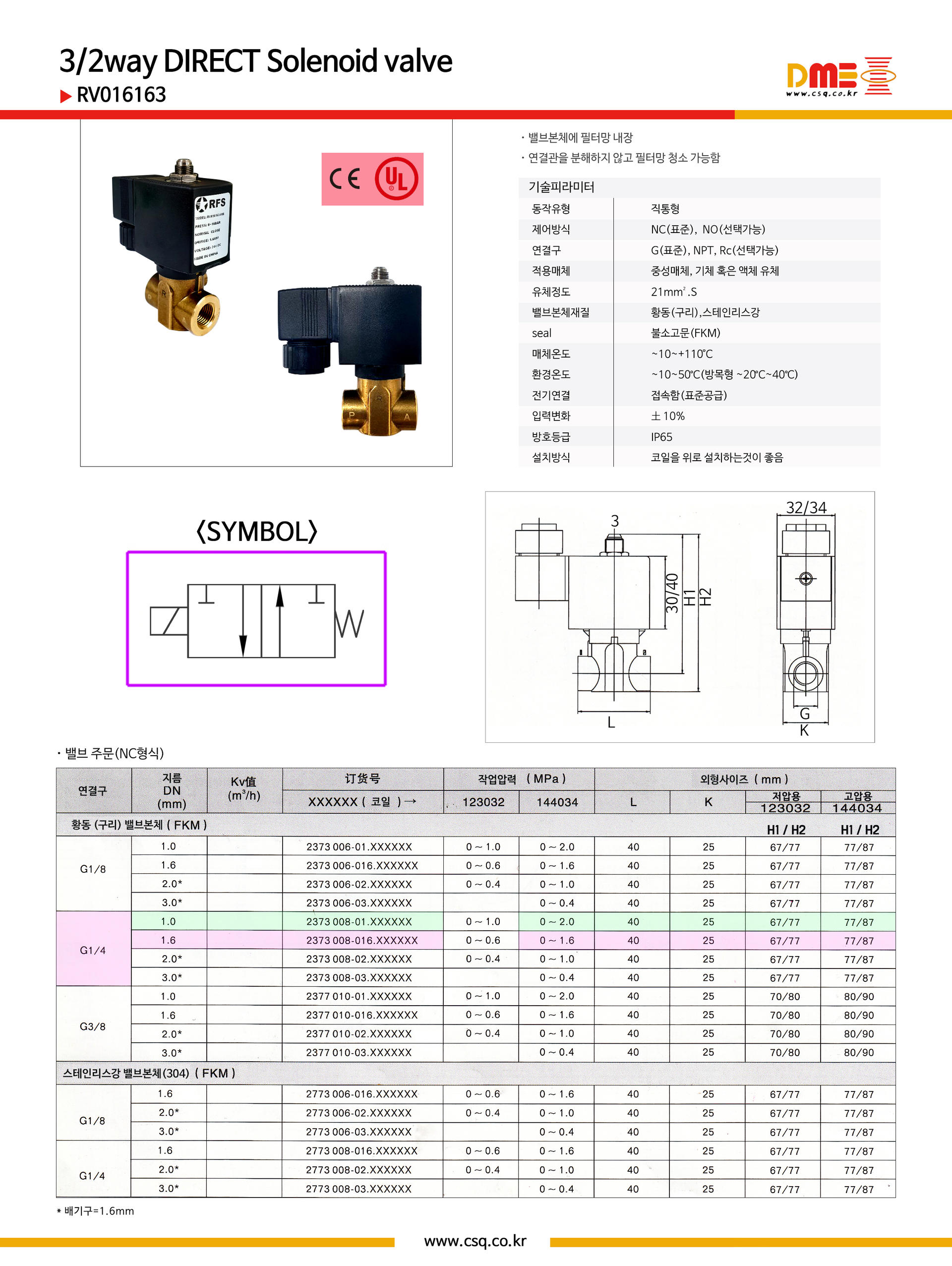

RV016163 카탈로그

●(3/2way, NC, DC24V) Direct Solenoid valve (0~16bar)

(body=bress) (seal=VITON) (media=air, water, oil)

●2373008-016.144034-(orifice=1.6mm)-(1.6Mpa)-DC24V (G1/4 F)  (RV016163-08B-DC24V) (csq4591)

●(3/2way, NC, AC220V) Direct  Solenoid valve (0~16bar)

(body=bress) (seal=VITON) (media=air, water, oil)

●2373008-016.144034-(orifice=1.6mm)-(1.6Mpa)-AC220V (G1/4 F) (RV016163-08B-AC220V) (csq4625)

●(3/2way, NC, DC24V) Direct  Solenoid valve (0~20bar)

(body=bress) (seal=VITON) (media=air, water, oil)

●2373008-01.144034-(orifice=1mm)-(2Mpa)-DC24V (G1/4 F) (csq4626)

●(3/2way, NC, AC220V) Direct  Solenoid valve (0~20bar)

(body=bress) (seal=VITON) (media=air, water, oil)

●2373008-01.144034-(orifice=1mm)-(2Mpa)-AC220V (G1/4 F) (csq4627)

1440 Coil (nomal close)

●1440-DC12V (DME4531)

●1440 -DC24V  (DME4530)

●1440 -AC110V

●1440 -AC220V (DME5759 )

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)
