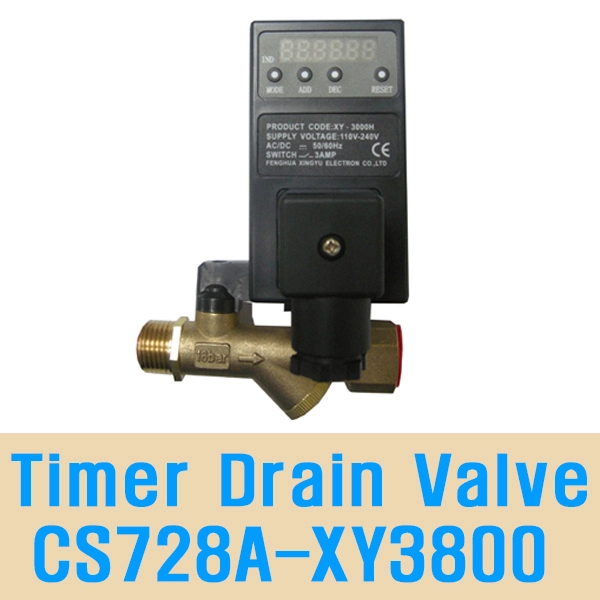

CS728A-15A-XY-3800●CS728A15A with XY3800●2/2way NC Timer Drain Valve●RFS Automatic Drain Valve●RFS 타이머 드레인밸브●RFS 자동 드레인밸브●RFS 오토 드레인밸브●RFS 타임 드레인밸브●RFS 타이마 드레인밸브●(G1/2 F)(G1/2 M)●(0~16bar)●(RFS) 복제

CS Series 카탈로그 CS Series 코드번호

XY-3800H & XY-3800L 카탈로그 & 매뉴얼

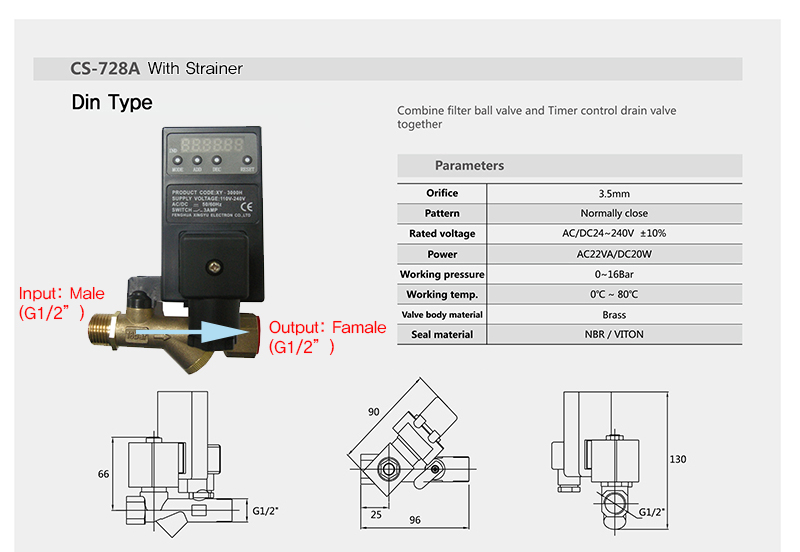

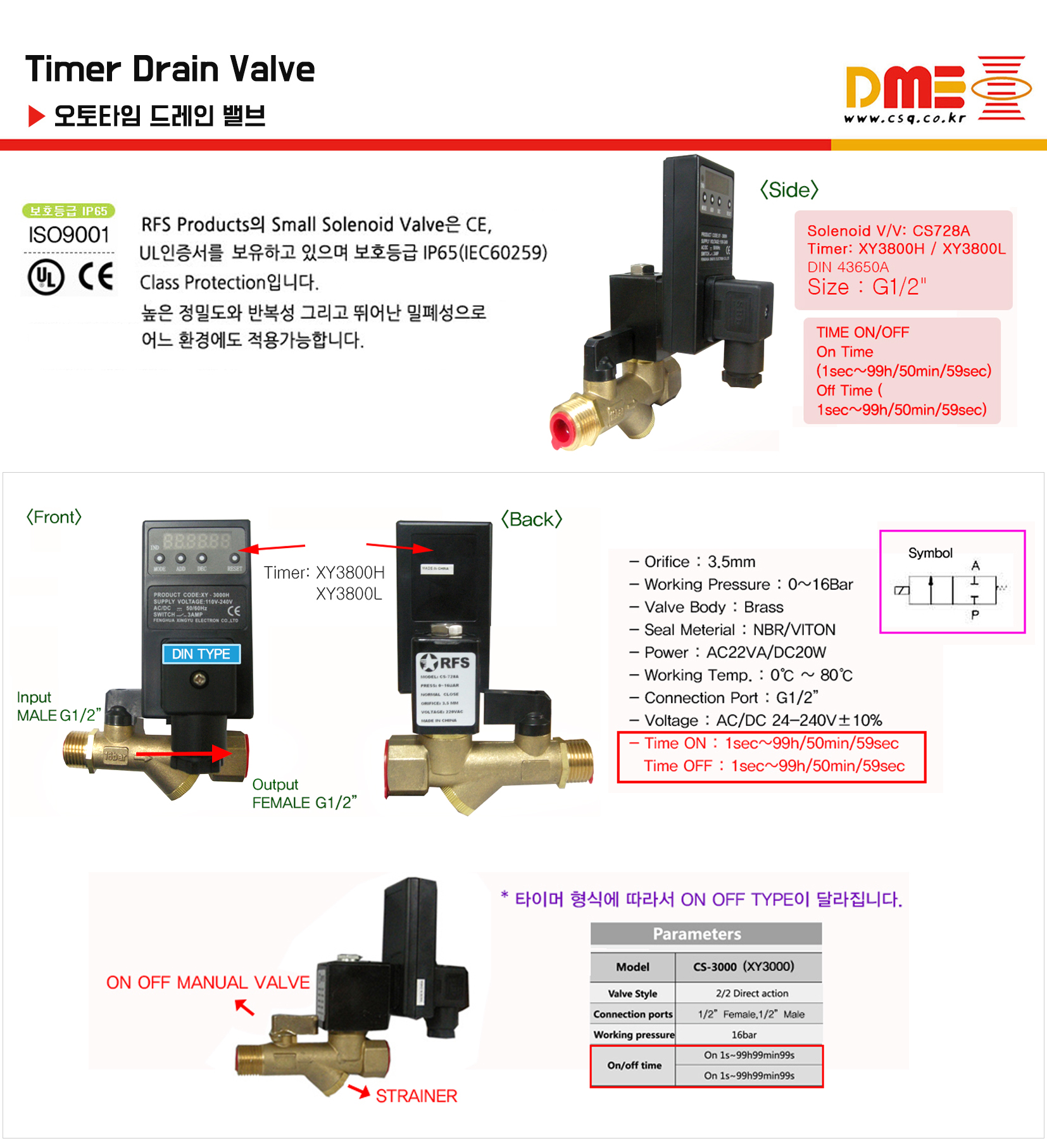

●(2/2way, NC, bress) Automatic drain valve

(CS728A-15A with XY-3800H, XY-3800L)

(pressure=0~16bar) (orifice=3.5mm) (temp=0~80ºC)

(input=G1/2 M) (output=G1/2 F)

●CS728A-15A-(XY-3800H)--2D-AC220V (G1/2 M)(G1/2 M)(DME7179)

●CS728A-15A-(XY-3800H)-1D-AC110V (G1/2 M) (G1/2 M)(DME8255)

●CS728A-15A-(XY-3800L)--8D-DC24V (G1/2 M) (G1/2 M)(DME8027)

●(only, 2/2way, NC, bress, Solenoid valve) (CS728A-15A)

(pressure=0~16bar) (orifice=3.5mm) (temp=0~80ºC)

(input=G1/2 M) (output=G1/2 F)

●CS728A-15A-2D-AC220V (G1/2 M) (G1/2 F) (DME7289)

●CS728A-15A-8D-DC24V (G1/2 M) (G1/2 F) (DME7290)

●CS728A-15A-1D-AC110V (G1/2 M) (G1/2 F) (DME8256)

●(only Timer  XY3800H or  XY-3800L)

●XY-3800H(SB237)-(110~240V AC/DC)-(50~60Hz) (DME5427)

(On Time=1sec~99h/50min/59sec)

(Off Time=1sec~99h/50min/59sec)

●XY-3800L(SB237)-(7~36V/AC DC)-(50~60Hz) (DME2048)

(On Time=1sec~99h/50min/59sec)

(Off Time=1sec~99h/50min/59sec)
