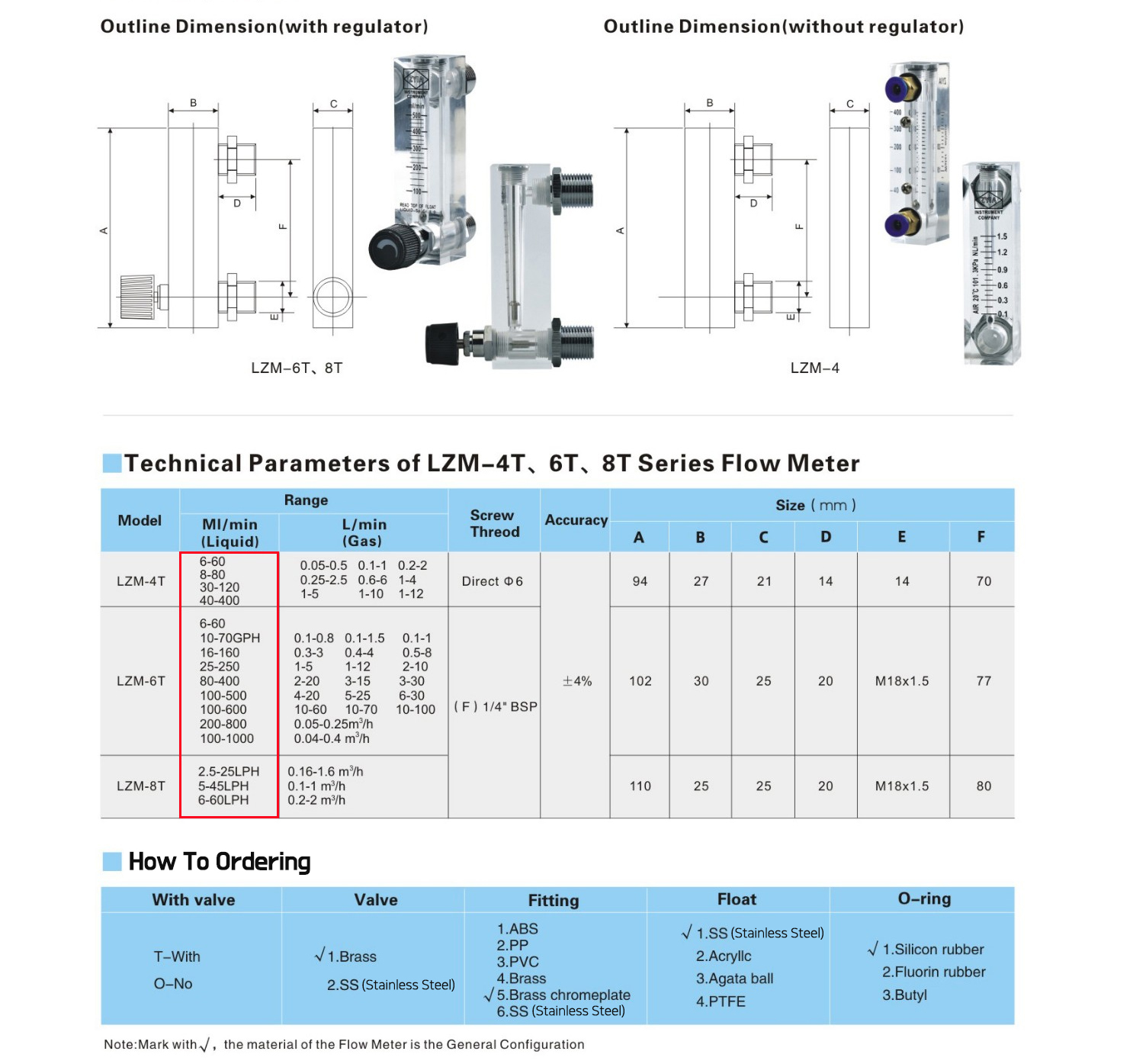

LZM-4T,6T,8T 카탈로그

●(Liquid) Flow meter with regulator (94mm, 70mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-4T-2611 (6~60 Ml/min) (Direct 6mm hose )

●LZM-4T-2611 (8~80 Ml/min) (Direct 6mm hose )

●LZM-4T-2611 (30~120 Ml/min) (Direct 6mm hose)

●LZM-4T-2611 (40~400 Ml/min)-(SUS316)

(Direct 6mm hose) (csq4734)

●(Liquid) Flow meter with regulator (102mm, 77mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-6T-2611 (6~60 Ml/min) (1/4 BSPT F )

●LZM-6T-2611 (10~70 GPH) (1/4 BSPT F )

●LZM-6T-2611 (16~160 Ml/min) (1/4 BSPT F)

●LZM-6T-2611 (25~250 Ml/min) (1/4 BSPT F )

●LZM-6T-2611 (80~400 Ml/min) (1/4 BSPT F )

●LZM-6T-2611 (100~500 Ml/min) (1/4 BSPT F)

●LZM-6T-2611 (100~600Ml/min ) (1/4 BSPT F)

●LZM-6T-2611 (200~800Ml/min) (1/4 BSPT F)

●LZM-6T-2611 (100~1000 Ml/min)-(SUS316)

(1/4 BSPT F) (csq4735)

●(Liquid) Flow meter with regulator (110mm, 80mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-8T-2611 (2.5~25 LPH) (1/4 BSPT F)

●LZM-8T-2611 (5~45 LPH) (1/4 BSPT F)

●LZM-8T-2611 (6~60 LPH)-(SUS316) (1/4 BSPT F) (csq1363)

●1Gal/min=3.78 L/min

●1Gph=3.78/60= 0.063 L/min

●1SCFH( ft³ /60 )=1.698 L/min

●1SCFM( ft³  )=28.3 L/min

●1㎥/h= 1,000L/h = 16.667L/min

●1루베= 1,000L=1,000,000ml=1,000,000CC

●1LPH(1L/h)=60LPM(60L/min)=60,000CC/mim

■(RMA) (RMB) (RMC)
