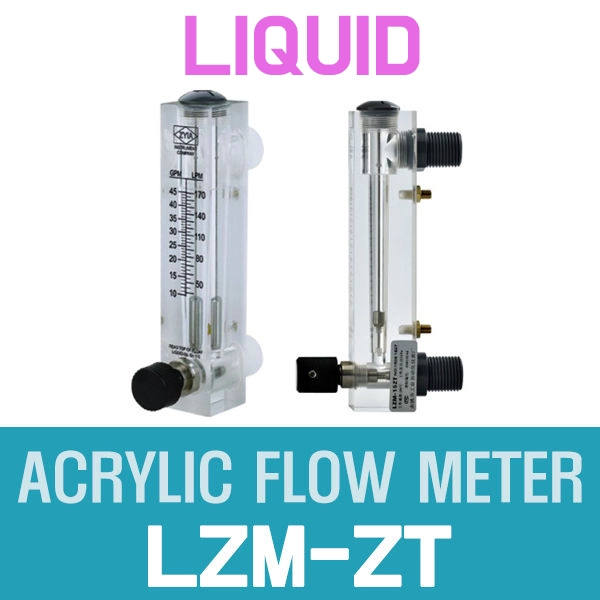

(Liquid GPM,LPM,LPH)LZM-ZT●LZM-15ZAT●LZM-15ZT●LZM-25ZT●(LZM15ZAT)(LZM15ZT)(LZM25ZT)●Liquid Flow Meter●Acrylic Flow Meter●판넬 밸브식 아크릴 유량계●리퀴드 플로우 메타●(1/4~BSP1" )●(15~45GPM, 50~170LPM)●(KINGTAI,KIO,DME)

LZM-ZT 카탈로그

●(LPH) Liquid  Flow meter with regulator (157mm, 110mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-15ZAT-611 (15~150LPH)-(SUS316) (1/2 BSPT M) (csq4737)

●(LPH) Liquid  Flow meter with regulator (175mm, 127mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-15ZT-611 (10~100LPH) (1/2 BSPT M )

●LZM-15ZT-611 (16~160LPH) (1/2 BSPT M )

●LZM-15ZT-611 (25~250LPH) (1/2 BSPT M )

●(GPM+LPM) Liquid  Flow meter with regulator (175mm, 127mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-15ZT-611 (0.1~1GPM, 0.5~4LPM) (1/2 BSPT M )

●LZM-15ZT-611 (0.2~2GPM, 1~7LPM)-(SUS316)

(1/2 BSPT M ) (csq4731) (same z-300KT2)

●LZM-15ZT-611 (0.3~3GPM, 1~11LPM) (1/2 BSPT M )

●LZM-15ZT-611 (0.5~5GPM, 2~18LPM) (1/2 BSPT M)

●(GPM+LPM) Liquid  Flow meter with regulator (234mm, 160mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-25ZT-611 (2~10GPM, 5~35LPM)-(SUS316) (1 BSPT M ) (csq1355)

●LZM-25ZT-611 (4~14GPM, 10~50LPM) (1 BSPT M )

●LZM-25ZT-611 (6~20GPM, 20~70LPM) (1 BSPT M )

●LZM-25ZT-611 (10~35GPM, 30~130LPM) (1 BSPT M )

●LZM-25ZT-611 (10~40GPM, 3~150LPM) (1 BSPT M )

●LZM-25ZT-611 (15~45GPM, 50~170LPM)-(SUS316)

(1 BSPT M )(csq4739)

●1Gal/min=3.78 L/min

●1Gph=3.78/60= 0.063 L/min

●1SCFH( ft³ /60 )=1.698 L/min

●1SCFM( ft³  )=28.3 L/min

●1㎥/h= 1,000L/h = 16.667L/min

●1루베= 1,000L=1,000,000ml=1,000,000CC

●1LPH(1L/h)=60LPM(60L/min)=60,000CC/mim
