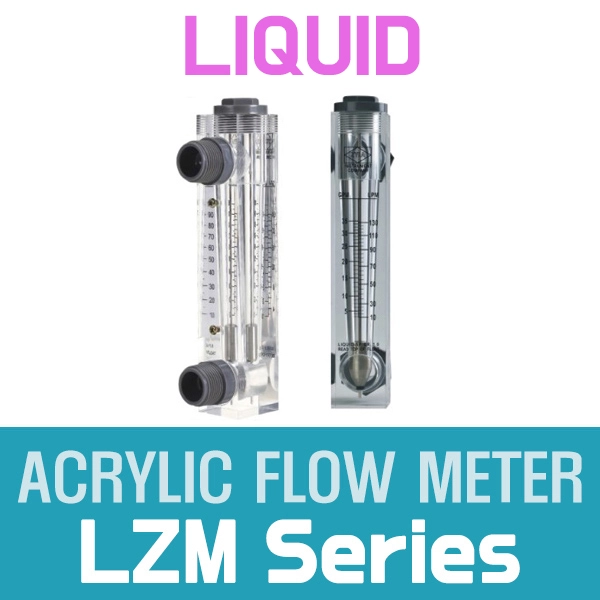

(Liquid,GPM,LPM)●LZM-15●LZM-20●LZM-25●LZM-40●(LZM15)(LZM20)(LZM25)(LZM40)●Liquid Flow meter●Acrylic Flow Meter●판넬 밸브식 아크릴 유량계●액체 유량계●KIO 리퀴드 플로우 메타●액체 플루우 메타●1/2~11/2"M●(0.1~80GPM)●(KINGTAI,KIO,KIDME)

LZM Series 카탈로그

●(Liquid) Flow meter with regulator (216mm,165mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-15-611 (0.1~1GPM, 0.5~4LPM) (1/2 BSPT M )

●LZM-15-611 (0.2~2GPM, 0.8~8LPM) (1/2 BSPT M )

●LZM-15-611 (0.3~3GPM, 1~11LPM) (1/2 BSPT M )

●LZM-15-611 (0.5~5GPM, 2~18LPM) (1/2 BSPT M )

●LZM-15-611 (1~7GPM, 2~28LPM) (1/2 BSPT M )

■LZM-15-611 (1.5~9GPM, 400~2000LPH) (1 BSPT M )

●(Liquid) Flow meter with regulator (233mm,165mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-20-611 (2~10GPM, 8~40LPM) (3/4 BSPT M )

●LZM-20-611 (2~16GPM, 8~60LPM) (3/4 BSPT M )

●LZM-20-611 (2~20GPM, 8~80LPM) (3/4 BSPT M )

●(Liquid) Flow meter with regulator (253mm,175mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-25-611 (1.5~15GPM, 6~60LPM) (1 BSPT M )

●LZM-25-611 (3~13GPM, 10~50LPM) (1 BSPT M )

●LZM-25-611 (4~24GPM, 10~100LPM) (1 BSPT M )

●LZM-25-611 (5~35GPM, 10~130LPM) (1 BSPT M )

●LZM-25-611 (5~45GPM, 20~170LPM) (1 BSPT M )

●(Liquid) Flow meter with regulator (265mm,170mm) (accuracy=4%)

(valve=sus316) (fitting=sus316) (float=sus316) (o-ring=silicon)

●LZM-40-611 (10~45GPM, 40~170LPM) (11/2 BSPT M )

●LZM-40-611 (15~50GPM, 60~200LPM) (11/2 BSPT M )

●LZM-40-611 (10~60GPM, 60~240LPM) (11/2 BSPT M )

●LZM-40-611 (20~70GPM, 80~260LPM) (11/2 BSPT M )

●LZM-40-611 (20~80GPM, 80~300LPM) (11/2 BSPT M )

●1Gal/min=3.78 L/min

●1Gph=3.78/60= 0.063 L/min

●1SCFH( ft³ /60 )=1.698 L/min

●1SCFM( ft³  )=28.3 L/min

●1㎥/h= 1,000L/h = 16.667L/min

●1루베= 1,000L=1,000,000ml=1,000,000CC

●1LPH(1L/h)=60LPM(60L/min)=60,000CC/mim

■(RMA) (RMB) (RMC)
