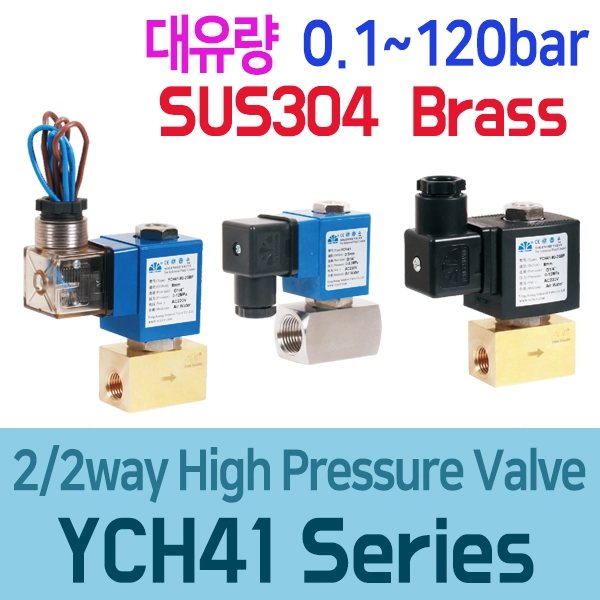

YCH41●2/2way SUS304 NC SUS High pressure solenoid valve●스텐레스 고압 솔레노이드 밸브●스텐 고압 밸브●스텐 고압 솔 밸브●air,water,oil●(orifice=9mm)●(pressure=0.1~120bar)●(G1/4~G1/2 F)●(YONG,DME)

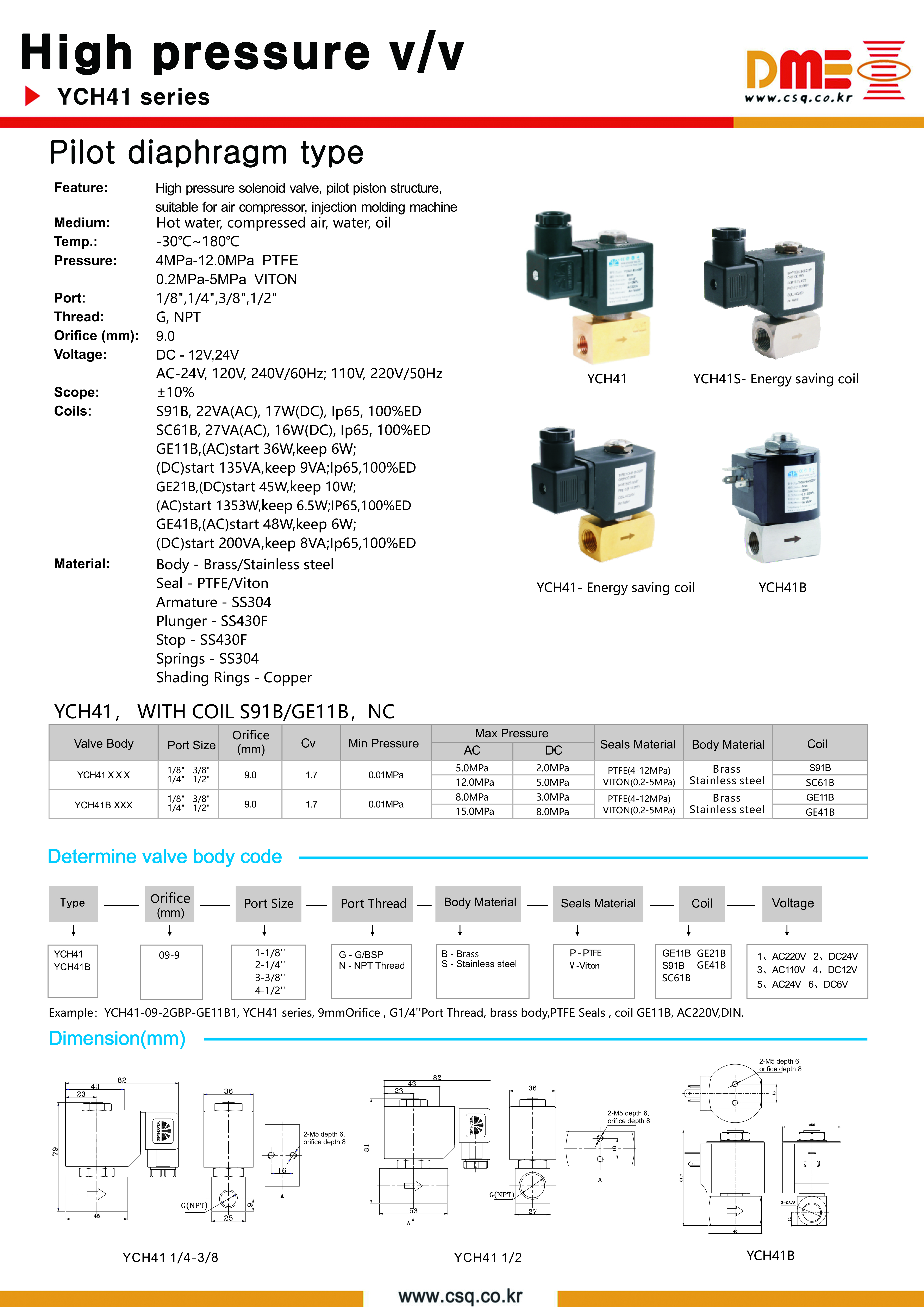

YCH41 카탈로그

●(2/2way,NC,SUS) High pressure solenoid valve (AC220v)

(pressure=mine 4Mpa~max 12Mpa)

(seal=PTFE) (temp=-30~180C) (body=SUS304)

(Medum=Hot water, air, water, oil)

●YCH41-9-4-G-S-P-(GE21B)-1-(AC220V) (G1/2 F) (csq5001)

 (orifice=9mm) (pressure=min 3Mpa~max 12Mpa)

●YCH41-9-3-G-S-P-(GE21B)-1-(AC220V) (G3/8 F) (csq4800)

 (orifice=9mm) (pressure=min 3Mpa~max 12Mpa )

●YCH41-9-2-G-S-P-(GE21B)-1-(AC220V) (G1/4 F)

 (orifice=9mm) (pressure=min 3Mpa~max 12Mpa)

●(2/2way,NC,SUS) High pressure solenoid valve (DC24V)

(pressure=mine 0.01Mpa~max 5Mpa)

(seal=Viton) (temp=30~180 C) (body=SUS304)

(Medum=Hot water, air, water, oil)

●YCH41-9-4-G-S-H-N(GE21B)-2 (DC24V) (G1/2 F) (csq4801)

 (orifice=9mm) (pressure=min 0.01Mpa~max 5Mpa )

●YCH41-9-3-G-S-H-N(GE21B)-2-(DC24V) (G3/8 F)

 (orifice=9mm) (pressure=min 0.01Mpa~max 5Mpa)

●YCH41-9-2-G-S-H-N(GE21B)-2-(DC24V) (G1/4 F) (csq4886)

 (orifice=9mm) (pressure=min 0.01Mpa~max 5Mpa)

●Only coil

●GE21B-AC220V (csq4929)

(pressure=mine 0.01Mpa~max 12Mpa, YCH41, 모든모델 적용)

●GE21B-DC24V (csq4930)

(pressure=mine 0.01Mpa~max 5Mpa,  YCH41, 모든 모텔 적용)

●Only coil

●GE11B-AC220V (csQ5223)

(120bar, YCH41-9-2, only port Thread G1/4 F 모텔만적용)

●GE11B-DC24V (csq5224)

(50bar, YCH41-9-2, only port Thread G1/4 F 모텔만 적용)
