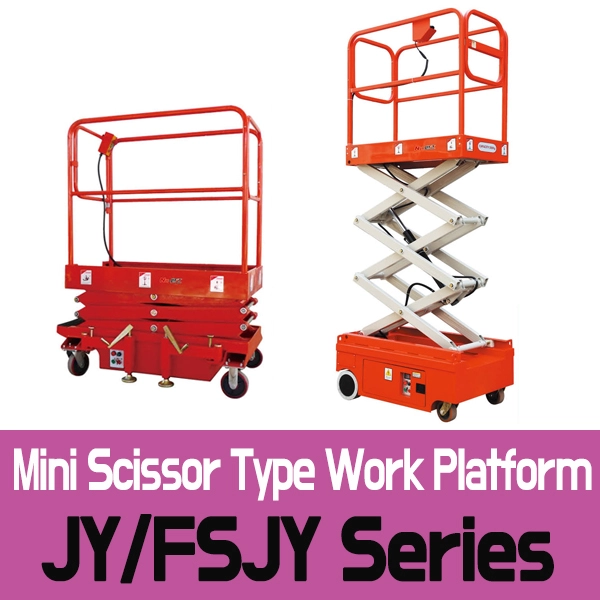

JY317●JY330●JY339●FSJY330●FSJY339●Mini Scissor Type Work Platform●Mini Self-propelled Scissor Type Work PlatformA●(고정식 2단=300kg,1700mm,520mm),(3단=300kg,3000mm,630mm),(4단=300kg,3900mm,700mm)●(LIFT,DME)

관련자료 (CLICK)

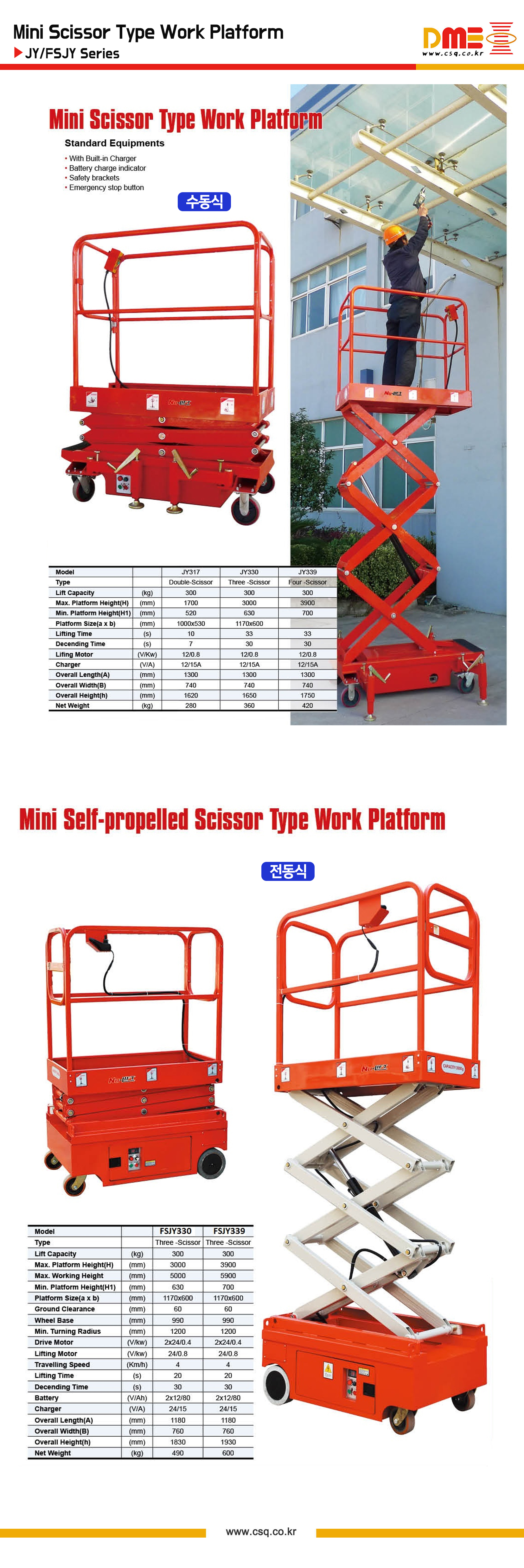

●(Double scissr, 2단 리프트) Mini Scissor Type Work Platform

●JY317-(300kg)-(1700mm)-502mm)

(Lift capacity=300Kg)

(max Height=1700mm) (min Height=520mm)

(Platform=1000 x 530mm)

(Net weight=280kg)

●(Three scissor, 3단 리프트) Mini Scissor Type Work Platform

●JY330-(300kg)-(3000mm)-(630mm)

(Lift capacity=300Kg)

(Max Height=3000mm) (Min Height=630mm)

(Platform=1170 x 600kg)

(Net weight=360kg)

●(Four scissor, 4단 리프트) Mini Scissor Type Work Platform

●JY330-(300kg)-(3000mm)-(630mm)

(Lift capacity=300Kg)

(Max Height=3900mm) (Min Height=700mm)

(Platform=?)

(Net weight=420kg)

●(Three scissor, 3단) Mini  self propelled Scissor Type Work Platform

●FSJY330-(300kg)-(MPH3000mm)-(MWH=5000mm)--(MPL 630mm)

(Lift capacity=300Kg) (Platform) (Net weight=490kg)

(Max Platform Height=3900mm)

(Max woking Height=3900mm)

(Min Platform Height=700mm)

(Ground clearance=60mm)

(wheel Base=990mm)

(Min,Turning Radius=1200mm)

(Net weight=490kg)

●(Three scissor, 3단) Mini  self propelled Scissor Type Work Platform

●FSJY339-(300kg)-(MPH3000mm)-(MWH=5000mm)--(MPL 630mm)

(Lift capacity=300Kg)

(Max Platform Height=3900mm)

(Max woking Height=5900mm)

(Min Platform Height=700mm)

(Ground clearance=60mm)

(wheel Base=990mm)

(Min,Turning Radius=1200mm)

(Net weight=490kg)
