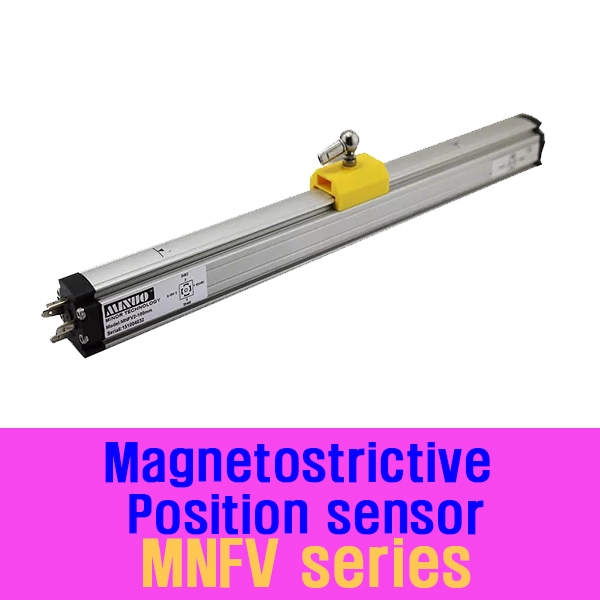

MNFV1●MNFV2●(output=analog)●Magnetostrictive Position Sensor●magnetostrictive linear displacement sensors●비접촉식 포텐션메타●비접촉식 포지션센서●비접촉식 엔코더●비접촉식 포지션센서(same LPH)●(stroke=100mm~3,000mm)(MIN,DME)

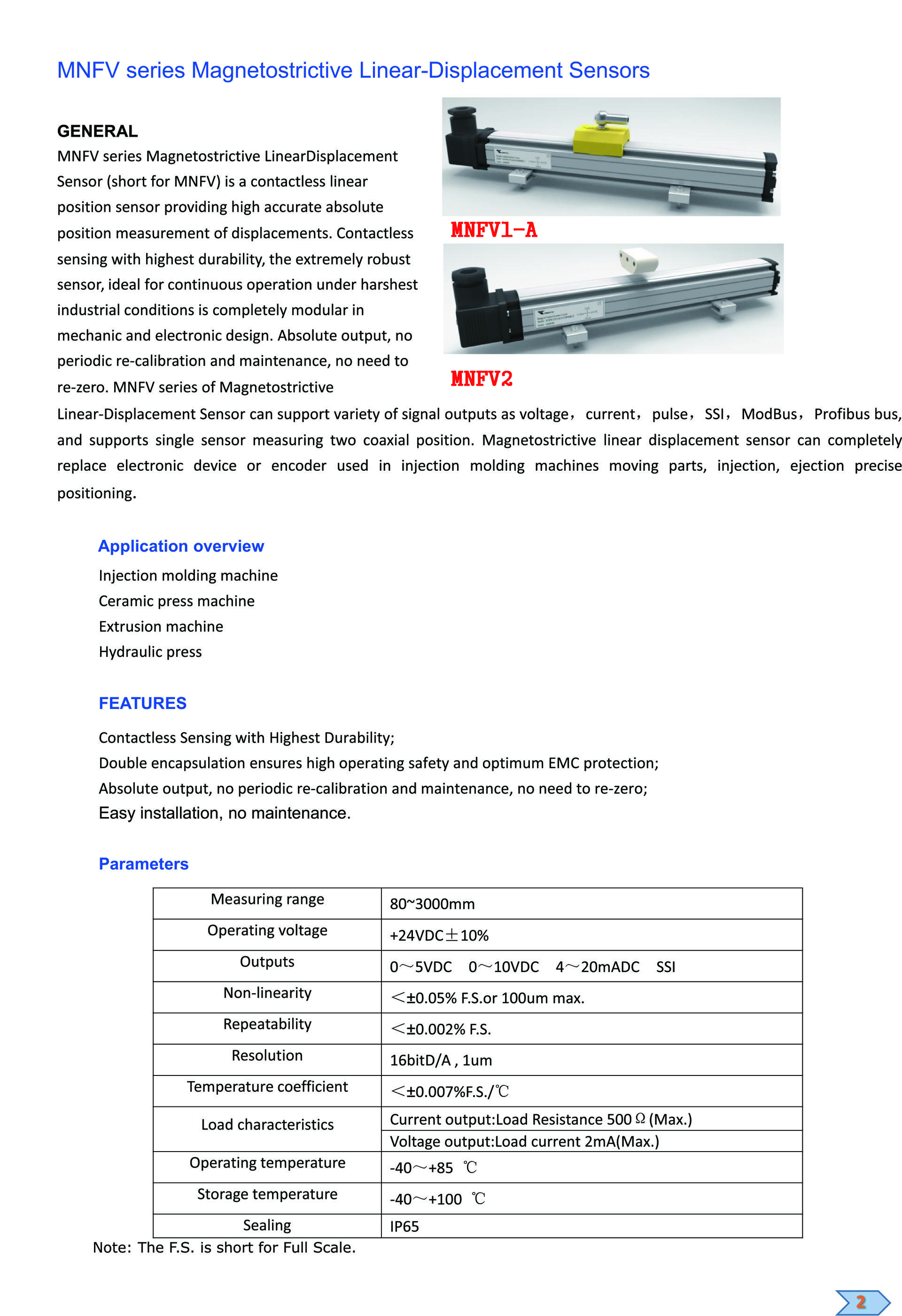

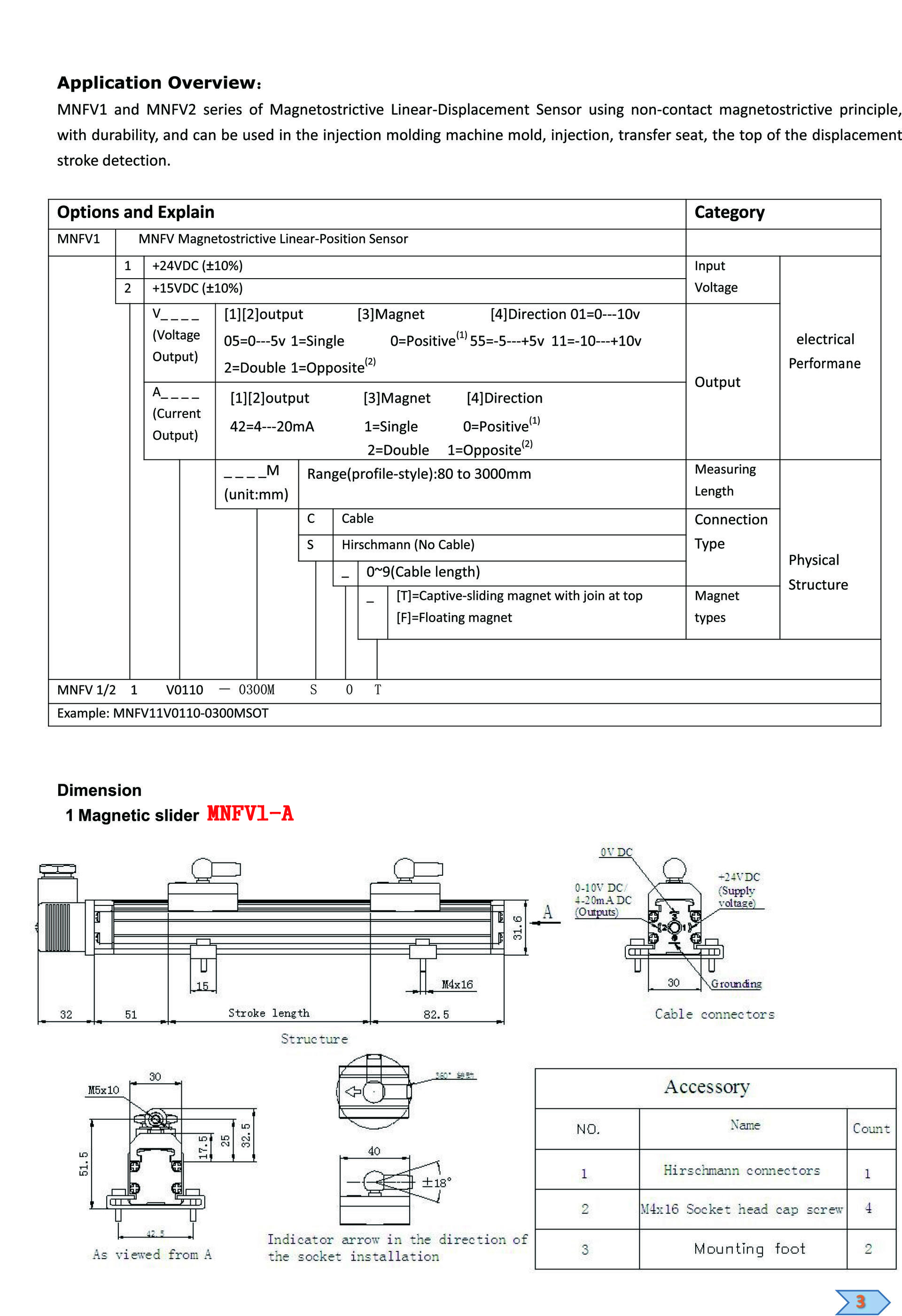

                                                   MNFV series 카탈로그

●stroke=(80mm~3,000mm)

●Resolution=(16bit)

●repeatability=(0.05mm)

●supply power=(24VDC)

●output=(V1=0~5V) (V2=0~10V) (A2=4~20mA)

●magnetostrictive linear displacement sensors (Magnetic slider)

(DIN43650A) (supply power=DC24V) (output=4~20mA)

● MNFV1-A2-(stroke=600mm) (csq4823)

● MNFV1-A2-(stroke=500mm) (csq4825) (재고유)

● MNFV1-A2-(stroke=3,000mm)

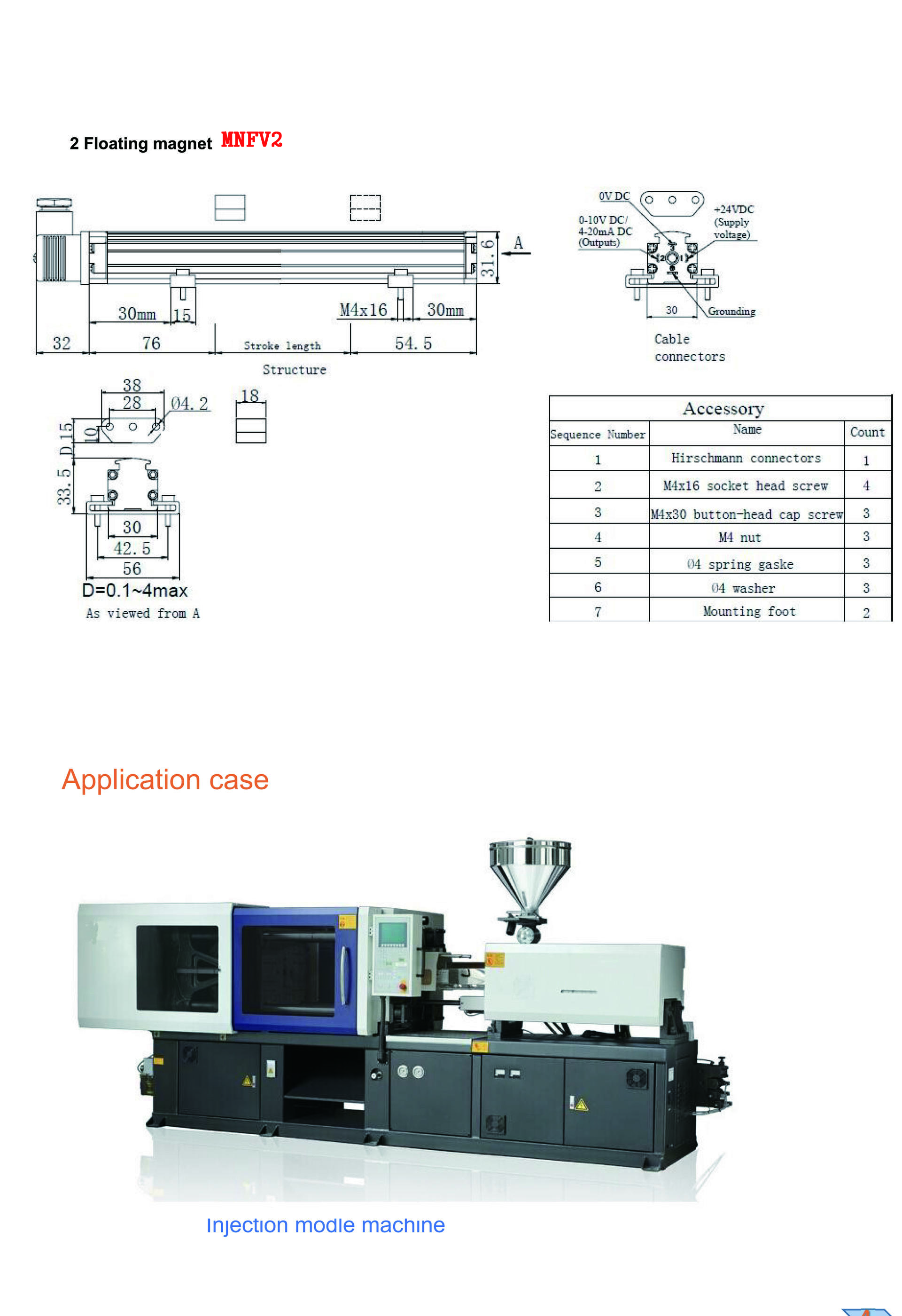

●magnetostrictive linear displacement sensors (Floating magnet)

(DIN43650A) (supply power=DC24V) (output=4~20mA)

● MNFV2-A2-(stroke=600mm) (csq4824)

● MNFV2-A2-(stroke=3,000mm)
