WB-50 카탈로그

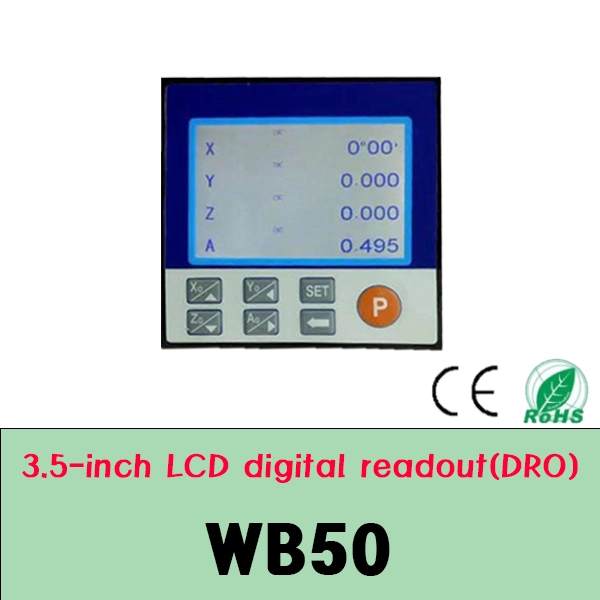

●3.5-inch LCD digital readout (DRO)

● WB-50 (max 3 axis) (CSQ5142)

● (input voltage=AC 90V-240V)

● using 3.5-inch real color LCD screen, mechanical keys, large font display, after power failure to remember the current position wide voltage input range, input voltage AC 90V-240V, all can work normally. Optional RS232 interface, convenient to communicate with computer or PLC, feedback data. LCD digital readout(DRO) can be installed on a variety of machine tools or equipment, such as lathes, milling machines, grinding machines, boring machines, spark machines, fine hole discharge machines.

with a grating scale for the machine tool to display measurement positioning.

●Feature

-Zero Cleaning/reset

-mm / inch mode

-200 sets of coordinates

-memory off;

-Center of1 / 2

-linear error compensation

-sleep mode

-pure 200 sets of Sdm datum;

-ABS / INC mode

-calculator

-circle drilling

-oblique line drilling

-inclined plane processing

-circular arc processing

-lathe (matching)

-rectangular light output

-digital filtering

-vibration filtration

-radius / diameter

-제품 주문시 문의 요망
