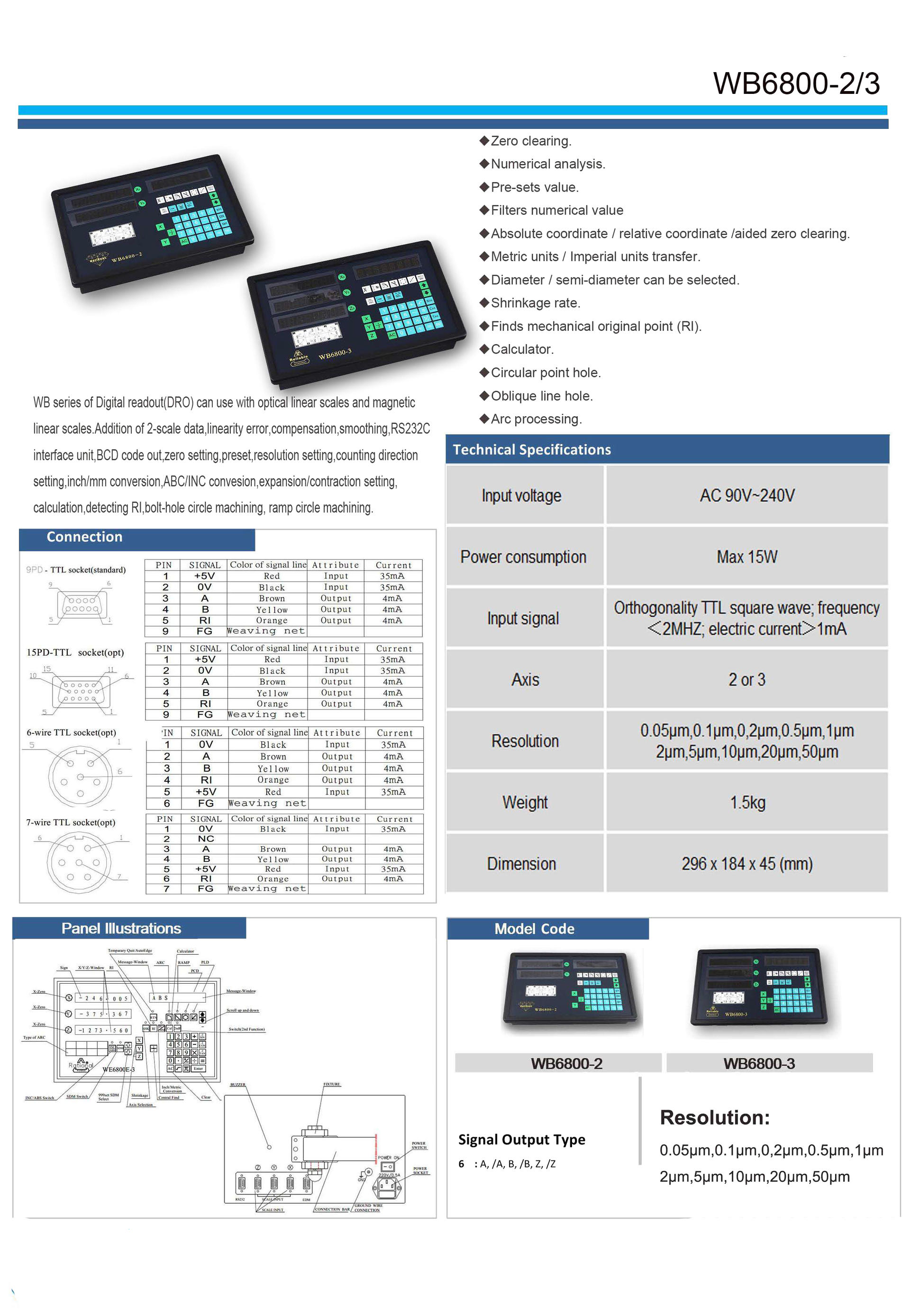

WB-6880  카탈로그

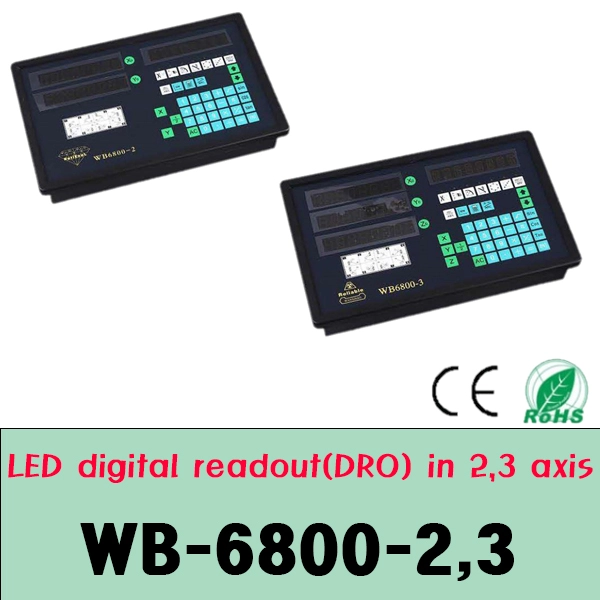

●LED Digital readout (DRO) (WB-6800 series)

● WB-6800-2 (2 axis) (CSQ5144)

● WB-6800-3 (2 axis) (CSQ5148)

● (input voltage=AC 90V-240V)

 ●using 24-bit dedicated counting integrated circuit, counting speed up to 5m/s, remember the current position after power failure, wide voltage input range, input voltage AC 90V-240V, all can work properly. Optional RS232 interface for easy communication with computer or PLC and data feedback. The digital readout(DRO) can be installed on a variety of machine tools or equipment, such as lathes, milling machines, grinding machines, planing machines, etc., with a grating scale to display the measurement positioning for the machine. The power supply anti-interference ability and signal anti-interference ability reach more than 2200V, baud rate 9600 wide voltage input range AC 90V-240V, both can operate normally.

With aluminum mounting bracket

Dual-axis XY/Tri-axis XYZ display optional

illustration of led dro panel 1

illustration of led dro panel 2

●Feature

-Coordinate clearing zero,

-Centering,

-Number setting

-ABS coordinates, INC coordinates,

-200 sets of user coordinates

-Shrinkage rate

-Calculators

-Finding the mechanical origin (RI)

-Circumferential fractional aperture

-Slash aperture

-Circular arc machining

-Bevel processing

-EDM processing (optional)

-RS232 communication (optional)

-Edge tracing treatment (optional)

-제품 주문시 문의 요망
