밀링●체크마스터●3축디지털●WTD5-400●WTD5-1000●standard linear scale(WTD5 series)●스텐다드 선형 스케일●광학 선형스케일●(lengths=50mm~3000mm)●(speed=60m/min)●(PIN,DME)

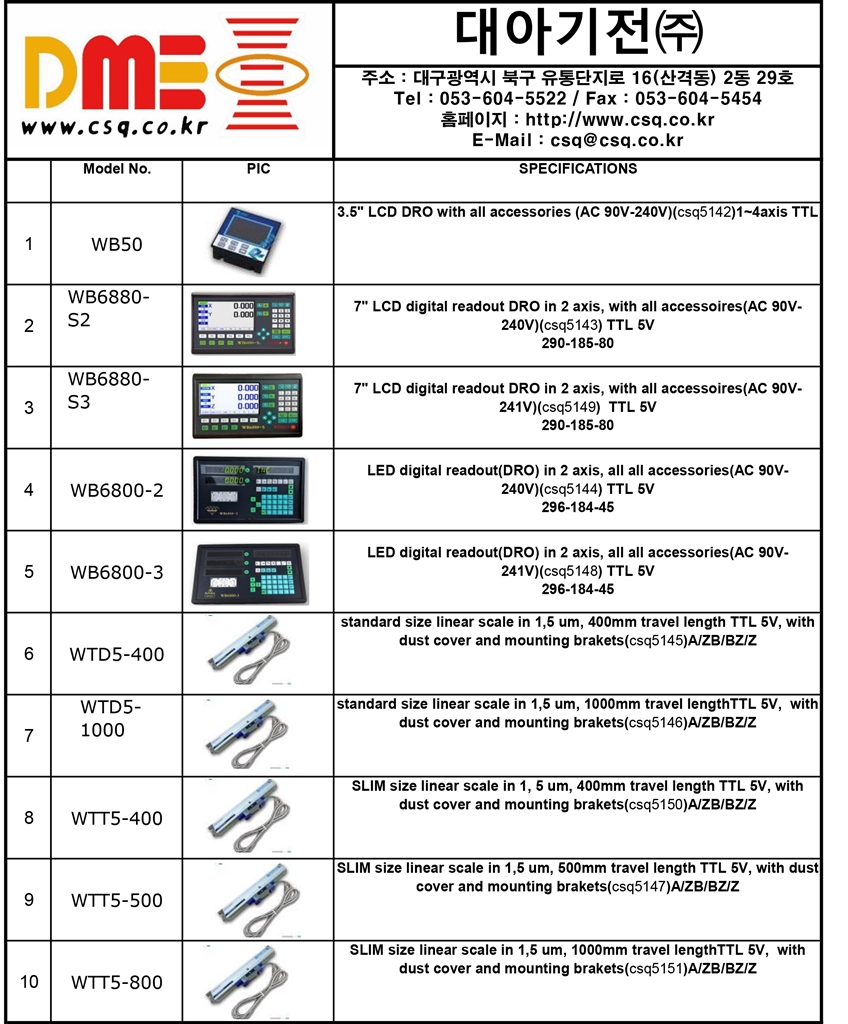

WTD5 카탈로그

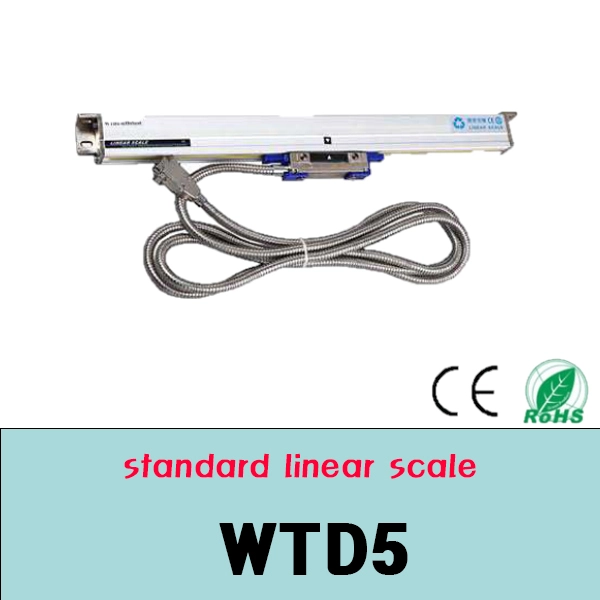

●standard linear scale (WTD5 series)

● WTD5-400 (CSQ5145)

● in 5 um, 400mm travel length TTL 5V

●standard linear scale (WTD5 series)

● WTD5-1000 (CSQ5146)

● in 5 um, 1000mm travel length TTL 5V

●standard linear scale (WTD5 series)

● WTD5-50

● WTD5-100

● WTD5-200

● WTD5-300

● WTD5-500

● WTD5-1500

● WTD5-2000

● WTD5-2500

● WTD5-3000

●Feature
-optical Measuring

-Linear/Glass scale

-5 ball bearing system

-single or double gasket protection

-High resolution up to 0.5 ㎛

-5 VDC TTL Quadrature or 1 Vpp sunusoidal

-Easy mounting

-Measureing lenghts 50 mm - 3000mm

-60 m/min movement speed

-제품 주문시 문의 요망
