HC VP 카탈로그

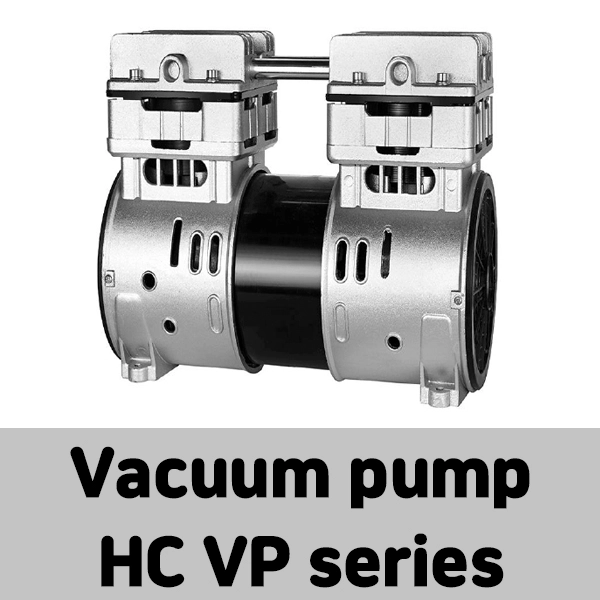

●Oil Free  Vacuum Pump  (Two-grade)

● HC1100A2-1(-98Kpa Two-grade vacuum)-(Power=500W, AC220/50-60Hz)-(flow=95L/min) (MAD1271)

● HC750A2-1(-98Kpa Two-grade vacuum)-(Power=400W, AC220/50-60Hz)-(flow=60L/min) (MAD1267)

●Oil Free  Vacuum Pump  (Two-grade)

●VP750-(760W,AC220V/50~60Hz)-(vacuum=-980mbar)-(Two-grade vacuum) (flow=75L/min) (MAD1269)

●VP550-(Power=560w,AC220V/50-60Hz)-(vacuum=-980mbar)-(Two-grade vacuum) (flow=55L/min)  (MAD1268)

■Oil Free Air compressor (Two-grade)

●SW750-AC220V(760W,AC220V/50~60Hz) (Pressure=7bar)-(Two-grade  Air compressor ) (flow=77L/min) (MAD1270)

●펌프모터 6wire (빨강색 2wire power연결) (검정색 2 wire 콘텐샤 연결)

(노랑색 + 초록색 1wire 접지선)

●콘덴샤 2wire 검은색은  펌프모터  검은색 2wire에 연결한다

●오일레스 진공펌프 ●의료용 진공펌프 ●의료용 콤프레샤

●치과용 진공펌프●치과용 콤프레샤  ●Sution Pump ●오일레스 흡입기

●Oilles vacuum pump (double piston) (vacuum=-680mmHg)

●UN-90V-2-(AC220V/60HZ) (flow=90L/min) (watt=250W) (DME1202)

●UN-120V-2-(AC220V/60HZ) (flow=120L/min) (watt=300W) (DME1205)

●UN-180V-2-(AC220V/60HZ) (flow=180L/min) (watt=450W) (DME1207)

●UN-200V-2-(AC220V/60HZ) (flow=200L/min) (watt=500W) (csq3355)

●UN-300V-2-(AC220V/60HZ) (flow=300L/min) (watt=750W) (csq3357)

●Oilles vacuum pump (double piston) (vacuum=-740mmHg)

●UN-90VH-2(AC220V/60HZ) (flow=45L/min) (watt=250W) (DME1204)

●UN-120VH-2-(AC220V/60HZ) (flow=60L/min) (watt=300W) (DME1206)

●UN-180VH-2-(AC220V/60HZ) (flow=120L/min) (watt=500W)(DME1208)

●UN-200VH-2-(AC220V/60HZ) (flow=105L/min) (watt=500W) (csq3356)

●UN-300VH-2-(AC220V/60HZ) (flow=150L/min) (watt=750W) (csq3358)

■AC Oilless Air Compressor Head (7bar)

●UN-40P-2-(AC220V) (flow=50L/min) (watt=350W) (DME1199)

●UN-90P-2-(AC220V) (flow=90L/min) (watt=250W) (DME1203)
