MN-603 (MN603)●same OP-SC2 (OPSC2)●signal converter● connector(DIN43650A)●포텐숀메타신호변환기●포텐숀메타시그널변환기●(for LPT, RTL, ELPT, ERTL) (for LPH, ELPH) ●(MIN,DME)

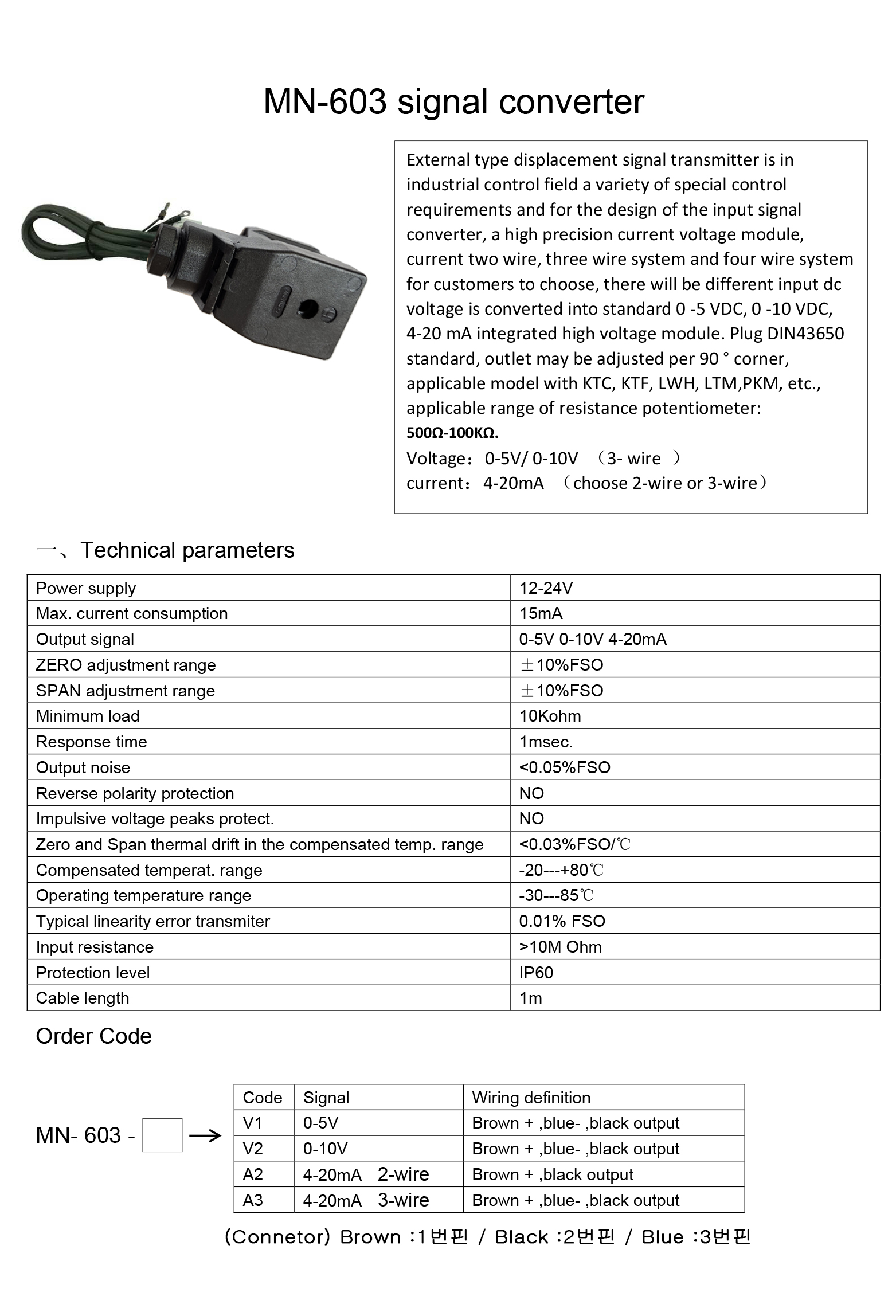

                                            MN-603 카탈로그

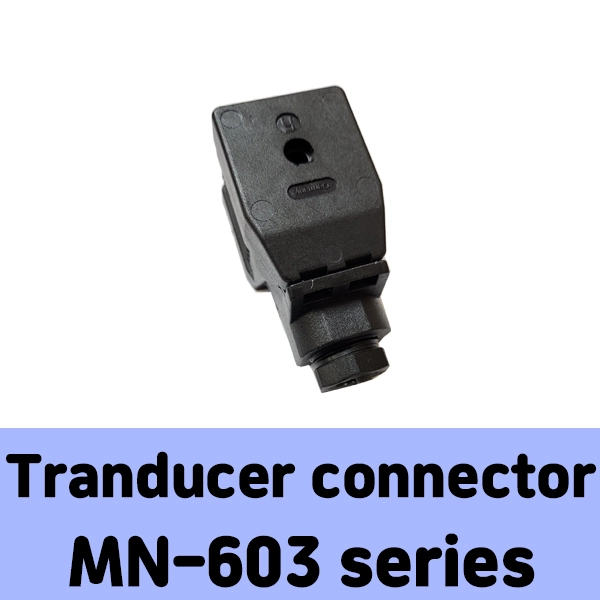

●tranducer connector / signal converter (DIN43650A)

●MN-603-A (Power= DC12V~DC24V)  (MAD1277)

(input=0~5KΩ + 0~10KΩ) (Output=4~20mA)

●tranducer connector / signal converter (DIN43650A)

●MN-603-V1 (Power= DC12V~DC24V)  (MAD1278)

(input=0~5KΩ + 0~10KΩ) (Output=0~5V)

●tranducer connector / signal converter (DIN43650A)

●MN-603-V2 (Power= DC12V~DC24V)  (MAD1279)

(input=0~5KΩ + 0~10KΩ) (Output=0~10V)

●제품 주문시 문의 요망

(for  LPT,  RTL, ELPT, ERTL) (for LPH, ELPH)
