5V110●5V210●5V310●5V120●5V220●5V320●5/2way 3/2way air Solenoid Valve●Low Comsuption Energy saving Continuous work ED100%●에너지 세이빙 에어 솔레노이드 밸브●(G1/8,G1/4 ,G3/8)●(0.15~10bar)●(RFS)

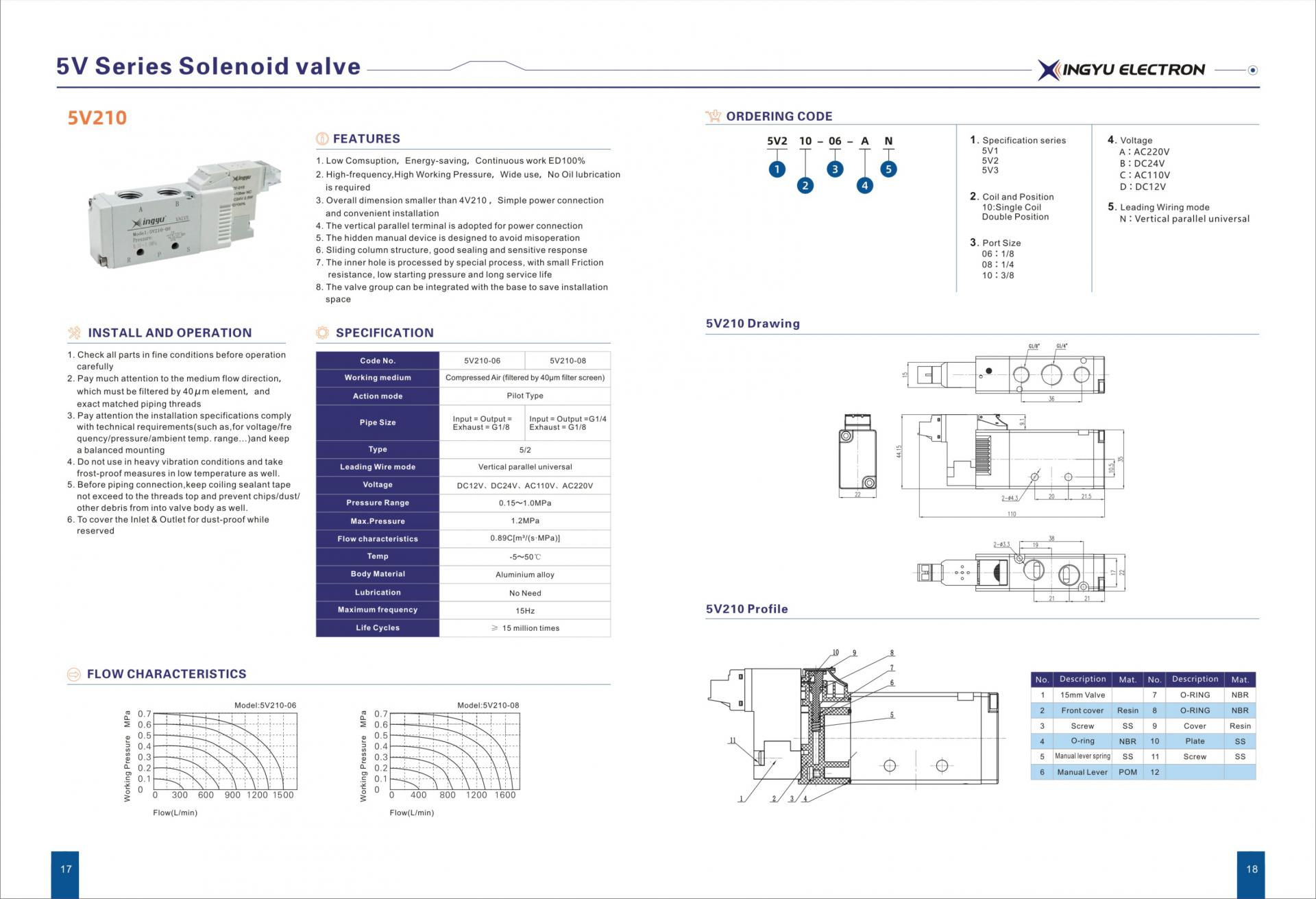

5V catalog

• ●5V Series Solenoid Valve (AC220V/AC110V 미생산)
  ●Low Comsuption，Energy-saving，Continuous work ED100%
• ●high-frequency, High Working Pressure, Wide use, No oil lubrication is required
• ●Overall dimension smaller than 4V210, Simple power connection and convenient installation
• ●The vertical parallel terminal is adopted for power connection
• ●The hidden manual device is designed to avoid misoperation
• ●Sliding column structure, good sealing and sensitive response
• ●The valve group can be integrated with the base to save installation space

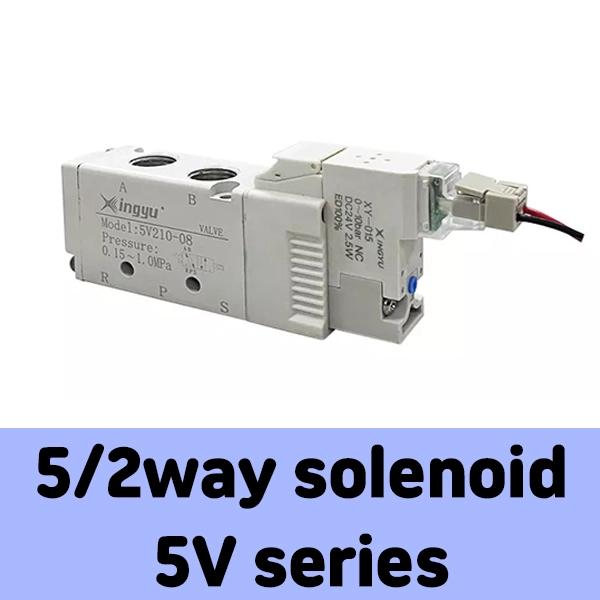

●(5/2way, Single) air solenoid valve (G1/4 F)

●5V210-08-BN-DC24V (G1/4 F) (CSQ5356)

●5V210-08-DN-DC12V (G1/4 F) (CSQ5357)

●5V210-08-AN-AC220V (G1/4 F) (CSQ5355) (미생산)

●5V210-08-CN-AC110V (G1/4 F)  (미생산)

●(5/2way, Single) air solenoid valve (G1/8 F)

●5V110-06-BN-DC24V (G1/8 F)

●5V110-06-DN-DC12V (G1/8 F)

●5V110-06-AN-AC220V (G1/8 F)  (미생산)

●5V110-06-CN-AC110V (G1/8 F)  (미생산)

●(5/2way, Single) air solenoid valve (G3/8 F)

●5V310-10-BN-DC24V (G3/8 F)

●5V310-10-DN-DC12V (G3/8 F)

●5V310-10-AN-AC220V (G3/8 F)  (미생산)

●5V310-10-CN-AC110V (G3/8 F)  (미생산)

●(5/2way, double) air solenoid valve (G1/4 F))

●5V220-08-BN-DC24V (G1/4 F)

●5V220-08-DN-DC12V (G1/4 F)

●5V220-08-AN-AC220V (G1/4 F)  (미생산)

●5V20-08-CN-AC110V (G1/4 F)  (미생산)

●(5/2way, double) air solenoid valve (G1/8 F))

●5V110-06-BN-DC24V (G1/8 F)

●5V110-06-DN-DC12V (G1/8 F)

●5V110-06-AN-AC220V (G1/8 F)  (미생산)

●5V110-06-CN-AC110V (G1/8 F)  (미생산)

●(5/2way, double) air solenoid valve (G3/8 F )

●5V320-10-BN-DC24V (G3/8 F)

●5V320-10-DN-DC12V (G3/8 F)

●5V320-10-AN-AC220V (G3/8 F)  (미생산)

●5V320-10-CN-AC110V (G3/8 F)  (미생산)

●4V21O-08 (사이즈동일 new model 5v210-08)

●4V22O-08 (사이즈동일 new model 5v220-08)

●4V11O-06 (사이즈동일 new model 5v110-06)

●4V12O-06 (사이즈동일 new model 5v120-06)

●4V31O-10 (사이즈동일 new model 5v310-10)

●4V32O-10 (사이즈동일 new model 5v320-10)
