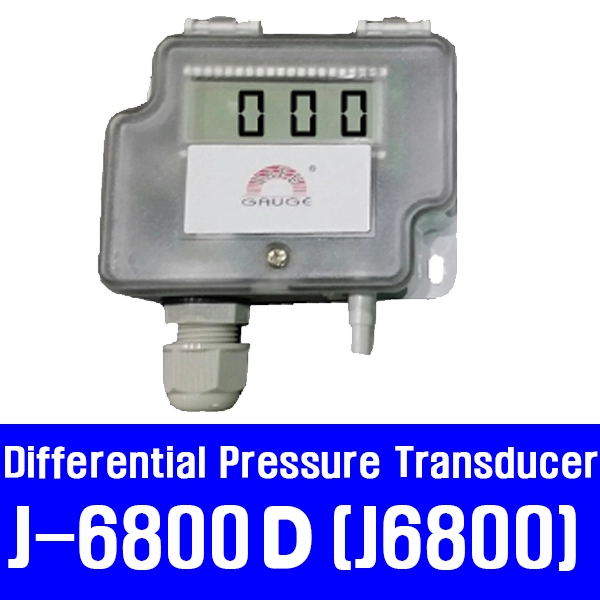

(생상중지)J-6800D●(J6800D)(new, J-7800)●(4 Digital LCD Display, output 4~20mA,Differential Pressure Transmitter)●화기 디지털 차압계●디지털 차압 트랜스미터●디지털 차압게이지●디지털차압변환기●LCD 차압변환기●LCD 차압 트랜스미터●(IP54)●(0.5%FS)●(HWACHI)

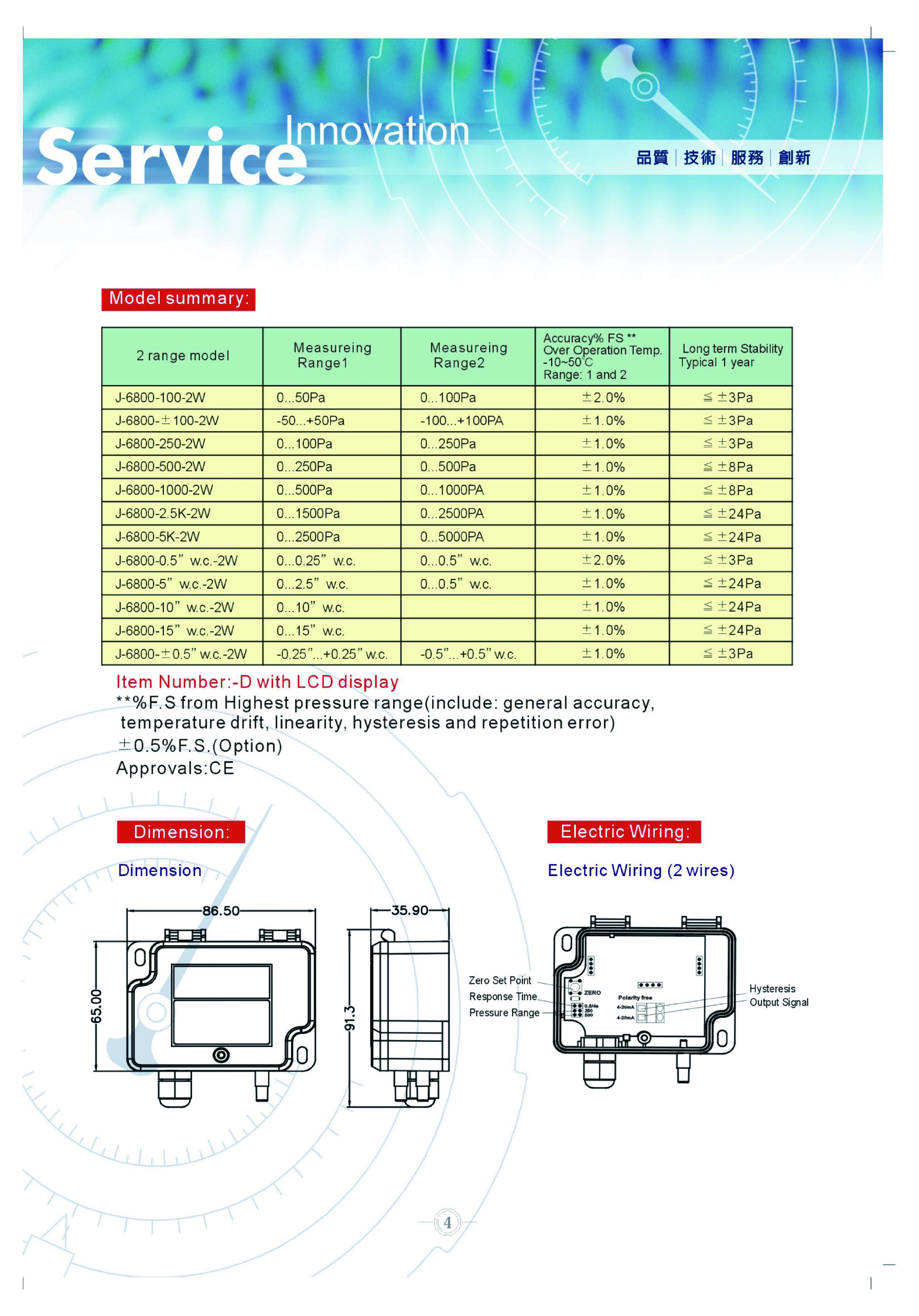

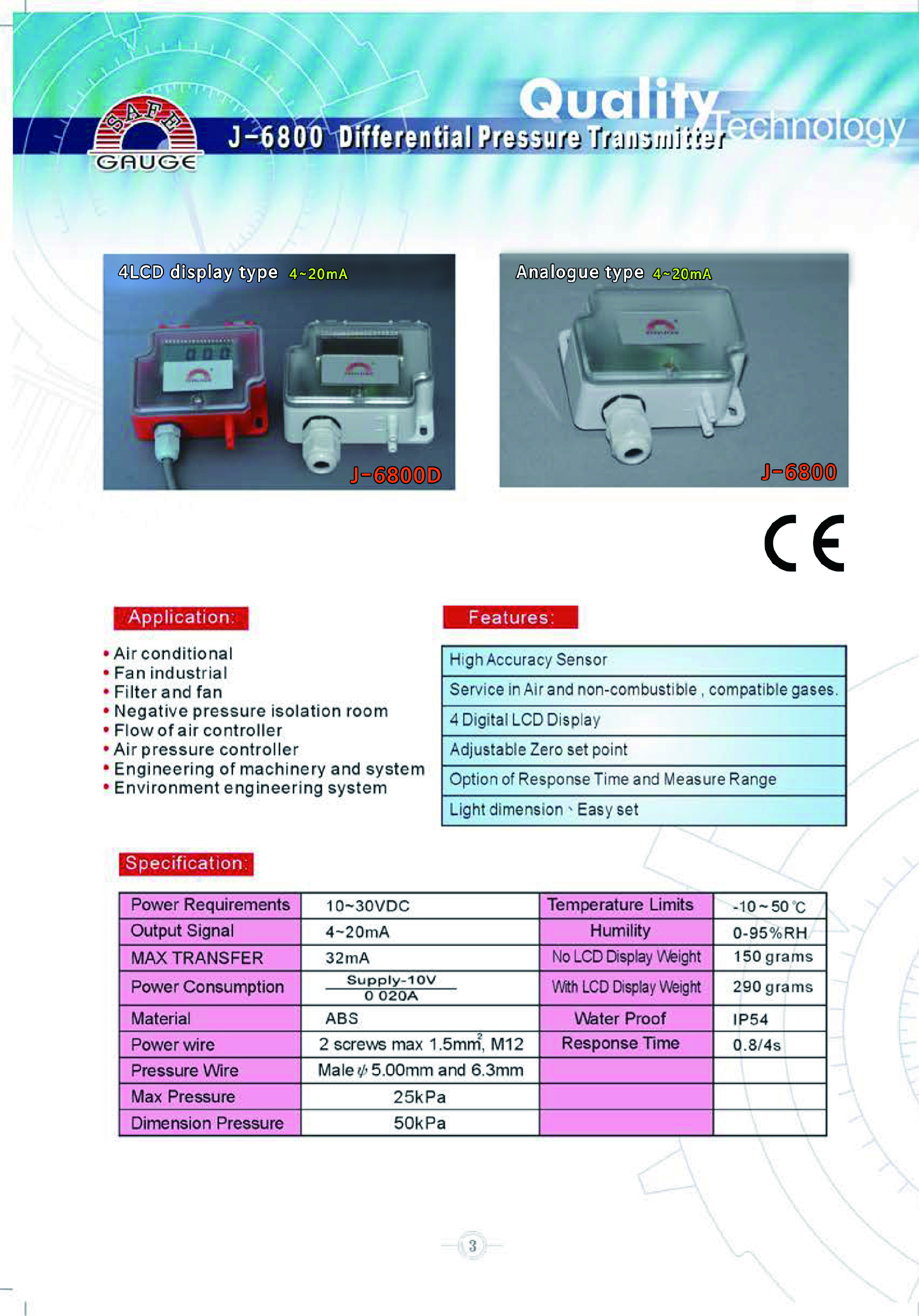

J-6800D 카탈로그

●4 Digital LCD Display, Differential Pressure transmiter (0.5%FS)

(power=10~30VDC)

(Display=4 Digital LCD Display)

(output=4~20mA) (IP54)

(max pressure=25KPa)  (Differential Pressure=50KPa)

●J-6800D-2.5K-2W-D (0~2500 Pa) (DME9718)

●J-6800D-500-2W (0~500 Pa) (csq2593)

●J-6800D-100-2W-D (0~50 Pa) (csq2592)

●J-6800D-5K-2W-D (0~5000 Pa) (DME9719)

●J-6800-100-2W ●J-6800-250-2W ●J-6800-500-2W

●J-6800-1000-2W ●J-6800-100-2W ●J-6800-2.5K-2W

●J-6800-100-2W ●J-6800-5K-2W ●J-6800-0.5"w.c.-2W

●J-6800-5"w.c.-2W ●J-6800-10"w.c.-2W ●J-6800-15"w.c.-2W

●1mmmH2O=0.009807KPA=9.80665PA=0.073556mmHg    =0.000098bar=0.098066mpa=0.001422psi

●1kpa=1000PA=101.971626mmH2O=7.50017mmHg =0.01bar=10mba=0.145038psi

●500mmH2O=4.9KPA=4903.32478Pa=0.049033bar    =0.0049033mpa=49.033248mb=0.71117psi=36.77796mmHg

●300mmH20=2.941995KPA=2941.99487PA=0.02942bar    =0.002942mpa=29.41994mb=0.426702psi=22.066776mmHg

●Dwyer 디지털 차압계 (477A,HM35)
