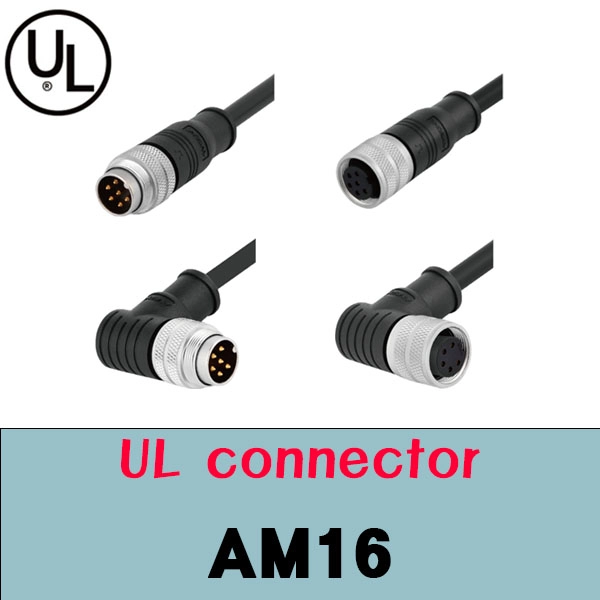

AM16(M16)●UL certified M16 pre-molded cable connector●UL solder connection●IP67 grade cable connector●straight molded●UL인증cable●UL인증 connection●UL콘넥타●UL케이블●UL인증콘넥타●UL인증케이블●EMC shieldable●IP67●(DME)

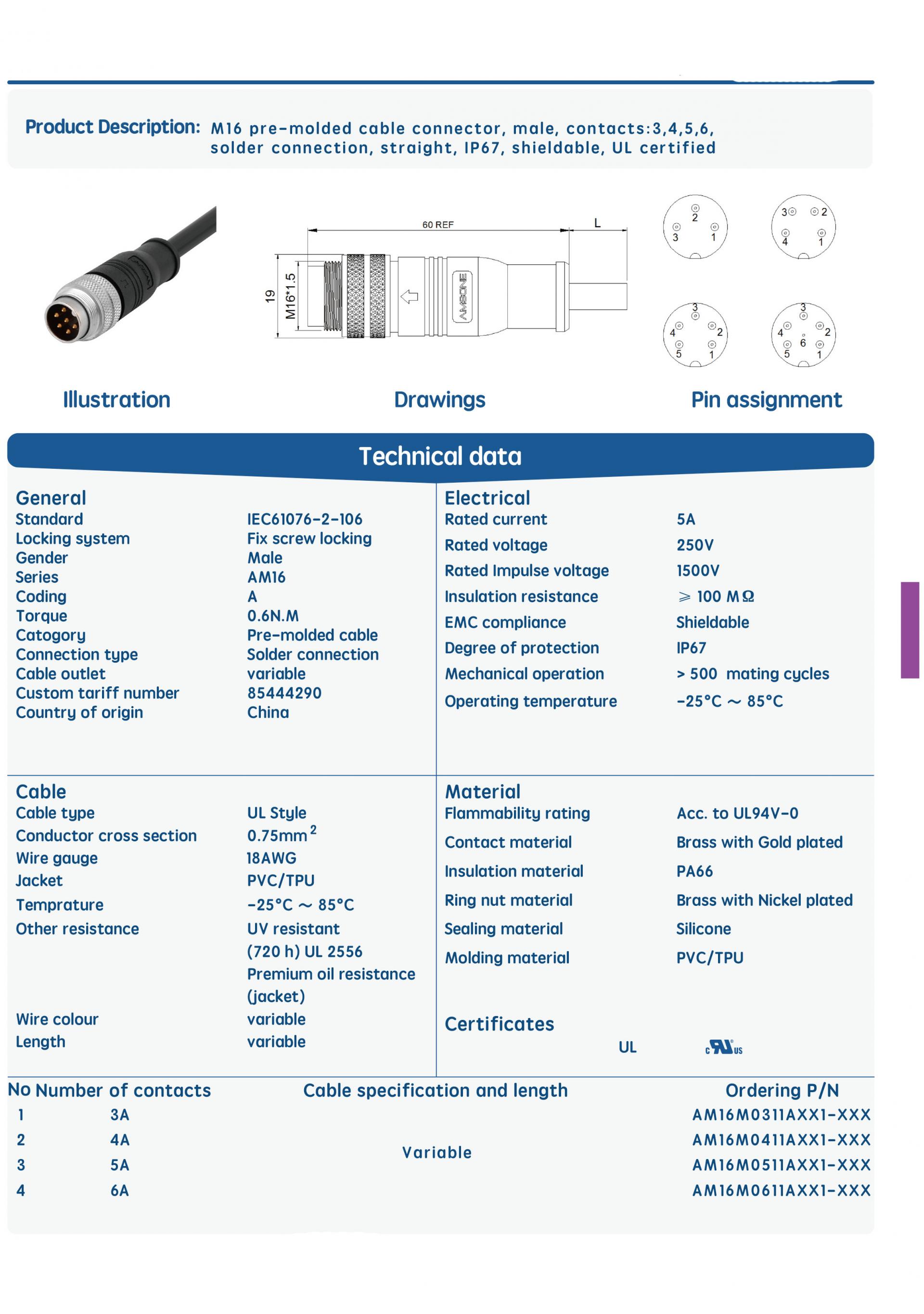

●방수등급 IP67 grade  cable connector (straigh)

●AM16 (UL certified) - straight Male / Female

●IEC61076-2-106

●Rated current : 5A / Rated voltage : 250V

●Pre-molded cable

●EMC shieldable

●Mechanical operation >500 mating cycles

●AM16-3P (UL certified) - straight angled Male / Female

●AM16-4P (UL certified) - straight angled Male / Female

●AM16-5P (UL certified) - straight angled Male / Female

●AM16-6P (UL certified) - straight angled Male / Female

●AM16-3P (UL certified) - straight angled Male

●AM16-4P (UL certified) - straight angled Male

●AM16-5P (UL certified) - straight angled Male

●AM16-6P (UL certified) - straight angled Male

●AM16-3P (UL certified) - straight angled Female

●AM16-4P (UL certified) - straight angled Female

●AM16-5P (UL certified) - straight angled Female

●AM16-6P (UL certified) - straight angled Female

●방수등급 IP67 grade  cable connector  (right angled)

●AM16 (UL certified) - right angled Male / Female

●IEC61076-2-106

●Rated current : 5A / Rated voltage : 250V

●Pre-molded cable

●EMC shieldable

●Mechanical operation >500 mating cycles

●AM16-3P (UL certified) - right angled Male / Female

●AM16-4P (UL certified) - right angled Male / Female

●AM16-5P (UL certified) - right angled Male / Female

●AM16-6P (UL certified) - right angled Male / Female

●AM16-3P (UL certified) - right angled Male

●AM16-4P (UL certified) - right angled Male

●AM16-5P (UL certified) - right angled Male

●AM16-6P (UL certified) - right angled Male

●AM16-3P (UL certified) - right angled Female

●AM16-4P (UL certified) - right angled Female

●AM16-5P (UL certified) - right angled Female

●AM16-6P (UL certified) - right angled Female

●제품특징

●방수등급 IP67 grade  cable connector

●케이블 길이 변경가능 / 금액문의

●M12 UL certified 문의 가능

●분리 / 몰딩형 가능

● Cable UL certified

●문의사항 (전기태 팀장 010-7157-0038)
