PRV06●PRV10●SUS water regulator●SUS316 High pressure water regulator●stainless steel water regulator●스텐레스 리퀴드 고압레귤레이터●고압 레귤레이터●스텐레스 고압 물 레귤레이터●Media=air, water, oil●(6000Psi)●(NPT1/4)●(DME,Wofly,USUN)
●(SUS316) gas, water High pressure regulator (rellef)
(Media=air, water, oil) (rellief type) (With out vant)
(Input pressure=6000 psi / 413 bar)
(out put pressure=50 psi~6000 psi / 3.5 bar~413 bar)
●PRV-06-SS-2-FNPT4 (50~6000psi) (NPT1/4) (csq5530)
●(SUS316) gas, water High pressure regulator (rellef)
(Media=air, water, oil) (rellief type) (With vant)
(Input pressure=6000psi / 413 bar)
(out put pressure=50 psi~6000psi / 3.5 bar~413 bar)
●PRV-06-SS-2-FNPT4-V(vent) (50~6000psi) (NPT1/4) (csq5532)
● (스팀 고압 레귤레이터) (고온고압 레귤레이터) (고온 레귤레이터)
● (고온 스팀 레귤레이터) ( 고압 고온 레귤레이터)
● (스텐레스 스팀 고압 레귤레이터) (스텐레스 고온 고압 레귤레이터)
● (스텐레스 고온 레귤레이터) (스텐레스 스팀 레귤레이터)
● (스텐레스고압 워터 레귤레이터) (스텐레스 고압 리퀴터 레귤레이터)
● (SUS316 스팀고압레귤레이터) (SUS316 고온 고압 레귤레이터)
● (SUS316 고온 레귤레이터) (SUS316 스팀 레귤레이터)
● (SUS316 고압 워터 레귤레이터) (SUS316 고압 리퀴터 레귤레이터)
●(SUS water regulator) (SUS316 High pressure water regulator)
●(stainless steel water regulator)
●(WR41-6L same / PRV06 same / XYA-SS-12ww same / XYB-SS-12WW same)
원산지 Made in China
무게 1kg
택배 · 기본 3,500원 · 도서산간 배송비 popover
도서산간 지역은 추가운임이 발생한다는 점 참고 부탁드립니다.
"카탈로그 및 자료는 '다운로드' 탭에서 다운받으시면 됩니다"
위 상품은 산업용으로 사용되는 제품으로 사용 방법 및 특성을 충분히 숙지하고 있는 전문 엔지니어나 사용 경험이 있으신 분이 구매하시길 추천드립니다.
제품의 손상과 포장이 훼손된 경우, 사용 후 단순 변심의 경우에는 교환 및 반품이 어렵습니다.
이점 양지하시어 신중히 구매 바랍니다.
Pressure regulator valve Features
●316 stain less steeleonstruction makes the vale hasgood corroslion reistance.
● Main wallve metall to metal seal.
● Maxlmum inlet pressure: 10000 psig(689 bar ),.
● Si outle1 pressure ranges: (1)200-10000psig (2) 50-6000 psig (3) 25-4000 psig (4) 15-2500 psig (5)10-1500 psg (6)0-800 psig
●WorMing te mperature: (-15"F~165FK) (-26*C~74"C)
● Spring laaded pressure reducing reg ula tor.
● Piston-sen se d design ensures safely and reabiliity
● Downstream pressure vent(relief /Vent port optional )
Descripition
Turning the handle cloekwise wil increa se he spring exer le d tension to increase theregulalor ou tput pre ssure.Rotaling the hande
countler clockwise decrease the regulator outpui pressure. When the downstream pressure is higher than the set pressure the
downsteam pressure will rellief from the vent port.

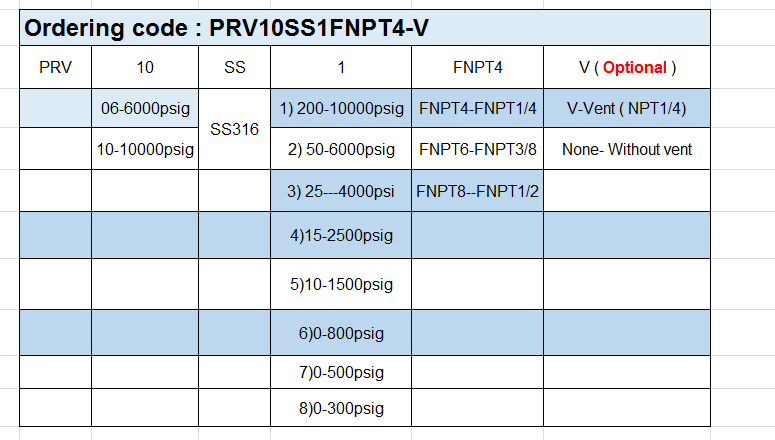

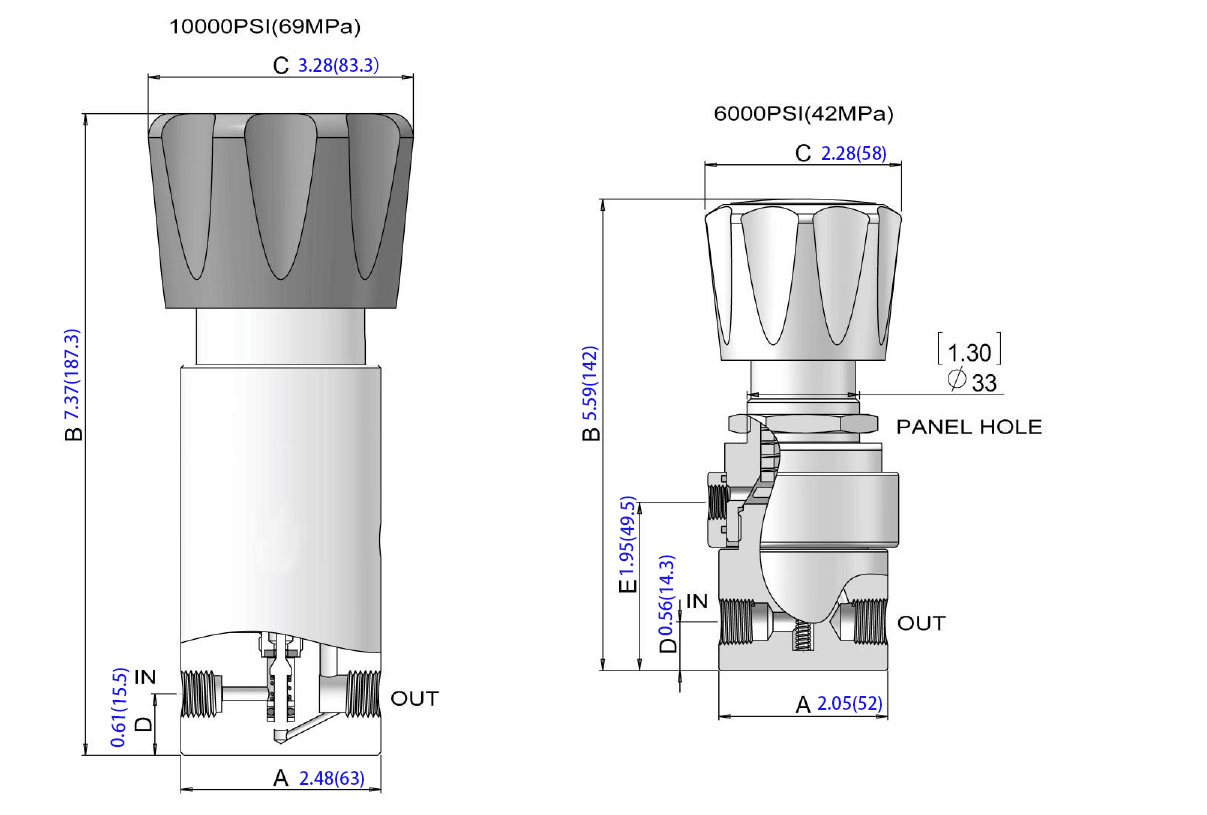

Product Technical data


제품 리뷰를 작성해주시면
더 좋은 품질의 제품을 공급하는데 큰 도움이 됩니다.
감사합니다.
"카탈로그 및 자료는 '다운로드' 탭에서 다운받으시면 됩니다"
위 상품은 산업용으로 사용되는 제품으로 사용 방법 및 특성을 충분히 숙지하고 있는 전문 엔지니어나 사용 경험이 있으신 분이 구매하시길 추천드립니다.
제품의 손상과 포장이 훼손된 경우, 사용 후 단순 변심의 경우에는 교환 및 반품이 어렵습니다.
이점 양지하시어 신중히 구매 바랍니다.
Pressure regulator valve Features
●316 stain less steeleonstruction makes the vale hasgood corroslion reistance.
● Main wallve metall to metal seal.
● Maxlmum inlet pressure: 10000 psig(689 bar ),.
● Si outle1 pressure ranges: (1)200-10000psig (2) 50-6000 psig (3) 25-4000 psig (4) 15-2500 psig (5)10-1500 psg (6)0-800 psig
●WorMing te mperature: (-15"F~165FK) (-26*C~74"C)
● Spring laaded pressure reducing reg ula tor.
● Piston-sen se d design ensures safely and reabiliity
● Downstream pressure vent(relief /Vent port optional )
Descripition
Turning the handle cloekwise wil increa se he spring exer le d tension to increase theregulalor ou tput pre ssure.Rotaling the hande
countler clockwise decrease the regulator outpui pressure. When the downstream pressure is higher than the set pressure the
downsteam pressure will rellief from the vent port.
Product Technical data
