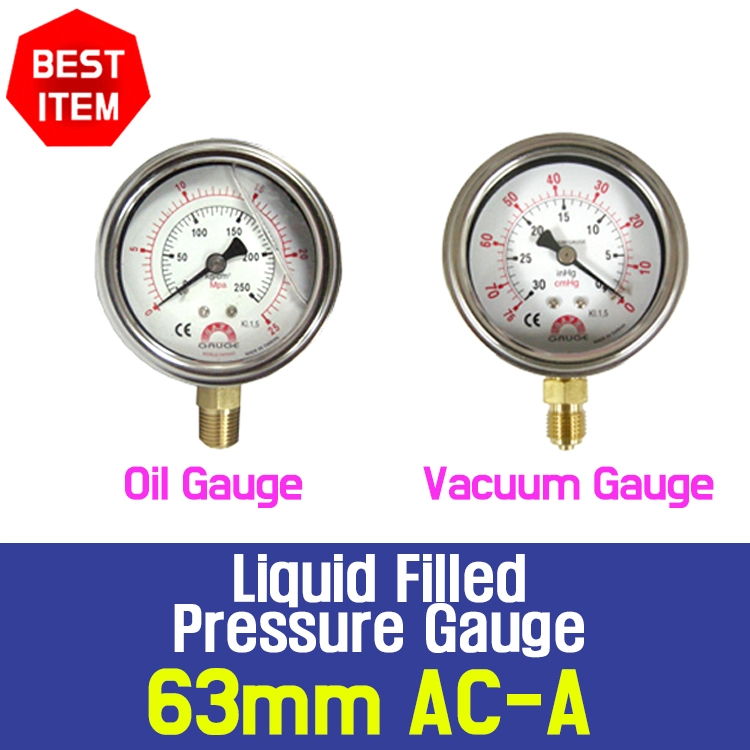

AC-A●(63mm, Single side, with oil, Liquid Filled Pressure Gauge)●(63mm, with out oil, Vacuum gauge)●(63mm,오일유,오일 압력계,오알 압력 게이지)●(63mm,오일무, 진공 압력계, 진공 게이지)●(1.5%FSD)●(HWACHI)

Pressure Gauge 카탈로그(1)  Pressure Gauge 카탈로그(2)

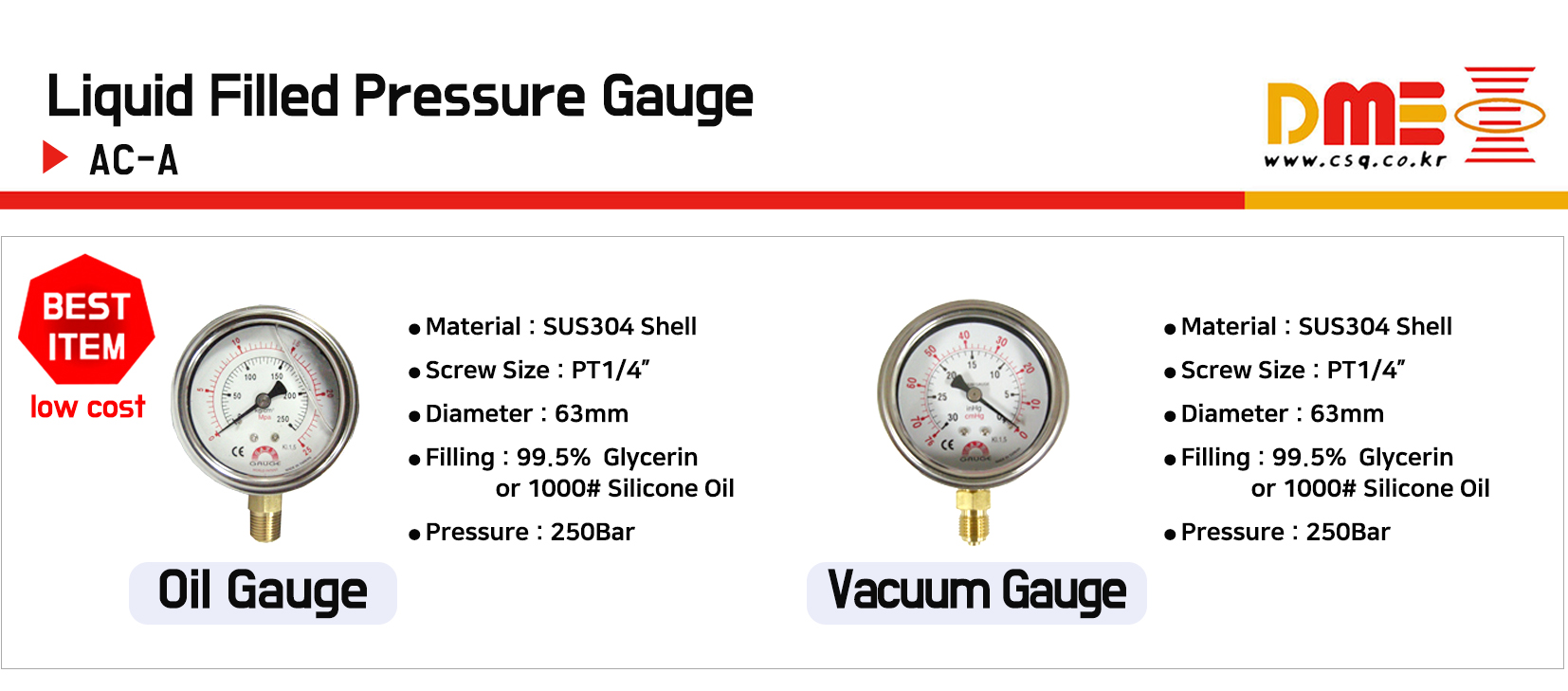

  AC-A 카탈로그

●(Single side, bottom male) Pressure gauge (with oil)

●AC-A-(63mm)-(250kgf /25Mpa)-O-(bottom  PT1/4 M) (DME4471)

●(Single side, bottom male) Pressure gauge(with oil)

●63mm-10kg-A-O-(bottom G1/4 M) (DME7120)

●63mm-40Kg-A-O-(bottom G1/4 M) (DME3271)

●63mm-60Kg-A-O-(bottom G1/4 M) (DME1407)

●63mm-100kg-A-O-(bottom G1/4 M) (DME3270)

●63mm-160Kg-A-O-(bottom G1/4 M) (DME1408)

●63mm-400Kg-A-O-(bottom G1/4 M) (DME1410)

●63mm-600Kg-A-O-(bottom G1/4 M) (DME1411)

●(Single side, back flange) Pressure gauge (with oil)

●63mm-10Kg-BD-O-(back flange G1/4 M) (DME5569)

●63mm-35Kg-BD-O-(back flange G1/4 M) (DME5570)

●63mm-600Kg-BD-O-(back flange G1/4 M) (DME1406)

●(Single side, Vacuum, bottom male) Pressure gauge (not oil)

●AC-A-63mm-(-76cmHg~0 cmHg)-(bottom PT1/4 M) (DME6816)

●(Single side, bottom male) Pressure gauge (not oil)

●63mm-3Kg-A(bottom G1/4 M)( CSQ1410)

●63mm-10kg-A-(bottom G1/4 M) (DME1403)

●63mm-20Kg-A-(bottom G1/4 M) (CSQ1404)

●(Single side,  back male) Pressure gauge (not oil)

●63mm-4Kg-B-(back G1/4 M ) (for air regulator ) (DME1400)

●63mm-25Kg-B-(back G1/4 M) (for air regulator) (DME1401)

●(Single side, back flange) Pressure gauge (not oil)

●63mm-1Kg-BD-(back flange G1/4 M ) (DME5683)

●63mm-2Kg-BD-(back flange G1/4 M) (DME7217)

●63mm-4Kg-BD-(back flange G1/4 M) (DME6295)

●63mm-6Kg-BD-(back flange G1/4 M) (DME5682)

●63mm-10Kg-BD-(back flange G1/4 M) (CSQ1402)

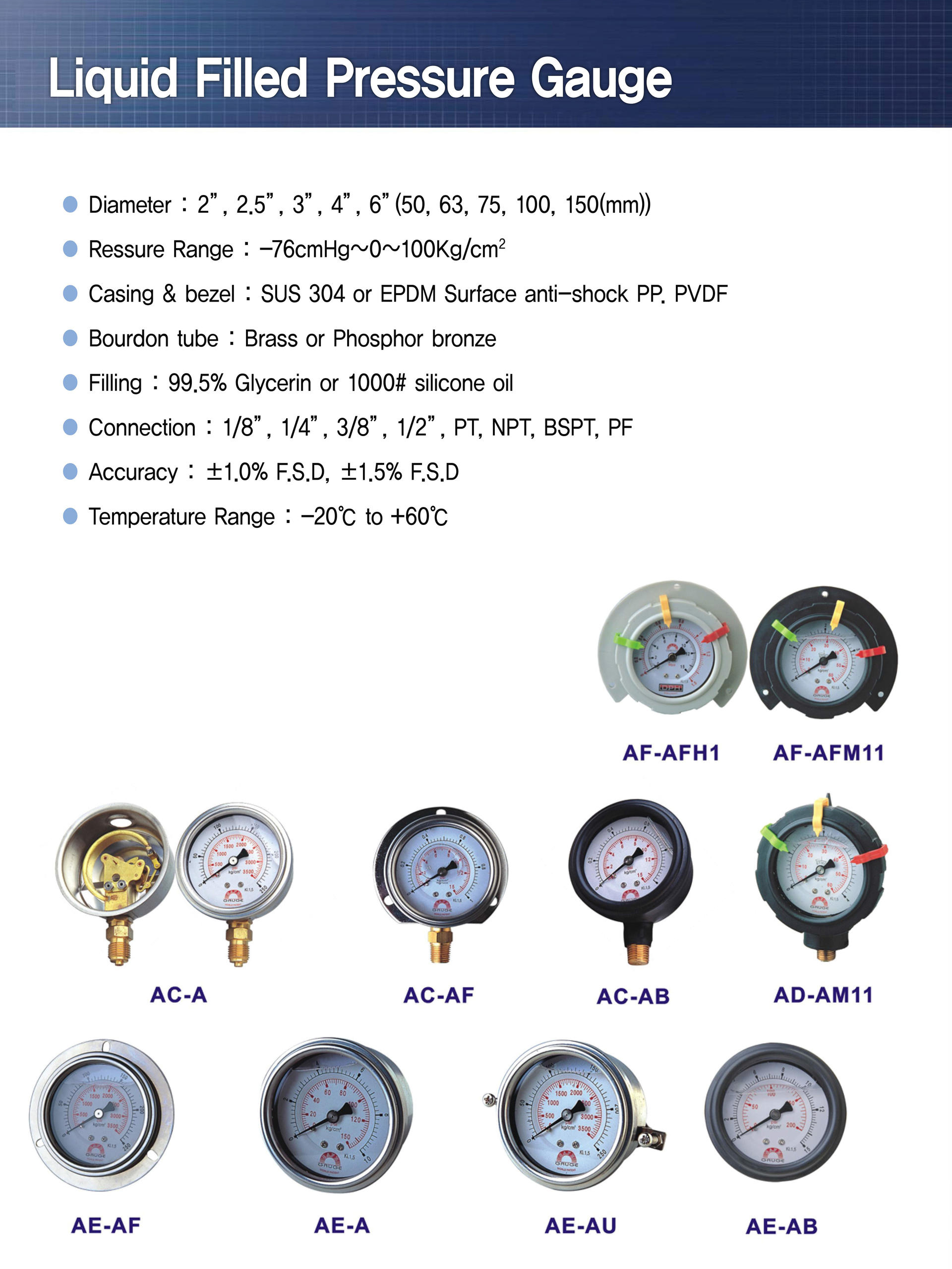

●AC-A  ●AC-AF ●AC-AB  ●AD-AM11 ●AE-AF ●AE-A

●AE-AU ●AE-AB
