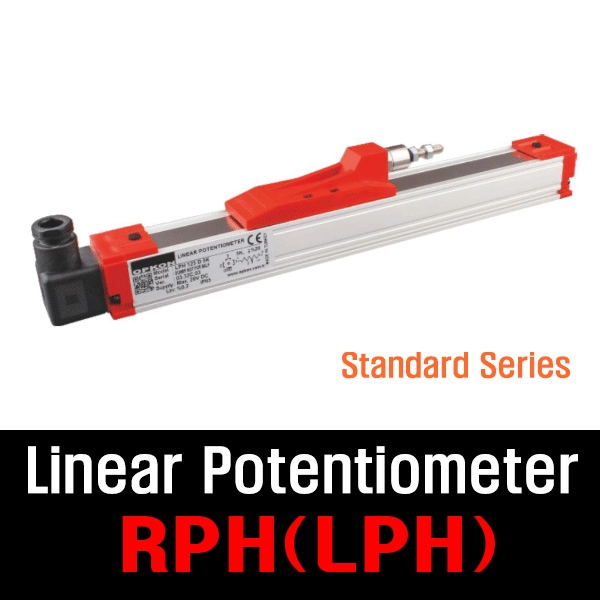

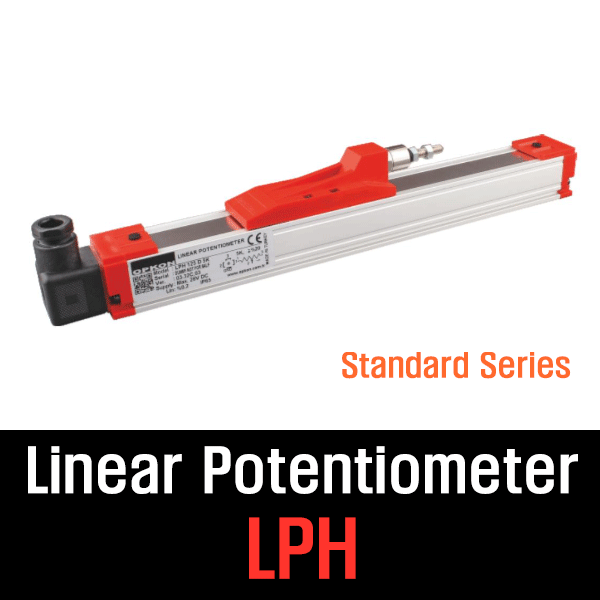

RPH(same LPH)●Linear potentiometer-Standard Type●OPKON Position Sensor●OPKON 리니어 포텐쇼메타●OPKON포텐숀 메타●(stroke=100mm~1750mm)●(IP40)●(OPKON)

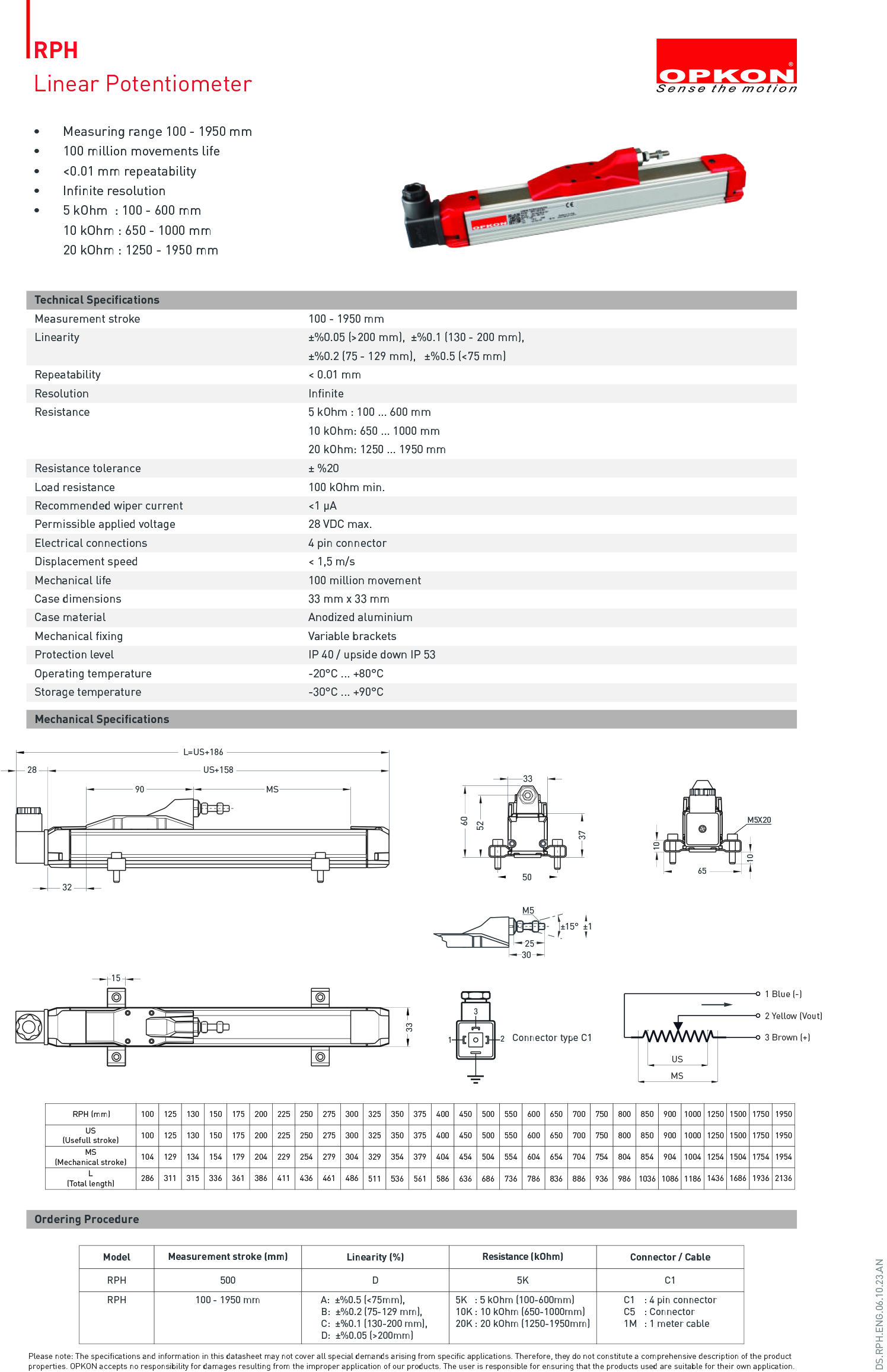

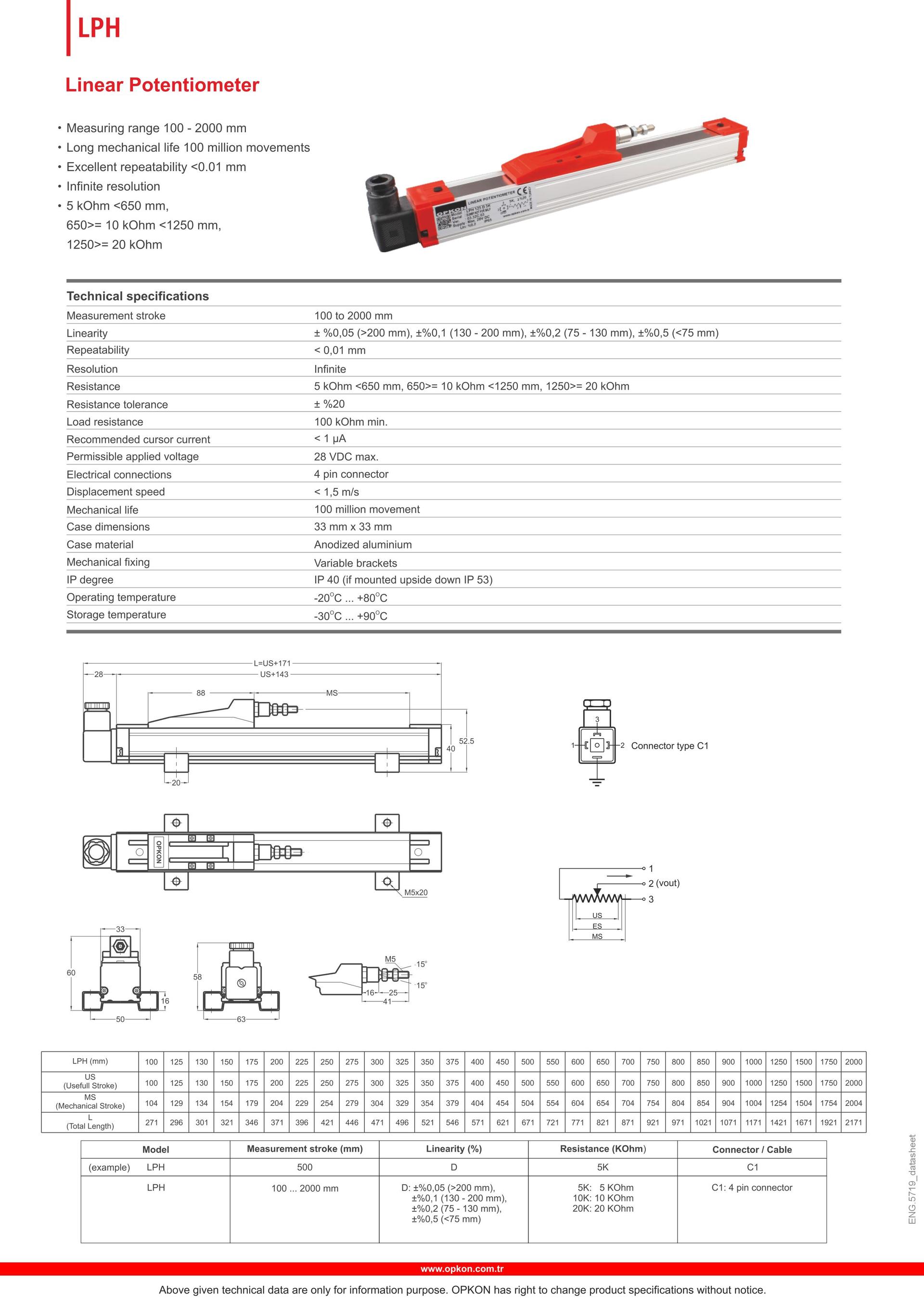

LPH 카탈로그 Output Standard 생산표 RPH 카탈로그

●strok=(100mm~1750mm) (IP40) ●linearity=(0.05%)

●repeatability(=0.01mm) ●resolution=(infinite)

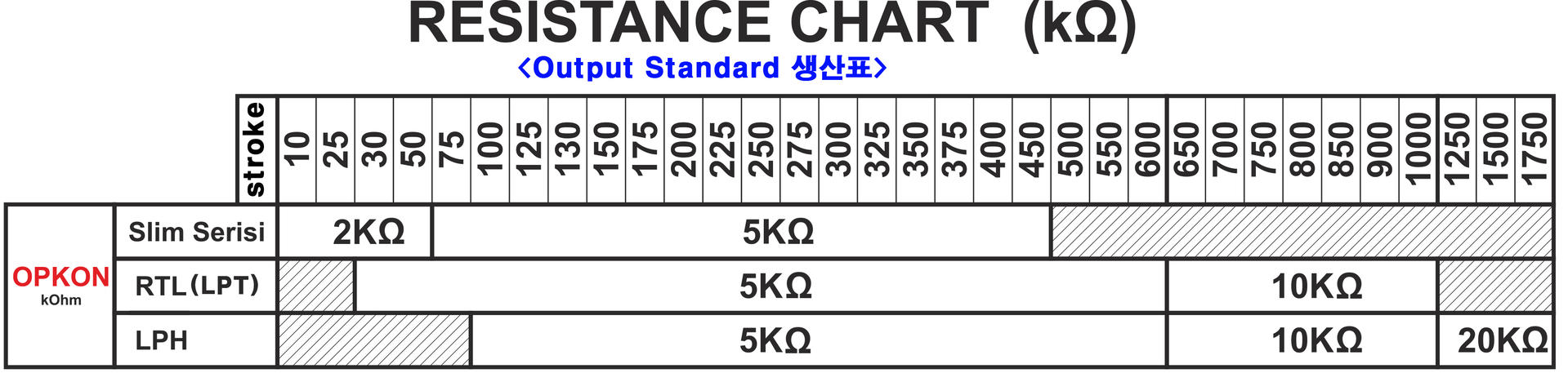

●output standard=(5kohm / 100mm~600mm)

●output standard=(10kohm / 650mm~1000mm)

●output standard=(20Kohm / 1250mm~1750mm)

●Pormissible applied volyang=(DC28V)

●Long mechanical life=(100 million cycles)

●(output=5 Kohm, Standard Type) Linear potentiometer

●RPH-100-D5K-C1 (LPH-100-D5K-C1) (output=5 Kohm) (DME0161)

●RPH-150-D5K-C1 (LPH-150-D5K-C1) (output=5 Kohm) (DME9656)

●RPH-200-D5K-C1 (LPH-200-D5K-C1) (output=5 Kohm) (DME0162)

●RPH-250-D5K-C1 (LPH-250-D5K-C1) (output=5 Kohm) (CSQ5584)

■■RPH-250-D5K-1M (LPH-250-D5K-1M) (output=5 Kohm) (CSQ9703)

●RPH-300-D5K-C1 (LPH-300-D5K -C1)(output=5 Kohm) (DME0163)

●RPH-350-D5K-C1 (LPH-350-D5K -C1) (output=5 Kohm) (DME9657)

●RPH-400-D5K-C1 (LPH-400-D5K-C1) (output=5 Kohm) (DME0165)

●RPH-500-D5K-C1 (LPH-500-D5K-C1) (output=5 Kohm) (DME0166)

●RPH-550-D5K-C1 (LPH-550-D5K-C1) (output=5 Kohm) (CSQ3918)

●RPH-600-D5K-C2 (LPH-600-D5K-C1) (output=5 Kohm) (CSQ3919)

●(output=10 Kohm, Standard Type) Linear potentiometer

●RPH-700-D10K-C1 (LPH-700-D10K-C1) (output=10 Kohm) (DME0168)

●RPH-800-D10K-C1 (LPH-800-D10K-C1) (output=10 Kohm) (DME0169)

●RPH-1000-D10K-C1 (LPH-1000-D10K-C1) (output=10 Kohm) (DME0170)

●(output=20 Kohm, Standard Type) Linear potentiometer

●RPH-1250-D20K-C1 (LPH-1250-D20K-C1) (output=20 Kohm) (CSQ3920)

●RPH-1500-D20K-C1 (LPH-1500-D20K-C1) (output=20 Kohm) (CSQ3921)

●RPH1750-D20K-C1 (LPH-1750-D20K-C1) (output=20 Kohm) (CSQ3922)

●(output=10 Kohm, Special Type ) Linear potentiometer

●RPH-600-D10K-C1 (LPH-600-D10K-C1) (output=10 Kohm) (DME0167)

●RPH-1250-D10K-C1 (LPH-1250-D10K-C1) (output=10 Kohm) (DME0171)

●RPH-1500-D10K-C1 (LPH-1500-D10K -C1)(output=10 Kohm) (DME4989)

●(output=10 Kohm, Special Type ) Linear potentiometer

●RPH-300-D10K-C1 (LPH-300-D10K-C1) (output=10 Kohm) (DME0164)
