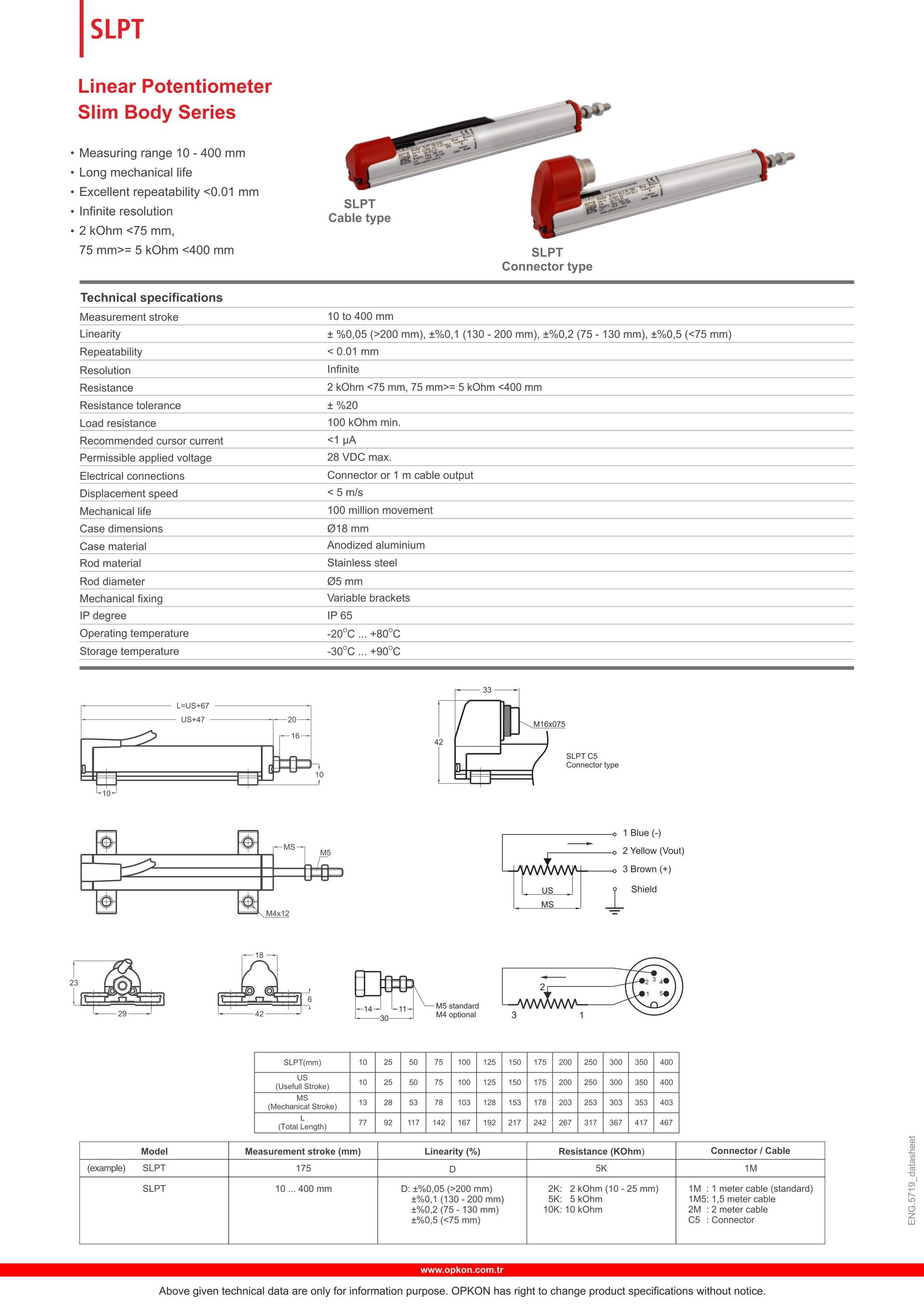

SLPT 카탈로그

●stroke=(10mm~400mm) (IP65)

●linearity=(0.05%)

●repeatability=(0.01mm)

●resolution=(infinite)

●output=(5kohm, 10kohm) (2kohm for 10~25mm)

●Pormissible applied volyang=(DC28V)

●Displacement speed=(5m/s)

●Long mechanical life=(100 million cycles)

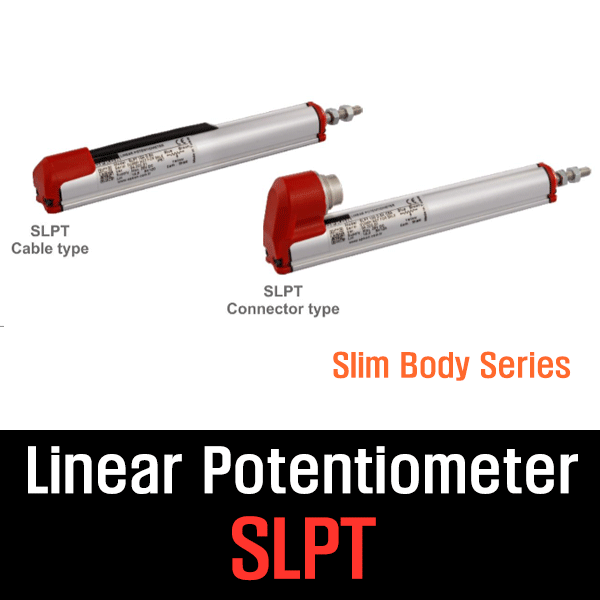

●(output=2 Kohm) Slim Body Type, Linear potentiometer

●SLPT-10-D5K-1M (output=2Kohm) (DME5972)

●SLPT-25-D2K-1M (output=2Kohm) (DME7055)

●SLPT-50-D2K-1M (output=2Kohm) (DME7056)

●(output=5 Kohm) Slim Body Type, Linear potentiometer

●SLPT-75-D5K-1M (output=5Kohm) (DME7057)

●SLPT-100-D5K-1M (output=5Kohm) (DME7058)

●SLPT-125-D5K-1M (output=5Kohm) (DME7059)

●SLPT-150-D5K-1M (output=5Kohm) (DME7060)

●SLPT-175-D5K-1M (output=5Kohm) (DME7061)

●SLPT-200-D5K-1M (output=5Kohm) (DME7062)

●SLPT-250-D5K-1M (output=5Kohm) (DME7063)

●SLPT-300-D5K-1M (output=5Kohm) (DME7064)

●SLPT-400-D5K-1M (output=5Kohm)
