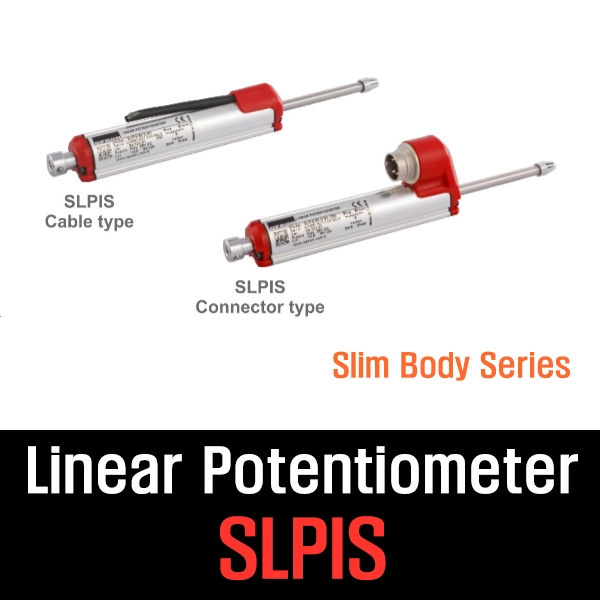

SLPIS●Linear potentiometer-Slim Body Type●OPKON Position Sensor●From Back Pull-Spring Return Type●OPKON스프린리턴 슬림바디 포텐숀 메타●오콘 슬림 리니아 포텐쇼 메타●오콘 슬림 리니아 포텐숀 메타●(stroke=30mm~50mm)●(IP65)●(OPKON)

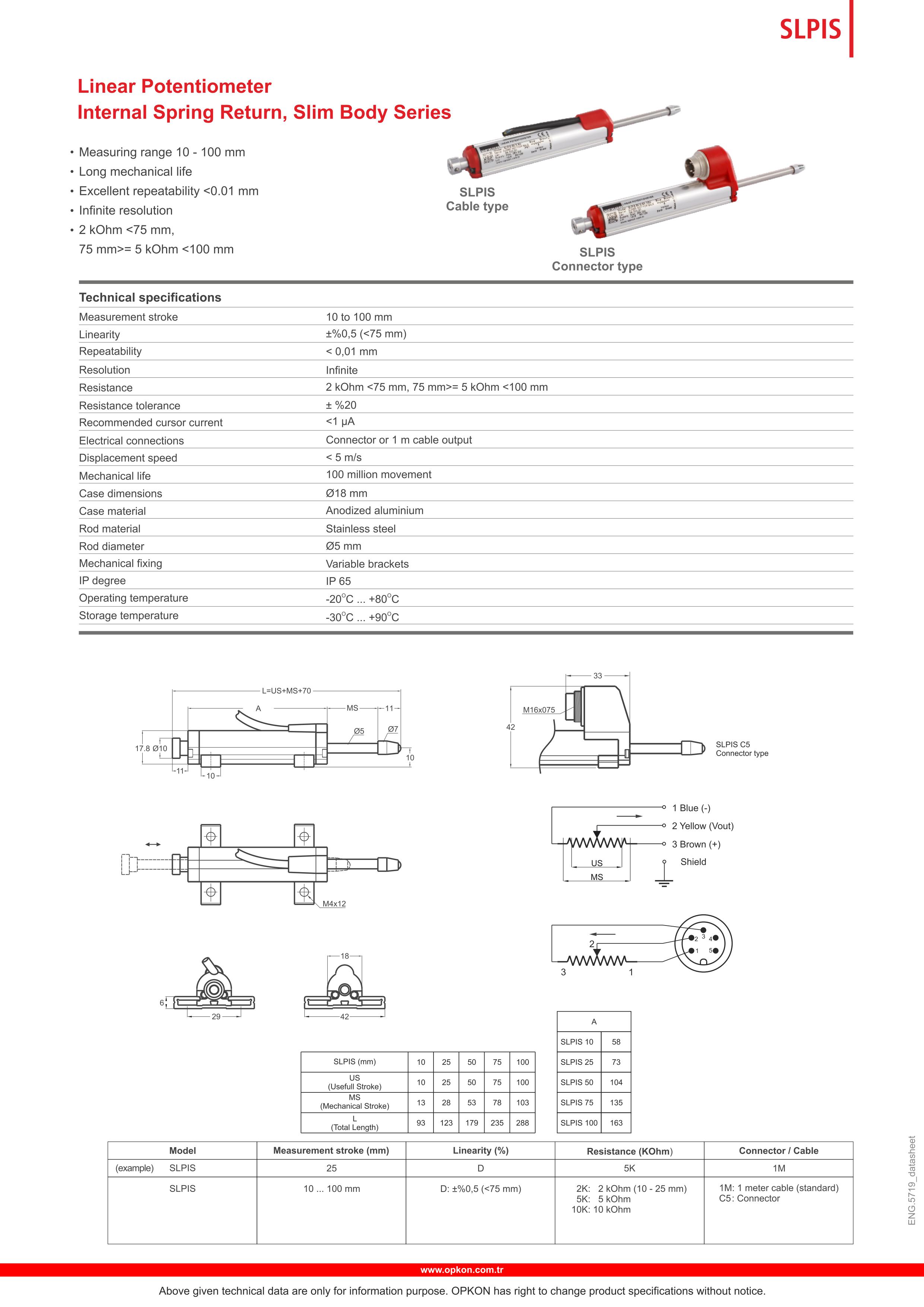

SLPIS 카탈로그

●stroke=(10mm~50mm)

●linearity=(0.05%)

●repeatability=(0.01mm)

●resolution=(infinite)

●output=(2kohm )

●Pormissible applied volyang=(DC28V)

●Displacement speed=(5m/s)

●Long mechanical life=(100 million cycles)

●(SPRING Return, output=2 Kohm )

slim body, Linear potentiometer (IP65)

●SLPIS-10-D2K-1M (output=2 Kohm) (DME9659)

●SLPIS-25-D2K-1M (output=2 Kohm) (CSQ3613)

●SLPIS-50-D2K-1M (output=2 Kohm) (CSQ3528)

●(SPRING Return, output=5 Kohm )

slim body, Linear potentiometer (IP65)

●SLPIS-75-D5K-1M (output=5 Kohm)

●SLPIS-100-D5K-1M (output=5 Kohm)
