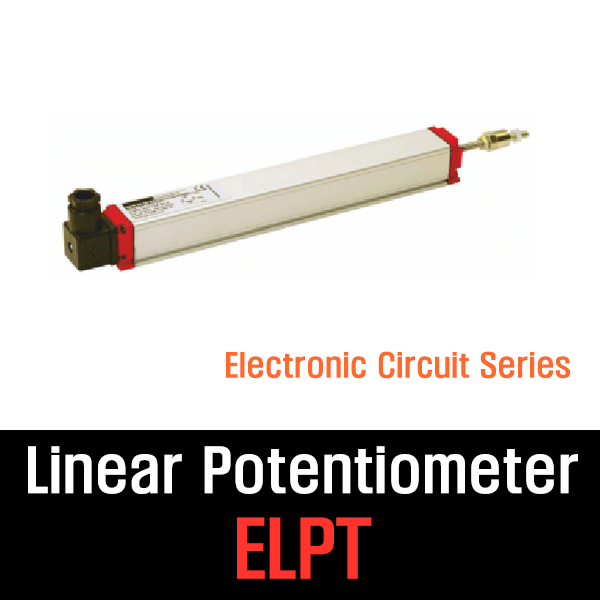

■ELPT●Linear potentiometer Electronic Circuit Type●Magneto Strictive Absolute Position Sensor● OPKON Linear potentiometer● OPKON 리니어 포텐쇼메타●(ERTL)●(stroke=30mm~1250mm)●(IP65)●(OPKON)

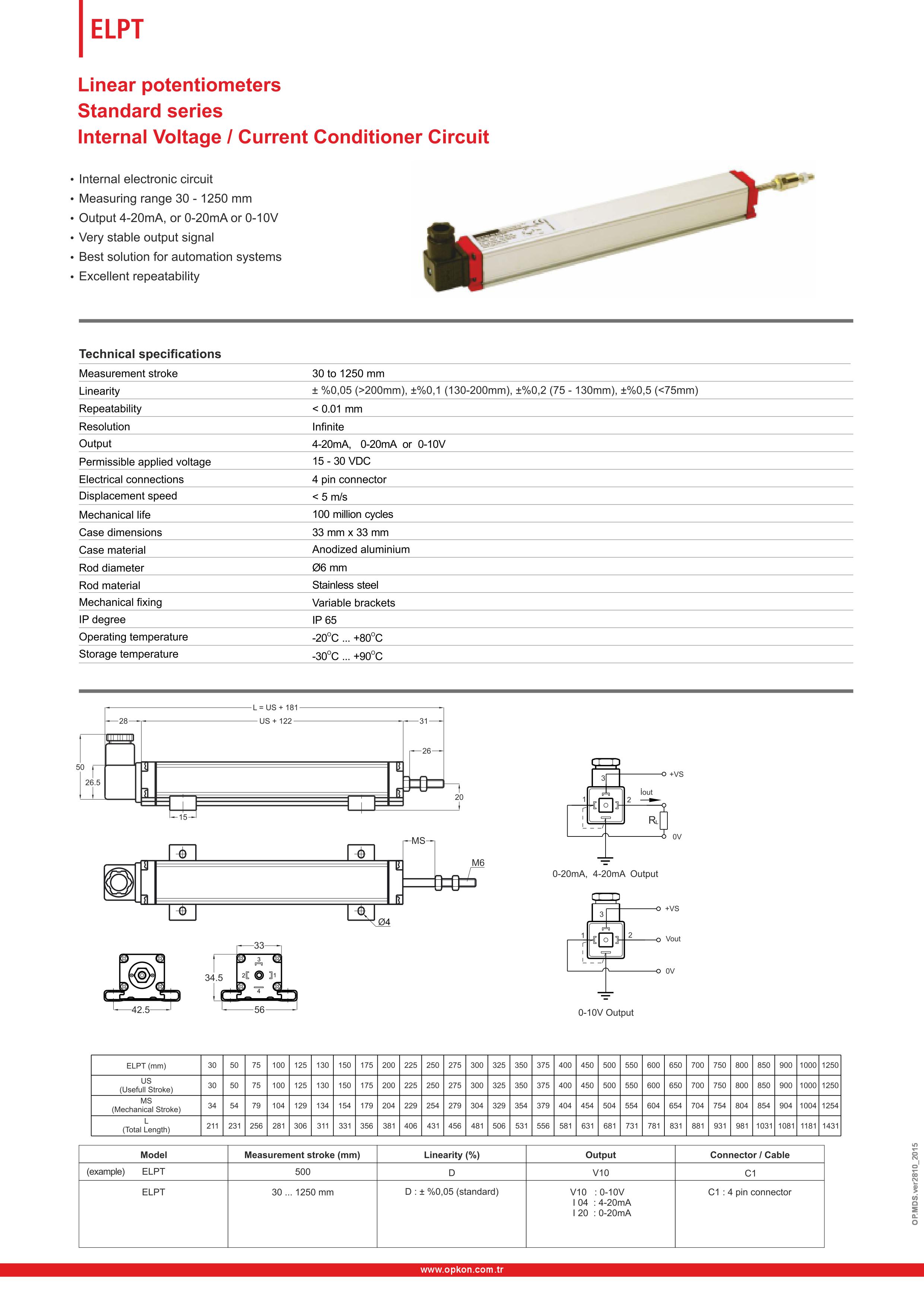

 ELPT 카탈로그

CS1,2-PR 0~10V 결선도 CS1,2-PR 4~20mA 결선도

●stroke=(30mm~1250mm) (IP65) ●repeatability=(0.01mm)

●resolution=(infinite) ●output=(4~30mA, 0~20mA, 0~10V)

●power supply=(15~30VDC)  ●Displacement speed=(5m/s)

●Long mechanical life=(100 million cycles)

●(output=4-20mA) Electronic Circuit Type, Linear potentiometer

●RUBY Series, Advanced Design Linear potentiometer

●ELPT-30-DI4-C1 (ERTL-30-DI4-C1) (DME0173)

●ELPT-50-DI4-C1 (ERTL-50-DI4-C1) (DME0174)

●ELPT-100-DI4-C1 (ERTL-100-DI4-C1) (DME0175)

●ELPT-125-DI4-C1 (ERTL-125-DI4-C1) (DME4536)

●ELPT-150-DI4-C1 (ERTL-150-DI4-C1) (DME0176)

●ELPT-200-DI4-C1 (ERTL-200-DI4-C1) (DME0177)

●ELPT-250-DI4-C1 (ERTL-250-DI4-C1) (DME0178)

●ELPT-300-DI4-C1 (ERTL-300-DI4-C1) (DME0179)

●ELPT-350-DI4-C1 (ERTL-350-DI4-C1) (DME0180)

●ELPT-400-DI4-C1 (ERTL-400-DI4-C1) (DME0181)

●ELPT-450-DI4-C1 (ERTL-450-DI4-C1) (DME3103)

●ELPT-500-DI4-C1 (ERTL-500-DI4-C1) (DME0182)

●ELPT-550-DI4-C1 (ERTL-550-DI4-C1) (CSQ5232)

●ELPT-600-DI4-C1 (ERTL-600-DI4-C1) (DME0183)

●ELPT-650-DI4-C1 (ERTL-650-DI4-C1) (DME8799)

●ELPT-700-DI4-C1 (ERTL-700-DI4-C1) (DME0184)

●ELPT-750-DI4-C1 (ERTL-750-DI4-C1)

●ELPT-800-DI4-C1 (ERTL-800-DI4-C1) (DME0185)

●ELPT-850-DI4-C1 (ERTL-850-DI4-C1)

●ELPT-900-DI4-C1 (ERTL-900-DI4-C1) (CSQ2149)

●ELPT-1000-DI4-C1 (ERTL-1000-DI4-C1) (DME0186)

●ELPT-1250-DI4-C1 (ERTL-1250-DI4-C1)

●(output=0~10V) Electronic Circuit Type, Linear potentiometer

●RUBY Series,  Advanced Design Linear potentiometer

●ELPT-30-DV10-C1(ERTL-30-DV10-C1) (CSQ4188)

●ELPT-50-DV10-C1(ERTL-50-DV10-C1) (CSQ4189)

●ELPT-100-DV10-C1 (ELPT-125-DV10-C1) (CSQ3282)

●ELPT-125-DV10-C1 (ERTL-125-DV10-C1) (CSQ1977)

●ELPT-200-DV10-C1 (ERTL-200-DV10-C1) (DME6687)

●ELPT-250-DV10-C1 (ERTL-250-DV10-C1)

●ELPT-300-DV10-C1 (ERTL-300-DV10-C1)

●ELPT-350-DV10-C1 (ERTL-350-DV10-C1)

●ELPT-400-DV10-C1 (ERTL-400-DV10-C1)

●ELPT-450-DV10-C1 (ERTL-450-DV10-C1)

●ELPT-500-DV10-C1 (ERTL-500-DV10-C1) (DME5168)

●ELPT-550-DV10-C1 (ERTL-550-DV10-C1)

●ELPT-600-DV10-C1 (ERTL-600-DV10-C1)

●ELPT-650-DV10-C1 (ERTL-650-DV10-C1)

●ELPT-700-DV10-C1 (ERTL-700-DV10-C1)

●ELPT-750-DV10-C1 (ERTL-750-DV10-C1)

●ELPT-800-DV10-C1 (ERTL-800-DV10-C1)

●ELPT-850-DV10-C1 (ERTL-850-DV10-C1)

●ELPT-900-DV10-C1 (ERTL-900-DV10-C1)

●ELPT-1000-DV10-C1 (ERTL-1000-DV10-C1)

●ELPT-1250-DV10-C1 (ERTL-1250-DV10-C1)

● ELPT(ERTL) (CS2-PR 인디게이터 결선도) (4-20mA) (0-10V)

● ELPT(ERTL) (CS1-PR 인디게이터 결선도) (4-20mA) (0-10V)

●MN-603-A (MAD1277)

(Power= DC12V~DC24V) (input=0~5KΩ with 0~10KΩ) (Output=4~20mA)

●MN-603-V1 (MAD1278)

(Power= DC12V~DC24V) (input=0~5KΩ with 0~10KΩ )(Output=0~5V)

●MN-603-V2 (MAD1279)

(Power= DC12V~DC24V) (input=0~5KΩ with 0~10KΩ) (Output=0~10V)
