SR101●SR105●SR401●SR405●SR101●SR201●SR301●SR401●SR501●SR100●SR200●SR300●SR400●SR500●Magnetic proximity type sensor●다이요 오토 스위치●다이요 근접 센서●다이요 근접 스위치●오토 센서●다이요 에어 실린더 스위치●위치 검출 마그네틱근접 센서●(Taiyo,DME)

Auto switch 카탈로그 SR 카탈로그 R01 R02 R03사이즈

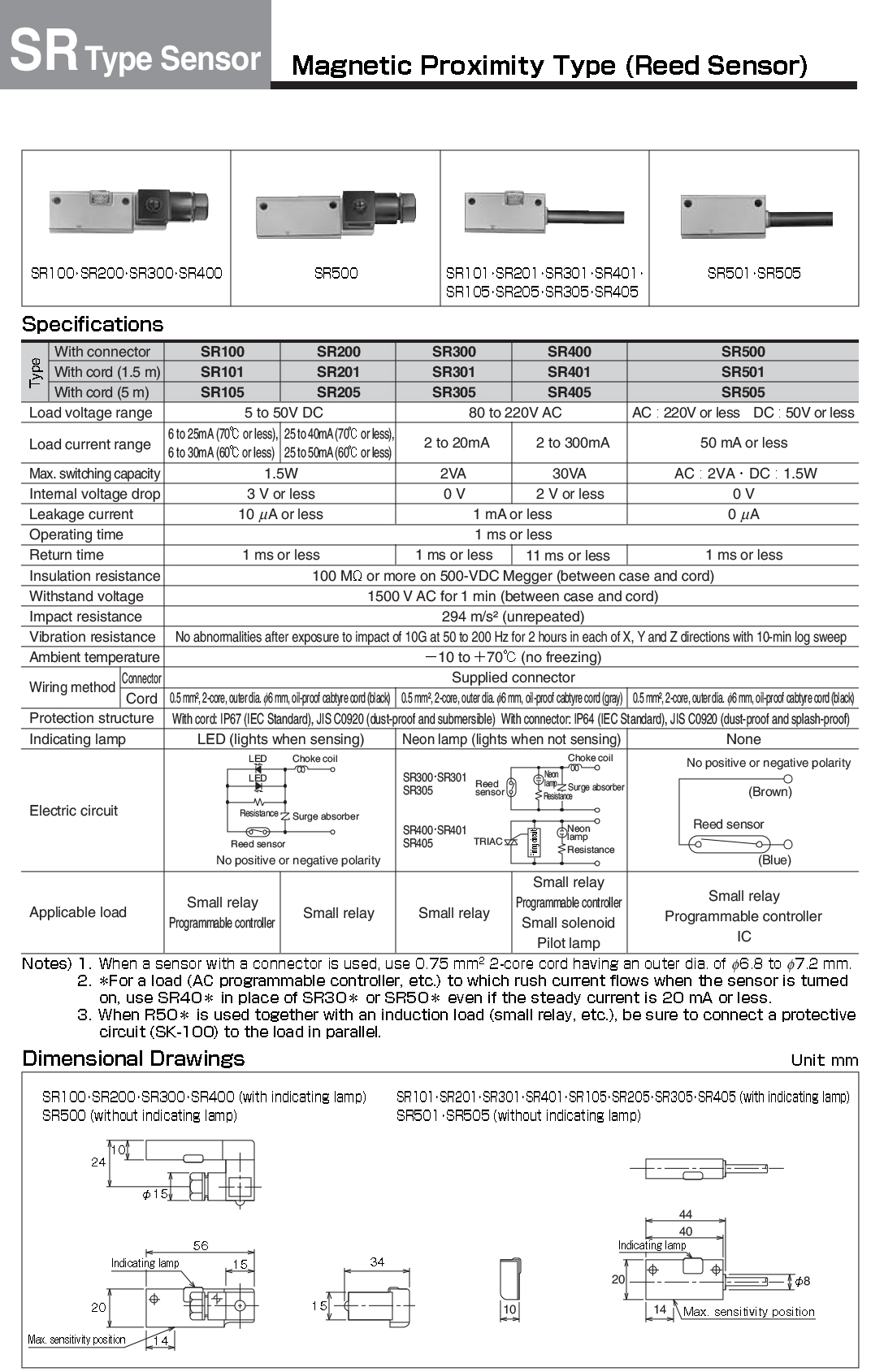

●only Magnetic proximity  sensor (voltang=DC5~50V)

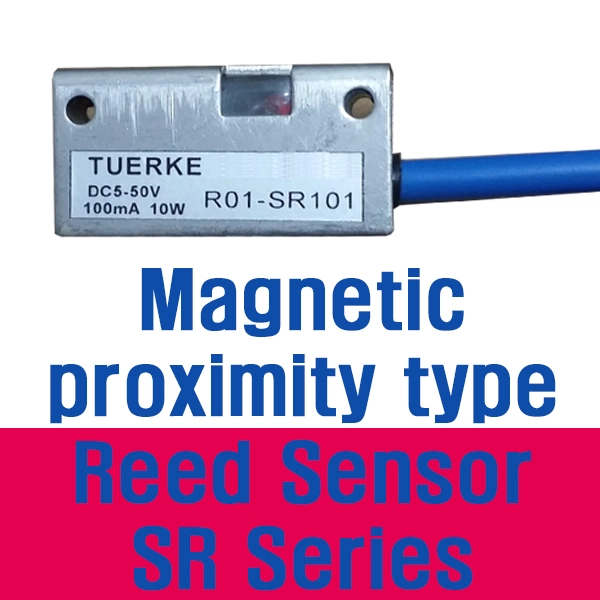

●SR101 (voltang=DC5~50V) (wire=1m) (csq1577)

●SR105 (voltang=DC5~50V) (wire=5m) (DME6619)

● Magnetic proximity sensor  with bracket (voltang=DC5~50V)

●R01-SR105 (voltang=DC5~50V) (wire=5m) (csq1861)

●R02-SR105 (voltang=DC5~50V) (wire=5m) (csq1860)

●R03-SR105 (voltang=DC5~50V) (wire=5m) (csq1859)

●R03-SR101 (voltang=DC5~50V) (wire=1m) (DME1144)

●only Magnetic proximity sensor (voltang=AC80~200V)

●SR401 (voltang=AC80~200V) (wire=1m) (DME6420)

●SR405 (voltang=AC80~200V) (wire=5m) (DME3899)

●Magnetic proximity sensor  with bracket (voltang=AC80~200V)

●R01-SR405 (voltang=DC5~50V) (wire=5m) (csq1886)

●R02-SR405 (voltang=DC5~50V) (wire=5m) (csq1888)

●R03-SR405 (voltang=DC5~50V) (wire=5m) (csq1864)

●SR100  ●SR200  ●SR300  ●SR400  ●SR500

●SR101  ●SR201  ●SR301  ●SR401  ●SR501

●SR105  ●SR205  ●SR305  ●SR405  ●SR505

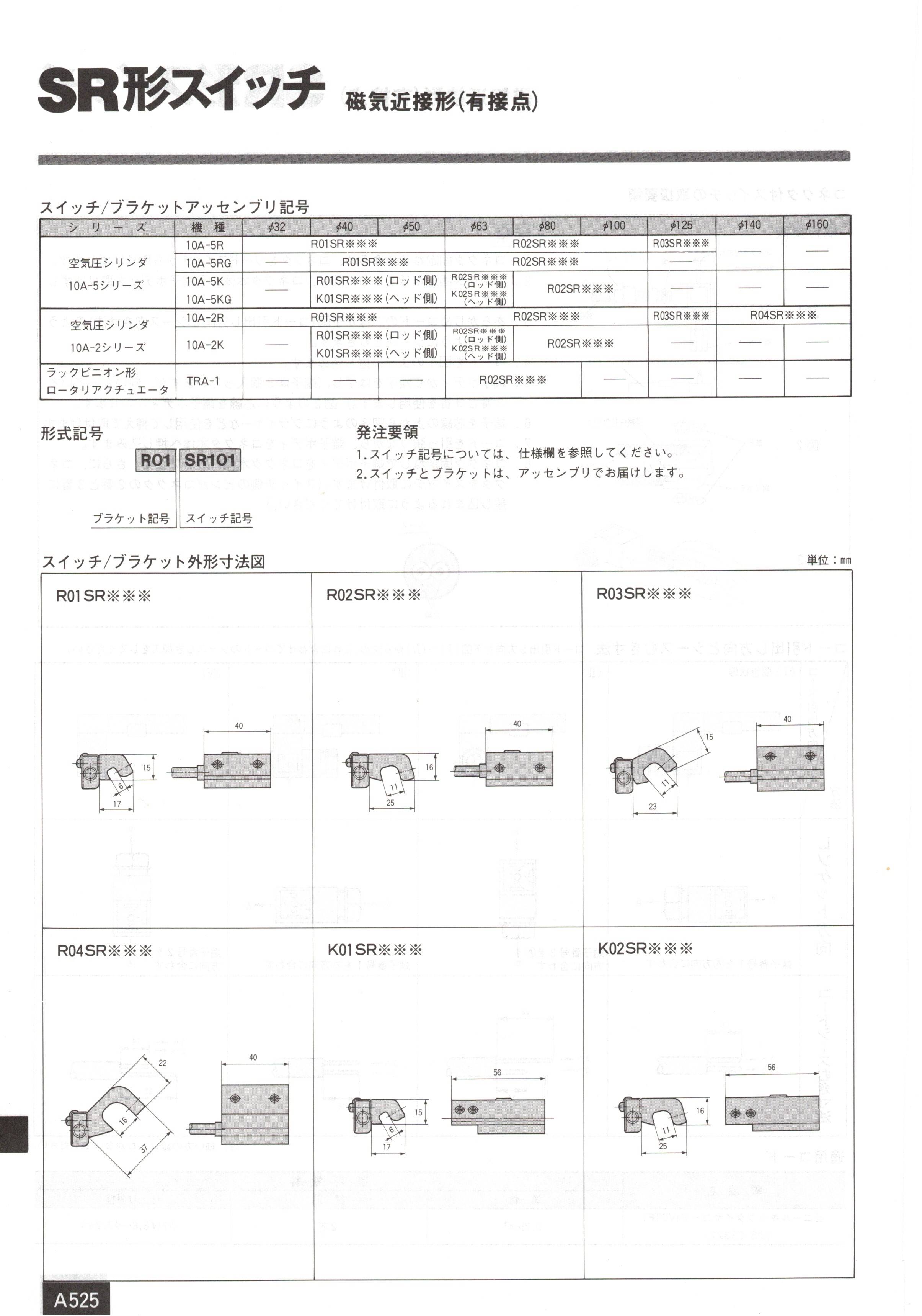

●R01 (mount=round 6mm, wide 17mm, highiy 15mm)

●R02 (mount=round 11mm, wide  25mm, highiy 16mm)

●R03 (mount=round 11mm, wide 23mm, highiy 15mm)

●R04 (mount=round 16mm, wide 37mm, highiy  22mm)

●K01SR (mount=round 5mm, wide 17mm, highiy  15mm)

●K02SR (mount=round 11mm, wide 25mm, highiy  16mm)
