●(DC24V)(speed=5mm/s)●HB-DJ806-24(YHBA6-24)●(KZ608C with SK508)●(KZ608W with Remote Linear actuator)●HONGBA 전동실린더●HONGBA 전기실린더●(speed=max 60mm/S)●(stroke=50mm~600mm)●(PUSH lond=max 1200N) )●(HONGBA)

관련자료 (CLICK)

●HB-DJ806-24 (YHBA6-24) (operation=build in limit switch)

(PUSH lond=max 1200N) (PULL lond=max1000N)

(speed=5mm/s~60mm/S) (stroke=50mm~600mm)

●(24VDC) (speed=5mm/s) Linear actuator

●2wire+male 2pin connection

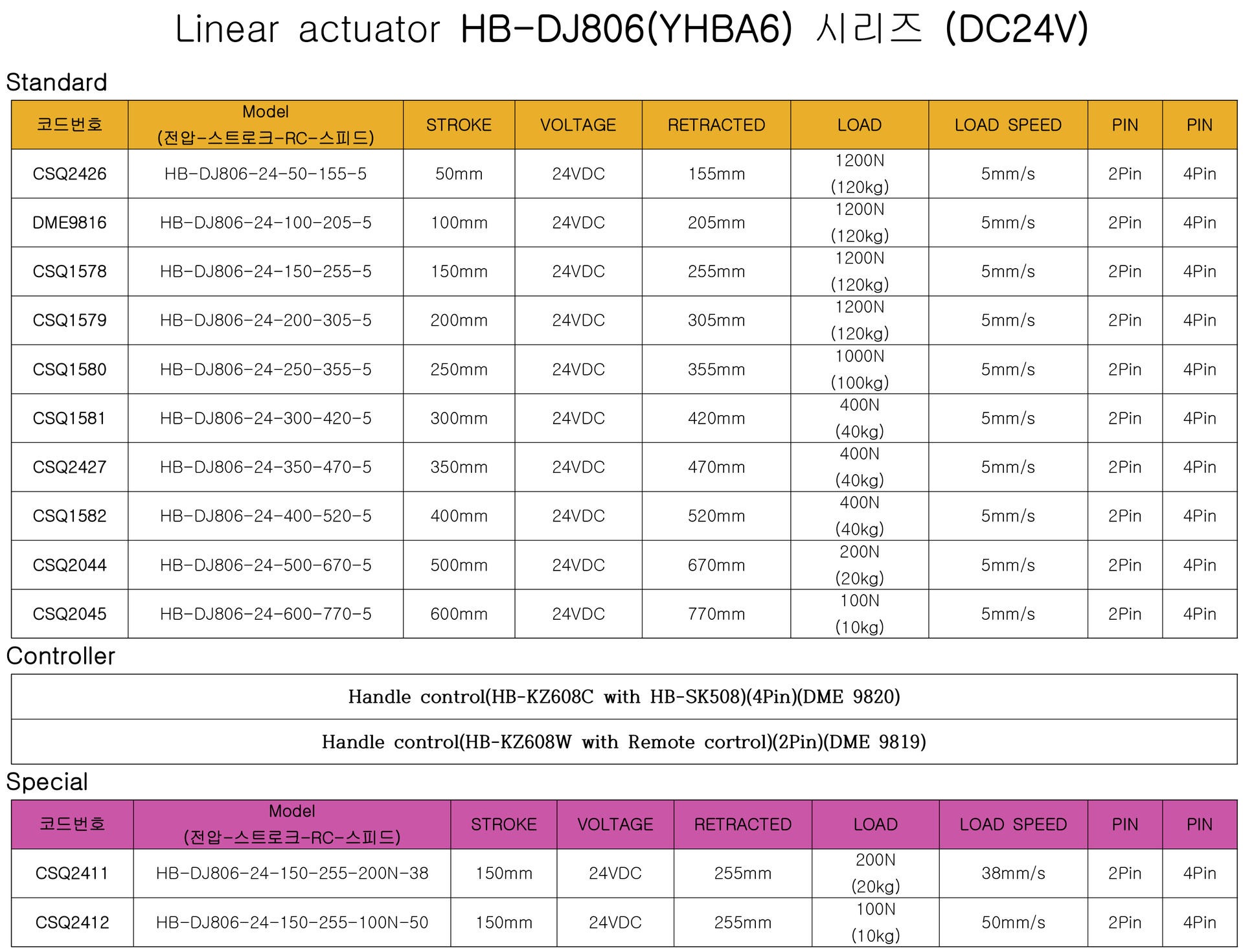

●HB-DJ806-24-50-155-5.5-1200N (CSQ2426)

(24VDC)(load=1200N) (stroke=50mm) (retracted=155mm)

●HB-DJ806-24-100-205-5-1200N (DME9816)

(24VDC)(load=1200N) (stroke=100mm) (retracted=205mm)

●HB-DJ806-24-150-255-5-1200N (CSQ1578)

(24VDC) (load=1200N) (stroke=150mm) (retracted=255mm)

●HB-DJ806-24-200-305-5-1200N (CSQ1579)

(24VDC) (load=1200N) (stroke=200mm) (retracted=305mm)

●HB-DJ806-24-250-355-5-1000N (CSQ1580)

(24VDC)(load=1000N)(stroke=250mm)(retracted=355mm)

●HB-DJ806-24-300-420-5-400N (CSQ1581)

(24VDC) (load=400N) (stroke=300mm)( retracted=420mm)

●HB-DJ806-24-350-470-5-400N (CSQ2427)

(24VDC) (load=400N) (stroke=350mm) (retracted=470mm)

●HB-DJ806-24-400-520-5-400N (CSQ1582)

(24VDC) (load=400N) (stroke=400mm) (retracted=520mm)

●HB-DJ806-24-450-570-5-200N (CSQ2493)

(24VDC) (load=200N) (stroke=450mm) (retracted=570mm)

●HB-DJ806-24-500-670-5-100N (CSQ2044)

(24VDC) (load=100N) (stroke=500mm) (retracted=670mm)

●HB-DJ806-24-550-680-5-100N (CSQ2494)

(24VDC) (load=100N) (stroke=550mm) (retracted=680mm)

●HB-DJ806-24-600-770-5-100N (CSQ2045)

(24VDC) (load=100N) (stroke=600mm) (retracted=770mm)

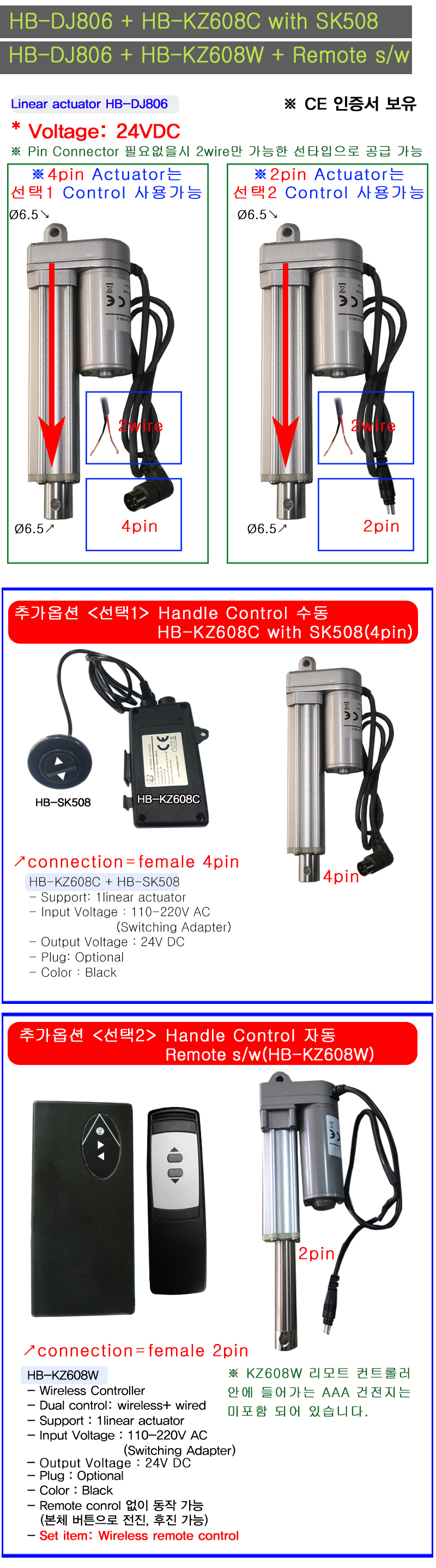

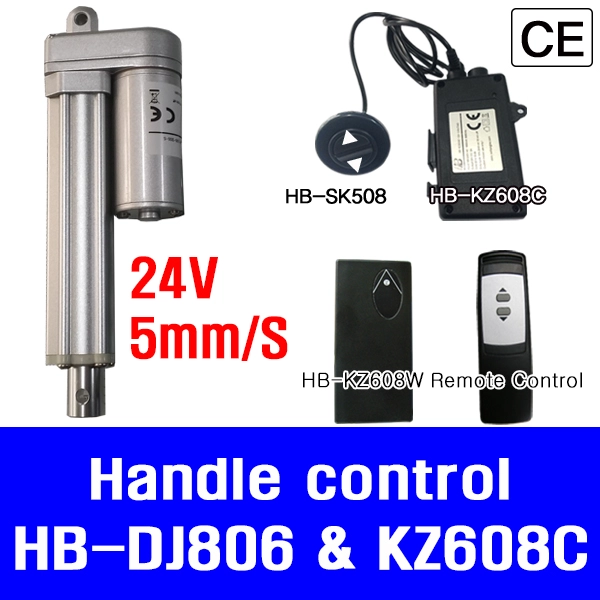

●(KZ608C) Cortrol s/w (manual)

●HB-(KZ608C with SK508) (DME9820)

(input voltage=110~220VAC) (output voltage=24VDC)

●(KZ608W) Cortrol s/w (Remote cortrol )

●HB-(KZ608W with Remote cortrol s/w) (DME9819)

(input voltage=110~220VAC) (output voltage=24VDC)

●DC Linear actuator ●리니어 액츄에이터 ●일렉트로닉 액츄에이터 실린더

●DC 모터형 실린더 ●DC 액추에이터 실린더 ●DC모터형 전동실린더

●태양광설치 ●Electronic Cylinder(HBDJ806)
