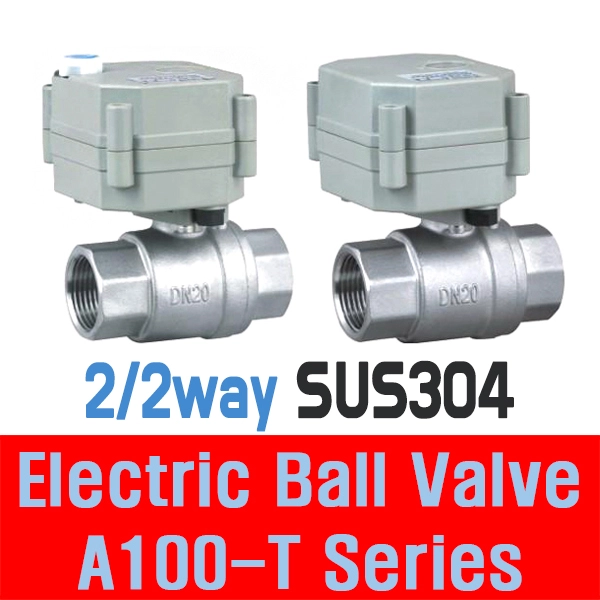

A100-T●(A100T)●2/2way Electric Ball Valve●RFS 전기 볼 밸브●RFS 전동 볼 밸브●RFS Electric Ball Valve●RFS 스텐레스 볼 밸브●RFS 스텐레스 밸브●RFS 스텐레스 전동 볼 벨브●RFS 스텐레스 전기 볼 밸브●(NPT11/4 F) (NPT11/2) (NPT2 F)●(0~10bar)●(RFS)

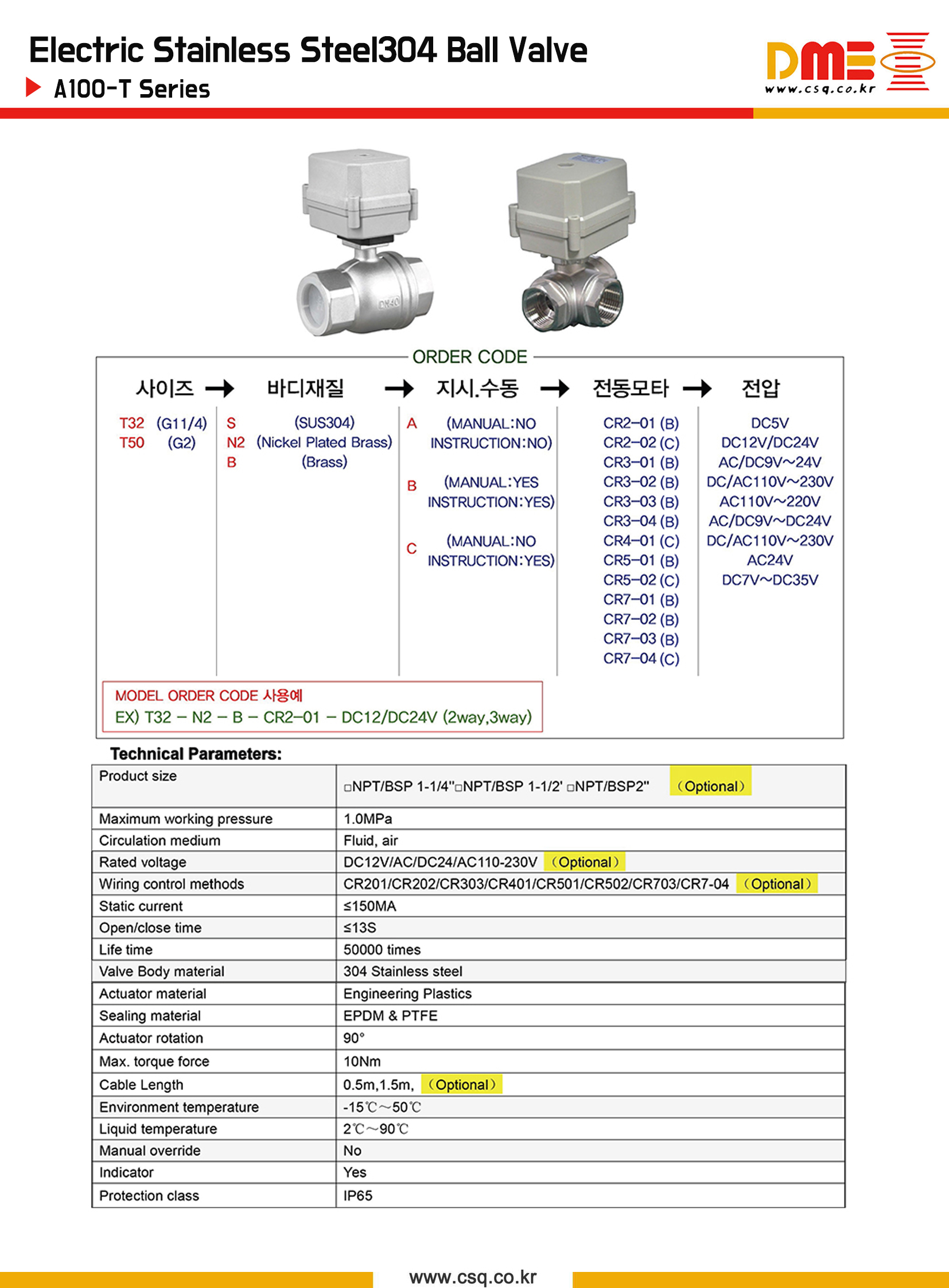

A100-T Series 카탈로그 A100T Series 코드번호

Electric Ball Valve 전체 카탈로그

  Electric Ball Valve 전체 코드번호

●(2/2way, Electric Ball Valve)

(on/off time=13S) (NO manual) (Yes instructionl)

(body=only SUS304) (seat=PFTE) (torque=10 Nm)

●A100-T32-S2-C-CR201-(2wires)-(voltage=DC24V)

(NPT 1-1/4 Female) (no power reset) (DME7089)

●A100-T32-S2-C-CR202-(2wires)-(voltage=AC110~230V)

(NPT 11/4  Female) (power reset) (DME7105)

●A100-T32-S2-C-CR502-(5wires)-(voltage=DC/AC110V~230V)

(NPT 11/4  Female) (power reset) (DME7087)

●(2/2way, Electric Ball Valve)

(on/off time=13S) (NO manual) (Yes instructionl)

(body=only SUS304) (seat=PFTE) (torque=10 Nm)

●A100-T40-S2-C-CR201-(2wires)-(voltage=DC24V)

(NPT 11/2  Female) (no power reset) (DME8462)

●A100-T40-S2-C-CR202-(2wires)-(Voltage=AC/DC9V~24V)

(NPT 11/2 F Female) (power reset) (DME8469)

●A100-T40-S2-C-CR202-(2wires)-(voltage=AC110/220V)

(NPT 11/2  Female) (power reset) (DME8468)

●(2/2way, Electric Ball Valve)

(on/off time=13S) (NO manual) (Yes instructionl)

(body=only SUS304) (seat=PFTE) (torque=10 Nm)

●A100-T50-S2-C-CR201-(2wires)-(voltage=DC24V)

(NPT 2  Female) (no power reset) (DME7090)

●NO-A100-T50-S2-C-NO-CR202-(2wires)-(voltage=AC110V/AC220V)

(NPT 2  Female) (power reset) (DME8467)

●A100-T50-S2-C-CR202-(2wires)-(voltage=AC/DC9-35V)

(NPT 2 Female) (power reset) (DME7092)

●A100-T50-S2-C-CR501-(5wires,feedback)-(voltage=DC24V)

(NPT 2  Female) (no power reset) (CSQ0046)

●A100-T50-S2-C-CR502-(5wires,feedback)-(voltage=DC/AC110V~230V)

(NPT 2 Female) (power reset) (DME8471)

●A100-T50-S2-C-CR502-(5wires ,feedback)-(voltage=DC24V)

(NP T2 Female) (power reset) (DME7088)
