A20-T-(Nickel plated)●A20T●3/2way Electric Ball Valve●RFS 일렉트로릭 전동 볼 밸브●RFS 일렉트로릭 볼 밸브●3/2way,전동 볼밸브●(NPT1/2 F)(NPT3/4 F)(NPT1 F)●(0~10bar)●(RFS)

A20-T15-N3L & A20-T15-N3T  카탈로그

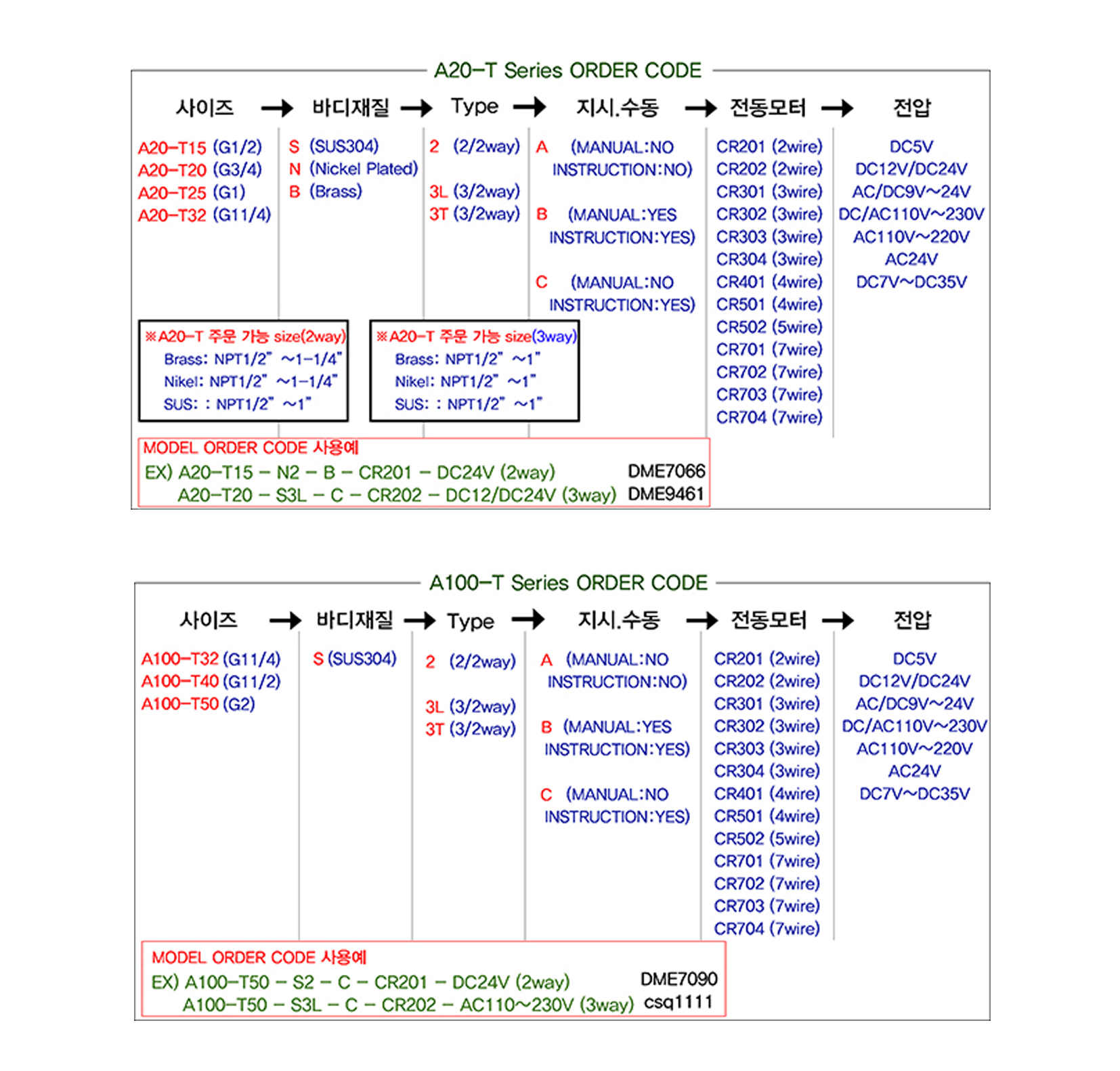

A20-T Series 코드번호

Electric Ball Valve 전체 카탈로그

Electric Ball Valve 전체 코드번호

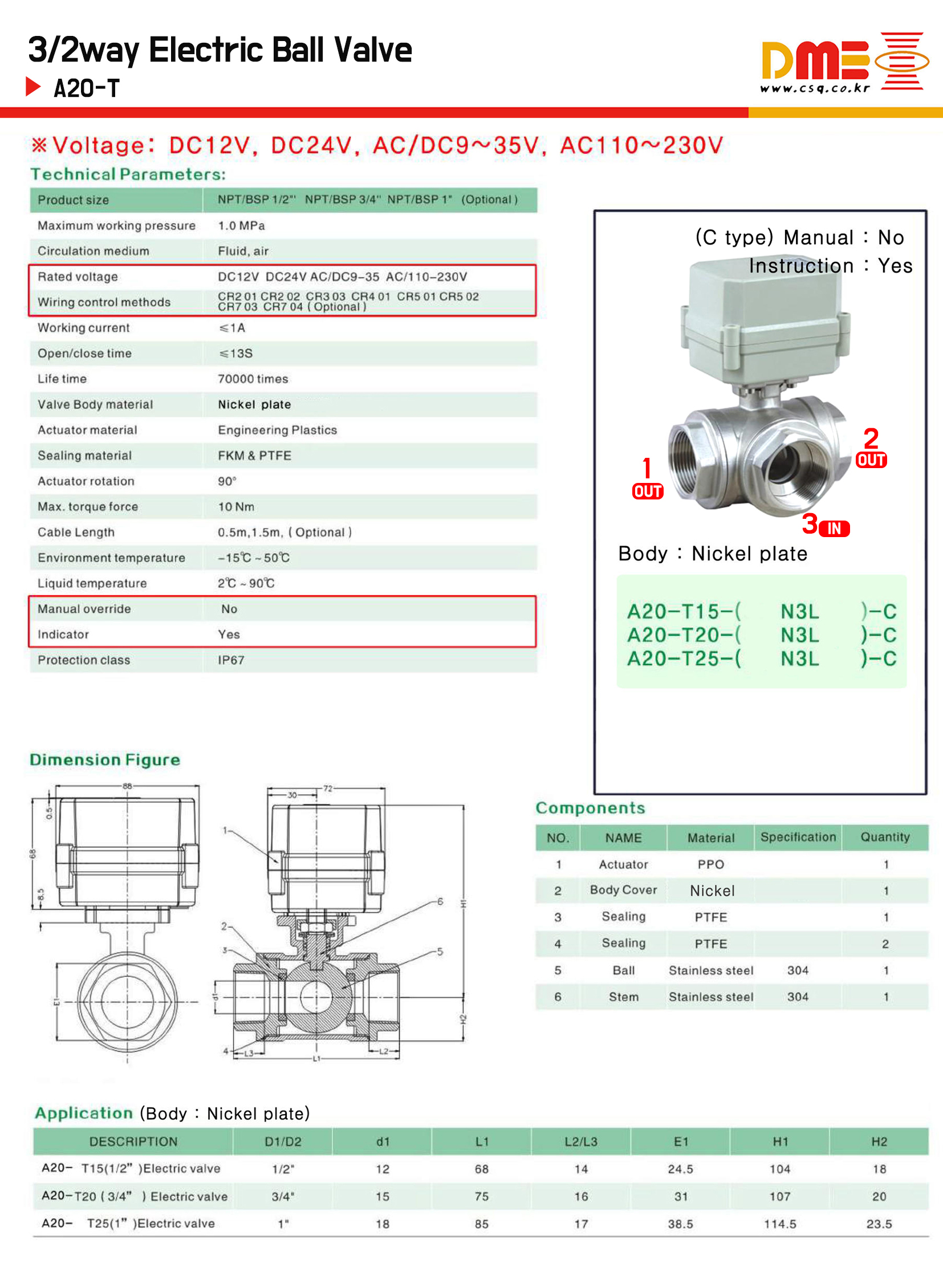

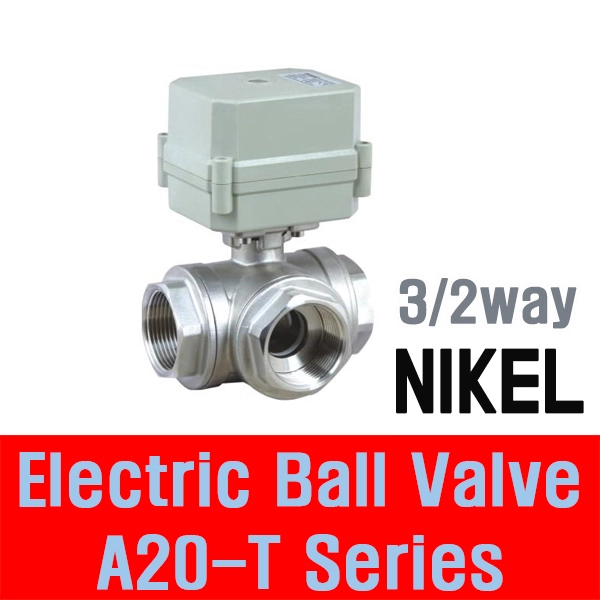

●(3/2way, L type) Electric Ball Valve (power reset, 2wire)

(on/off time=13S)

(NO manual) (with open/close Indicator)

(body=nickel) (seat=PFTE) (torque=2Nm)

●A20-T15-N3L-C-CR202-(2wires)-(voltage=AC110~230V)

(NPT1/2 Female) (DME9455)

●A20-T15-N3L-C-CR202-(2wires)-(voltage=DC9~24V)

(NPT1/2 Female) (CSQ0059)

●A20-T20-N3L-C-CR202-(2wires)-(voltage=AC110~230V)

(NPT3/4 Female) (CSQ1699)

●A20-T20-N3L-C-CR202-(2wires)-(voltage=AC/DC9V~24V)

(NPT3/4 Female) (CSQ1707)

●A20-T25-N3L-C-CR202-(2wires)-(voltage=AC110~230V)

(NPT 1 Female) (CSQ1700)

●A20-T25-N3L-C-CR202-(2wires)-(voltage=AC/DC9V~24V)

(NPT 1 Female) (CSQ1708)

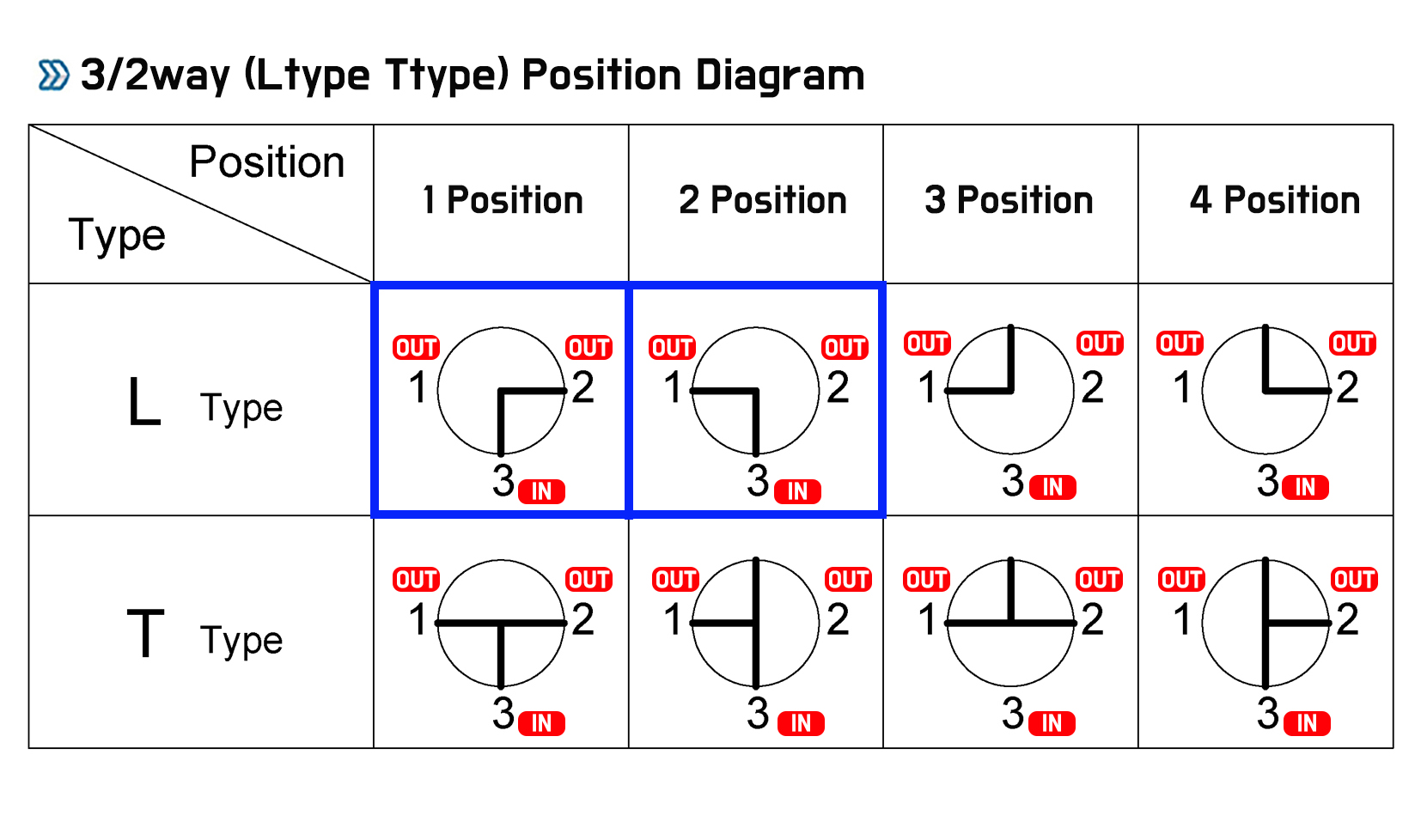

●A20T-L type (Body=N2 /Brass) (NPT 1/2 F /NPT 3/4 F /NPT 1 F)

●A20T-T type (Body=N2 /Brass) (NPT 1/2 F /NPT 3/4 F /NPT 1 F)
