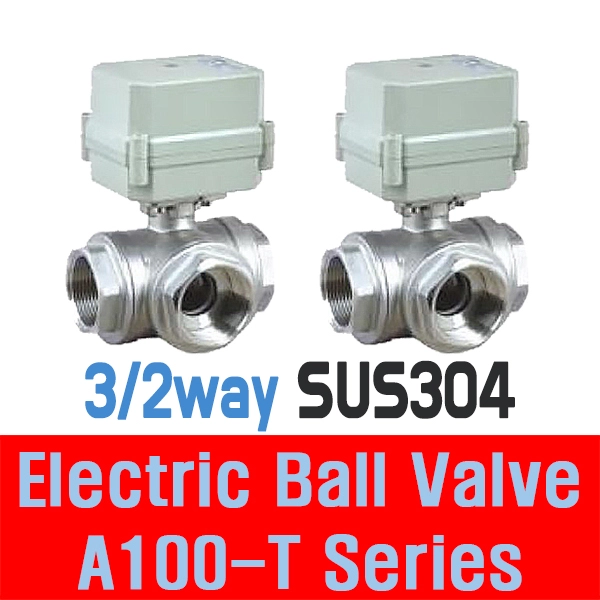

A100-T●A100T●3/2way Electric Ball Valve●3/2way 전기 볼 밸브●3/2way 전동 볼 밸브●RFS Electric Ball Valve●RFS 스텐레스 볼 밸브●RFS 스텐레스 밸브●RFS 스텐레스 전동 볼 벨브●RFS 스텐레스 전기 볼 밸브●(NPT1/2 F)(NPT3/4)(NPT1 F)●(0~10bar)●(RFS)

A100-T Series 카탈로그  A100-T Series 코드번호

Electric Ball Valve 전체 카탈로그

  Electric Ball Valve 전체 코드번호

●(3/2way, Electric Ball Valve) (NPT 1/2 Female )

(on/off time=13S) (torque=10 Nm) (Body=Only SUS304) (seat=PFTE)

(NO manual) (Yes instructionl)

●A100-T15-S3L-C-CR202-(2wires)-(voltage=AC/DC9V~24V)

 (power reset) (NPT1/2 Female) (DME9460)

●A100-T15-S3L-C-CR202-(2wires)- (voltage=AC110~230V)

(power reset) (NPT 1/2 Female) (DME9457)

●A100-T15-S3L-C-CR401-(4wires)-(voltage=AC110~230V)

(no power reset) (NPT 1/2 Female) (DME9474)

●A100-T15-S3L-C-CR501-(5wires, feedback)-(voltage=DC24V)

(no power reset) (NPT 1/2 Female) (DME9466)

●A100-T15-S3L-C-CR502-(5wires,feedback)-(voltage=DC/AC110V~230V)

(power reset) (NPT 1/2 Female) (DME9463)

●A100-T15-S3L-C-CR502-(5wires, feedback)-(voltage=AC/DC9V~24V) (power reset) (NPT 1/2 Female )

●(3/2way, Electric Ball Valve) (NPT3/4 Female)

(on/off time=13S) (torque=10 Nm) (Body=Only SUS304) (seat=PFTE)

(no manual) (yes instructionl)

●A100-T20-S3L-C-CR202-(2wires)-(voltage=AC/DC9V~24V)

(power reset) (NPT 3/4 Female) (DME9461)

●A100-T20-S3L-C-CR202-(2wires)-(voltage=AC110~230V)

(power reset) (NPT 3/4 Female) (DME9458)

●A100-T20-S3L-C-CR401-(4wires)-(voltage=AC110~230V)

(no power reset) (NPT 3/4 Female) (DME9475)

●A100-T20-S3L-C-CR501-(5wires, feedback)-(voltage=DC24V)

(no power reset) (NPT 3/4 Female) (DME9467)

●A100-T20-S3L-C-CR502-(5wires,,feedback)-(voltage=DC/AC110V~230V) (power reset)

(NPT 3/4Female) (DME9464)

●A100-T20-S3L-C-CR502-(5wires, feedback)-(voltage=AC/DC9V~24V) (power reset) (NPT 3/4 Female)

●(3/2way, Electric Ball Valve) (NPT 1 Female)

(on/off time=13S) (torque=10 Nm) (Body=Only SUS304) (seat=PFTE)

(NO manual) (Yes instructionl)

●A100-T25-S3L-C-CR202-(2wires)-(voltage=AC/DC9V~24V)

(power reset) (NPT 1 Female) (DME9462)

●A100-T25-S3L-C-CR202-(2wires)-(voltage=AC110~230V)

(power reset) (NPT 1 Female) (DME9459)

●A100-T25-S3L-C-CR401-(4wires)-(voltage=AC110~230V)

(no power reset) (NPT 1 Female) (DME9476)

●A100-T25-S3L-C-CR502-(5wires, feedback)-(voltage=AC/DC9V~DC24V) (power reset) (NPT 1 Female) (DME9468)

●A100-T25-S3L-C-CR502-(5wires, feedback )-(voltage=DC/AC110V~230V) (power reset) (NPT 1 Female) (DME9465)

●A100-T25-S3L-C-CR502-(5wires, feedback )-(voltage=AC/DC9V~24V) (power reset) (NPT 1 Female )

●(3/2way) Electric Ball Valve (NPT 11/2 Female) (생산중단,주문사양)

(on/off time=13S) (torque=10 Nm) (Body=Only SUS304) (seat=PFTE)

(NO manual) (Yes instructionl)

●A100-T40-S3L-C-CR202-(2wires)-(voltage=AC110~230V)

(power reset) (NPT 11/2 Female) (CSQ1110)

●A100-T40-S3L-C-CR202-(2wires)-(voltage=AC1/DC9V~24V)

(power reset) (NPT 11/2Female)

●(3/2way) Electric Ball Valve (NPT 2 Female) (생산중단,주문사양)

(on/off time=13S) (torque=10 Nm) (Body=Only SUS304) (seat=PFTE)

(NO manual) (Yes instructionl)

●A100-T50-S3L-C-CR202-(2wires)-(voltage=AC110~230V)

(power reset) (NPT 2 Female) (CSQ1111)

●A100-T50-S3L-C-CR202-(2wires)-(voltage=AC/DC9V~24V)

(power reset) (NPT 2 Female)
