SB115-025-(body=Aluminium)●(SB115025-08)●2/2way NC Solenoid Valve●RFS 에어 솔레노이드 밸브●RFS 미니 솔레노이드 밸브●RFS 소형 솔레노이드 밸브●(G1/4 F)●(0~8bar)●(RFS)

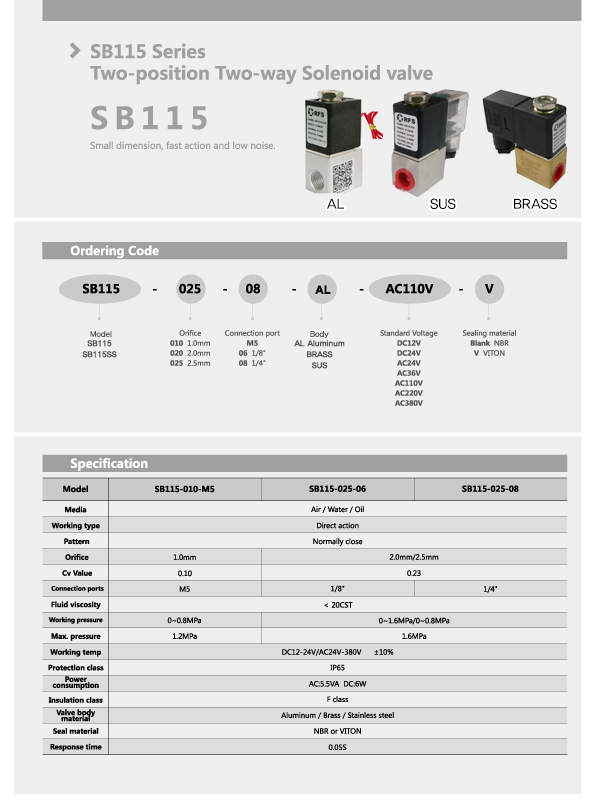

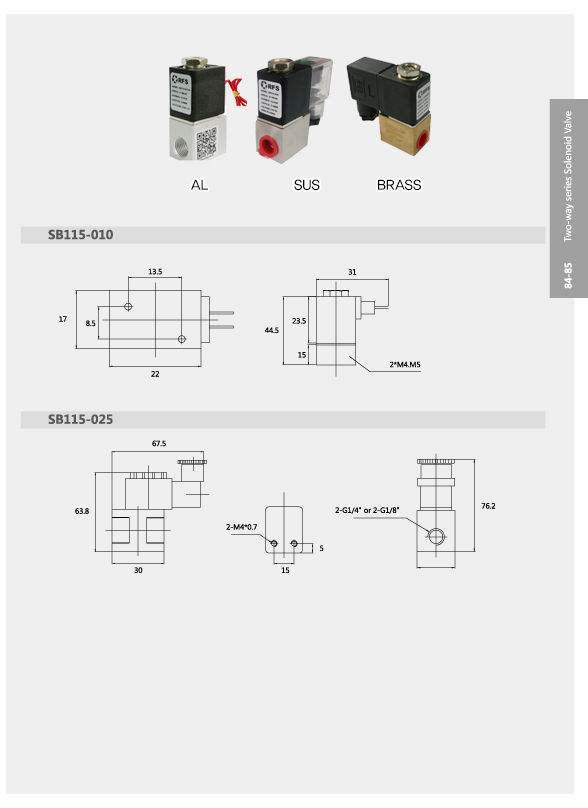

 SB115 Series 카탈로그

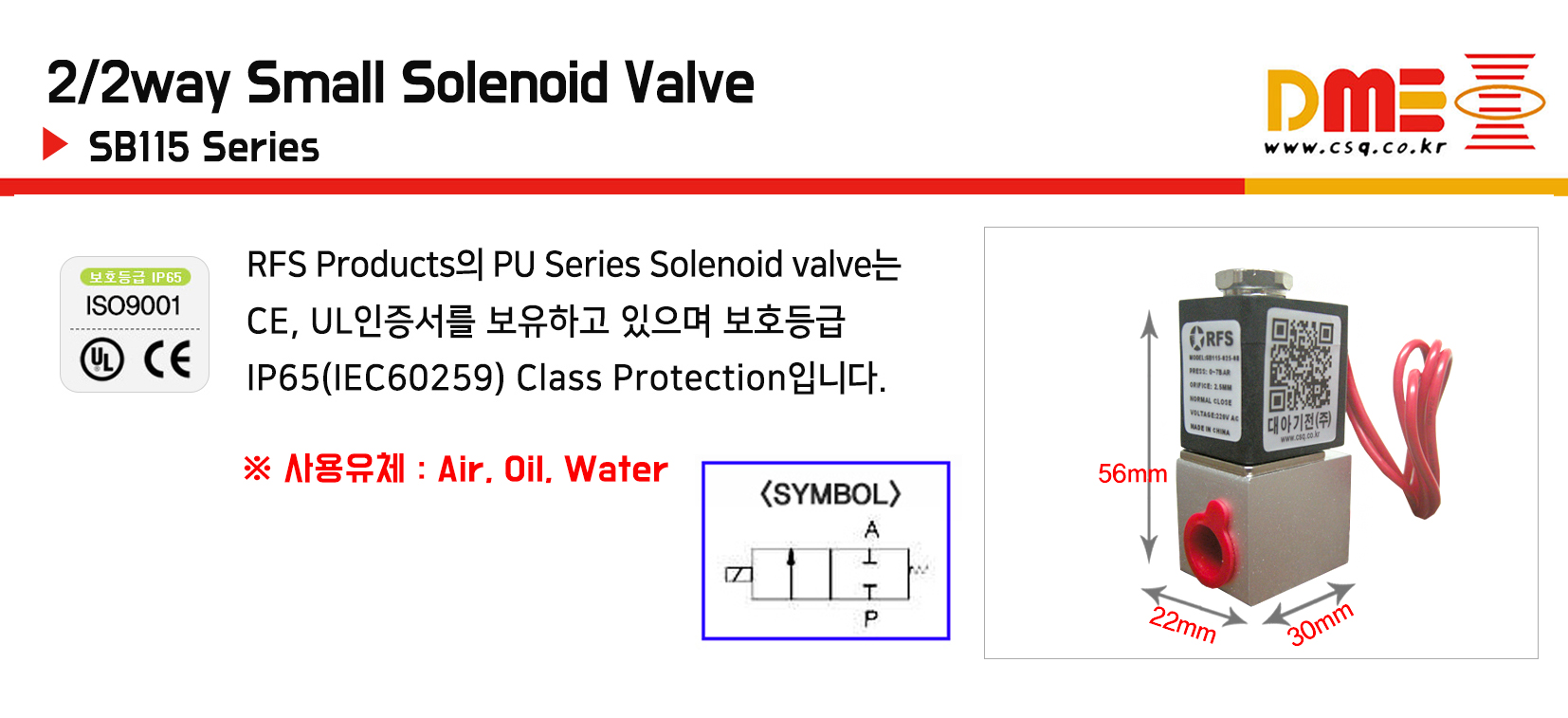

●(2/2way, NC) Aluminium solenoid valve (lead wire type)

(orifice=2.5mm) (pressure=0~8bar) (seal=NBR)

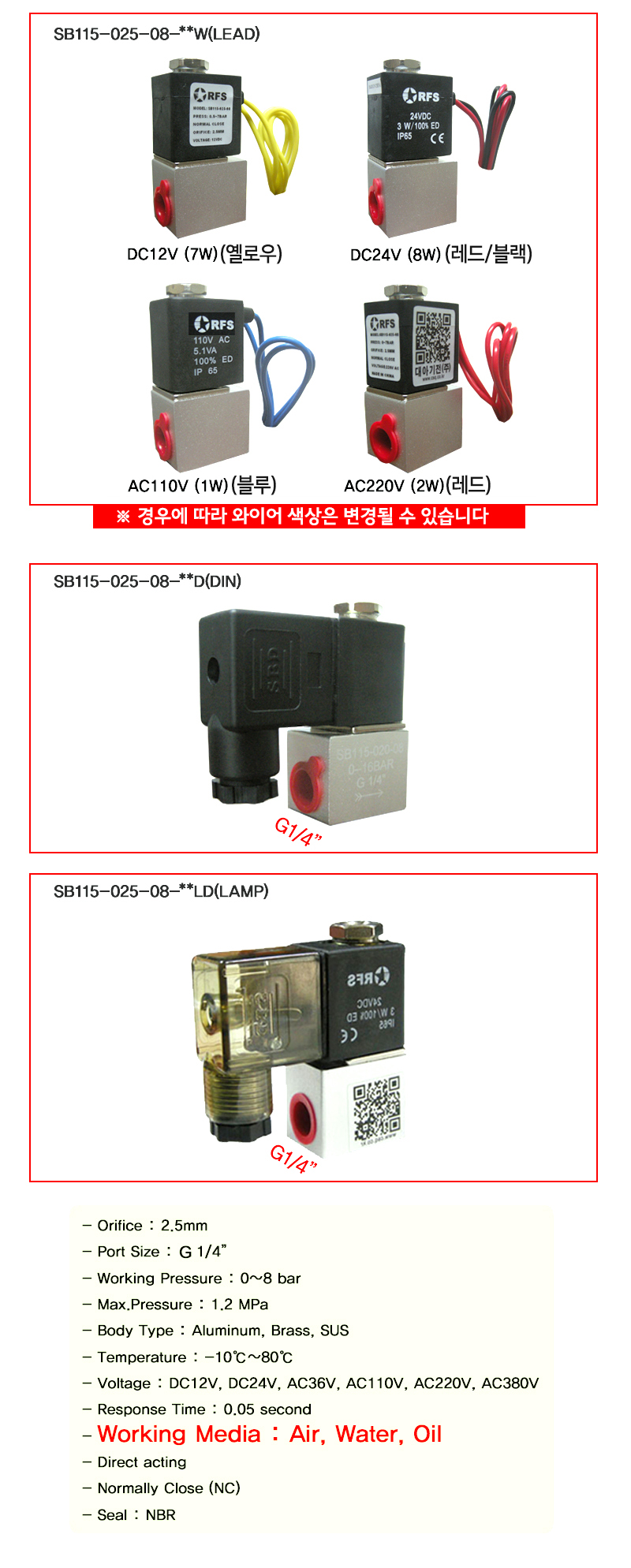

●SB115-025-08-(Aluminium)-3W-AC12V (G1/4 F) (DME5710)

●SB115-025-08-(Aluminium)-4W-AC24V (G1/4 F) (DME5709)

●SB115-025-08-(Aluminium)-7W-DC12V (G1/4 F) (DME3975)

●SB115-025-08-(Aluminium)-8W-DC24V (G1/4 F) (DME6129)

●SB115-025-08-(Aluminium)-1W-AC110V (G1/4 F) (DME8791)

●SB115-025-08-(Aluminium)-2W-AC220V (G1/4 F) (DME1829)

●(2/2way, NC) Aluminium solenoid valve (DIN type)

 (orifice=2.5mm) (pressure=0~8bar) (seal=NBR)

●SB115-025-08-(Aluminium)-7D-DC12V (G1/4 F) (DME8349)

●SB115-025-08-(Aluminium)-8D-DC24V (G1/4 F) (DME8348)

●SB115-025-08-(Aluminium)-1D-AC110V (G1/4 F)

●SB115-025-08-(Aluminium)-2D-AC220V (G1/4 F) ( DME5862) (same DME1830)

●(2/2way, NC) Aluminium solenoid valve (DIN lamp type)

(orifice=2.5mm) (pressure=0~8bar) (seal=NBR)

●SB115-025-08-(Aluminium) 7LD-DC12V (G1/4 F) (DME4406)

●SB115-025-08-(Aluminium)-8LD-DC24V (G1/4 F) (DME5207)

●SB115-025-08-(Aluminium)-1LD-AC110V (G1/4 F) (DME8793)

●SB115-025-08-(Aluminium)-2LD-AC220V (G1/4 F) (DME8794)

coil = SB075
