RFS 전체 카탈로그  2P025 Series 카탈로그

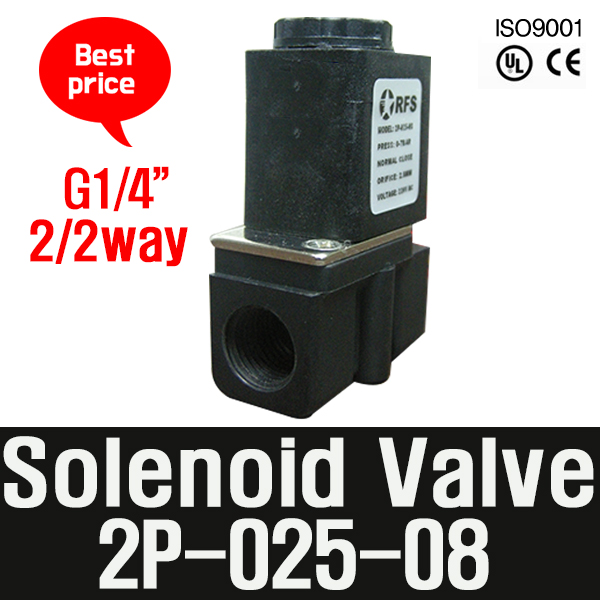

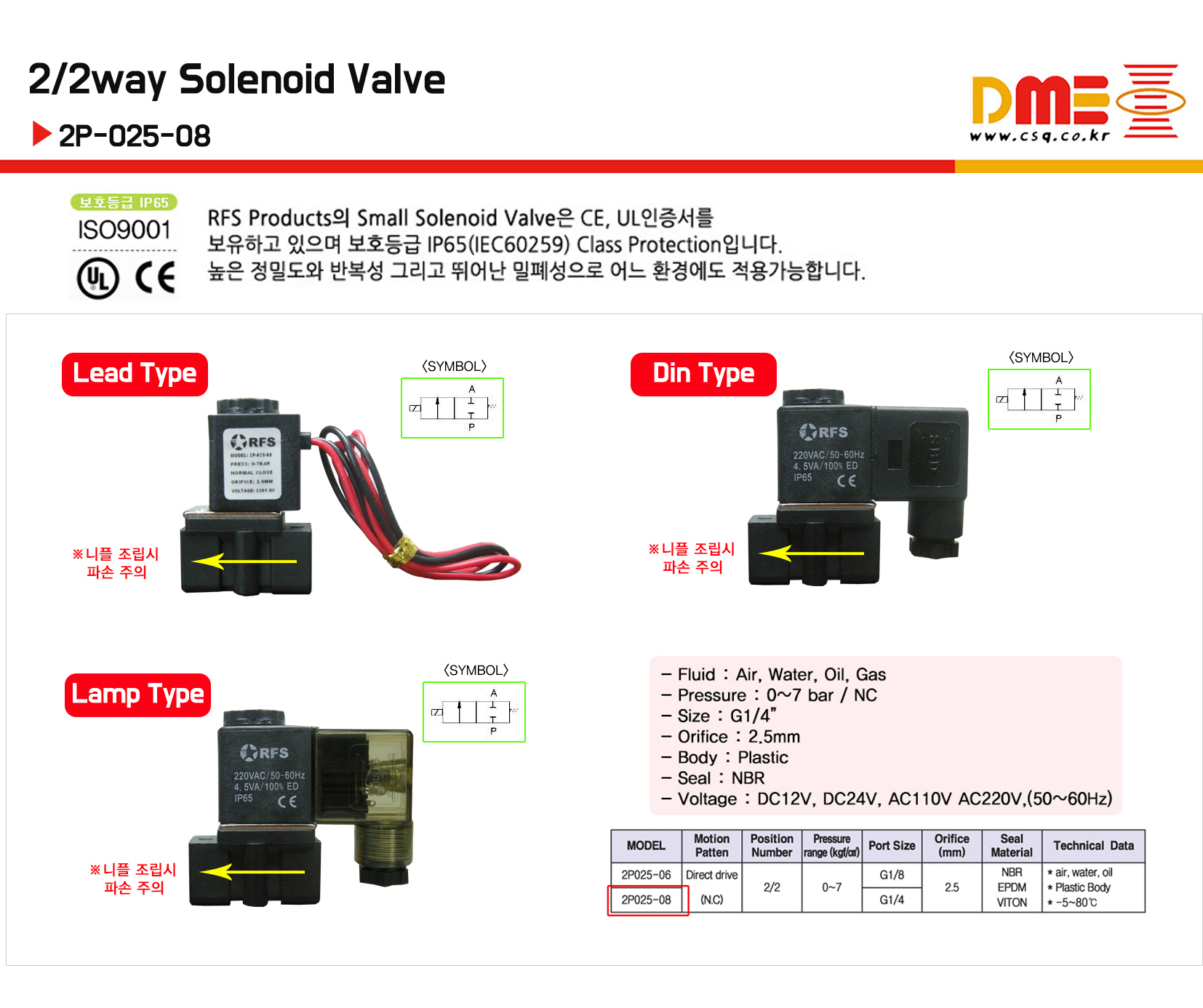

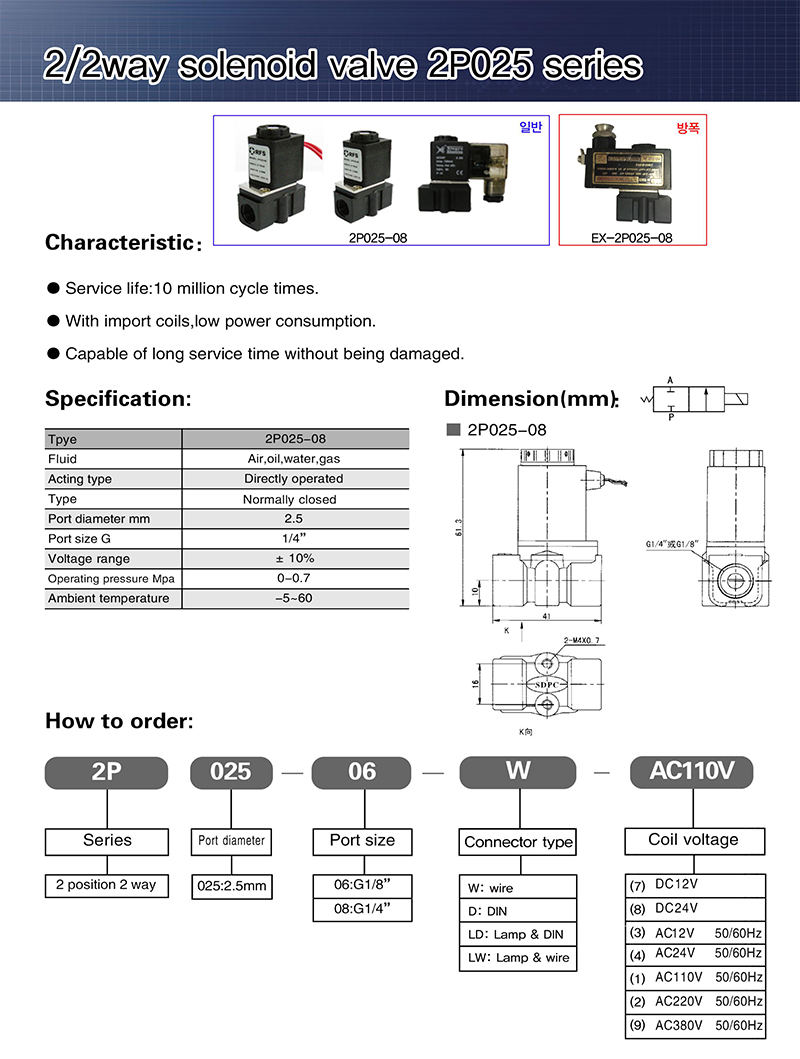

●(2/2way, NC) Plastic Solenoid Valve ( With out DIN Type)

(body=plastic) (orifice=2.5mm) (pressure=0~7bar) (seal=NBR)

●2P-025-08-1D-AC110V (G1/4 F) (DME9265)

●2P-025-08-2D-AC220V (G1/4 F) (DME5695)

●2P-025-08-7D-DC12V (G1/4 F) (DME9266)

●2P-025-08-8D-DC24V (G1/4 F) (DME9267)

●(2/2way, NC) Plastic Solenoid Valve (Lamp DIN Type)

(body=plastic) (orifice=2.5mm) (pressure=0~7bar) (seal=NBR)

●2P-025-08-1LD-AC110V (G1/4 F) (DME9268)

●2P-025-08-2LD-AC220V (G1/4 F) (DME9269)

●2P-025-08-7LD-DC12V (G1/4 F) (DME4984)

●2P-025-08-8LD-DC24V (G1/4 F) (DME9270)

●(2/2way, NC) Plastic Solenoid Valve (lead Wire Type)

(body=plastic) (orifice=2.5mm) (pressure=0~7bar) (seal=NBR)

●2P-025-08-1W-AC110V (G1/4 F) (DME3862)

●2P-025-08-2W-AC220V (G1/4 F) (DME1823)

●2P-025-08-3W-AC12V (G1/4 F) (DME3861)

●2P-025-08-4W-AC24V (G1/4 F) (DME3859)

●2P-025-08-7W-DC12V (G1/4 F) (DME3858)

●2P-025-08-8W-DC24V (G1/4 F) (DME3860)
