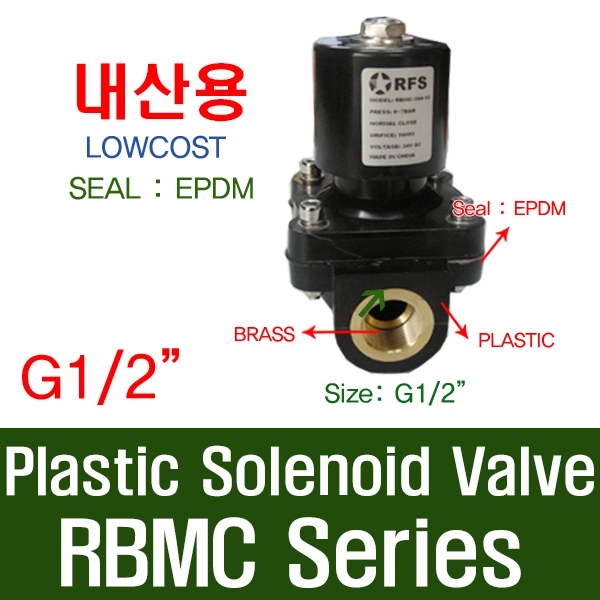

RBMC●2/2way NC BMC Solenoid Valve●RFS water proof solenoid valve●RFS 플라스틱 솔레노이드 밸브●RFS 방수 솔레노이드 밸브●AL Solenoid Valve●RFS Plastic Solenoid Valve●(Media=Air, Water, oil)●(G1/2 F~G1 F)●(0~7bar)●(RFS)

 RBMC 카탈로그  RBMC 코드번호

●(2/2way, NC, solenoid valve) (body=BMC,Plastic) (seal=EPDM)

(media=air, water, oil) (pressure=0~7bar)

●RBMC-160-15-(orifice=16mm)-8D-DC24V-(EPDM)

  (G1/2 F) (CSQ0094)

●RBMC-160-15-(orifice=16mm)-2D-AC220V-(EPDM)

  (G1/2 F) (DME6388)

●RBMC-160-15-(orifice=16mm)-2LD-AC220V-(EPDM) (lamp)

  (G1/2 F) (DME8928)

●RBMC-160-15-(orifice=16mm)-4D-AC24V-(EPDM)

  (G1/2 F) ( DME6383)

●RBMC-160-15-(orifice=16mm)-4LD-AC24V-(EPDM) (lamp)

  (G1/2 F) (DME6654)

●(2/2way, NC, solenoid valve) (body=BMC,Plastic) (seal=EPDM)

(media=air, water, oil) (pressure=0~7bar)

●RBMC-200-20-(orifice=20mm)-2D-AC220V-(EPDM)

 (G3/4 F) (DME6384)

●RBMC-200-20-(orifice=20mm)-8D-DC24V-(EPDM)

 (G3/4 F) (CSQ0096)

●RBMC-200-20-(orifice=20mm)-4D-AC24V-(EPDM)

  (G3/4 F) (DME8929)

●RBMC-200-20-(orifice=20mm)-4LD-AC24V-(EPDM)

 (G3/4 F) (DME8931)

●(2/2way, NC, solenoid valve) (body=BMC,Plastic) (seal=EPDM)

(media=air, water, oil) (pressure=0~7bar)

●RBMC-250-25-(orifice=20mm)-2LD-AC220V-(EPDM)

 (G1 F) (DME8932)

●RBMC-250-25-(orifice=20mm)-2D-AC220V-(EPDM)

 (G1 F) (DME9597)

●RBMC-250-25-(orifice=20mm)-4D-AC24V-(EPDM)

 (G1 F) (DME8933)

●RBMC-250-25-(orifice=20mm)-4LD-AC24V-(EPDM) (lamp)

 (G1 F) (DME8934)

●(2/2way, NC, solenoid valve) (body=BMC,Plastic) (seal=EPDM)

(media=air, water, oil) (pressure=0~7bar)

●RBMC-250-25-(orifice=25mm)-2D-AC220V-(NBR)

  (G1 F) ( DME6385)

●RBMC-160-15-(orifice=15mm)-8D-DC24V-(NBR)

 (G1/2 F) (CSQ1176)

●(2/2way, NC,water proof, solenoid valve)

(body=BMC, Plastic) (bolt sus + nut sus)

(wire=1m) (seal=EPDM) (media=air, water, oil) (pressure=0~7bar)

●RBMC-160-15-WP-(orifice=15mm)-8W-DC24V-(EPDM)

 (G1/2 F) (DME5340)

●RBMC-160-15-WP-(orifice=15mm)-2W-AC220V-(EPDM)

 (G1/2 F) (DME2001)

●RBMC-250-25-WP-(orifice=25mm)-8W-DC24V-(EPDM)

 (G1 F) (DME5493)

●RBMC-250-25-WP-(orifice=25mm)-2W-AC220V-(NBR)

 (G1 F) (DME1911)
