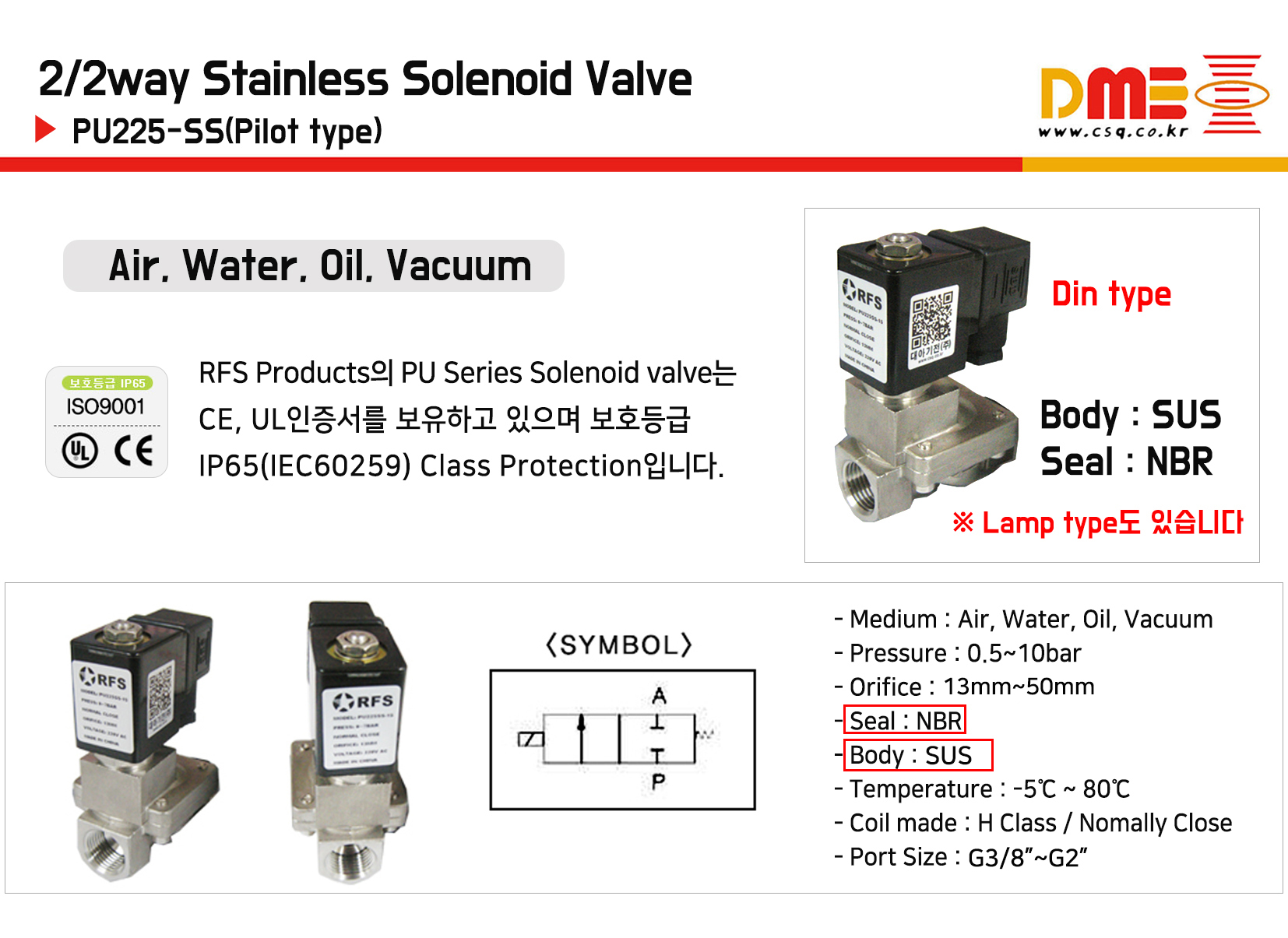

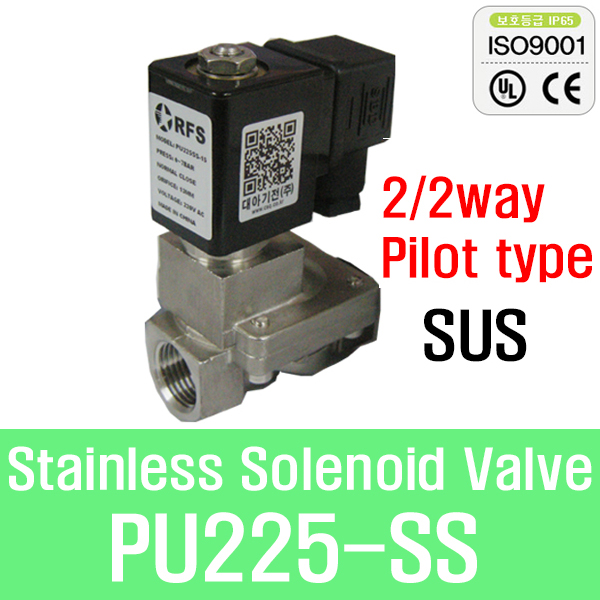

(UL인증)PU225-SS●PU225SS●2/2way NC Stainless Solenoid Valve●SUS 스테인레스 솔레노이드 밸브●RFS 에어 솔레노이드 밸브●물,오일 솔레노이드 밸브●(shaco,샤코)●(Media=Hot water,air,water,oil)●(orifice13mm~50mm)●(0~10bar)●(G3/8 F~G2 F)●(RFS)

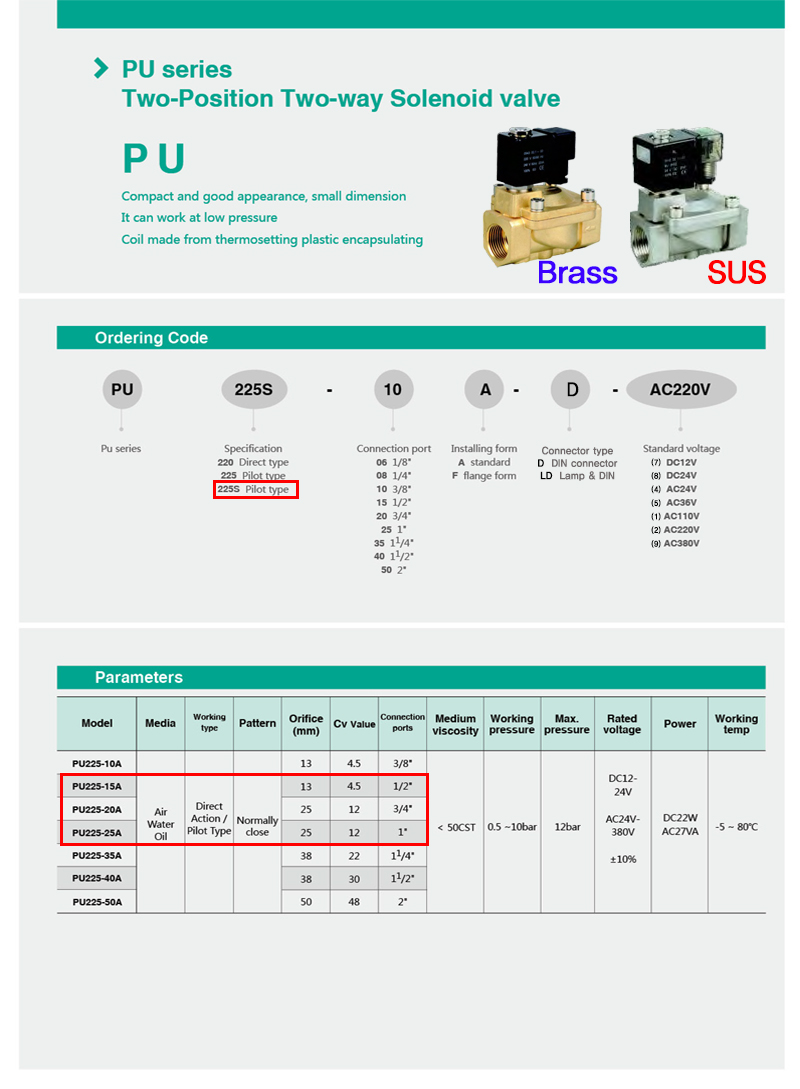

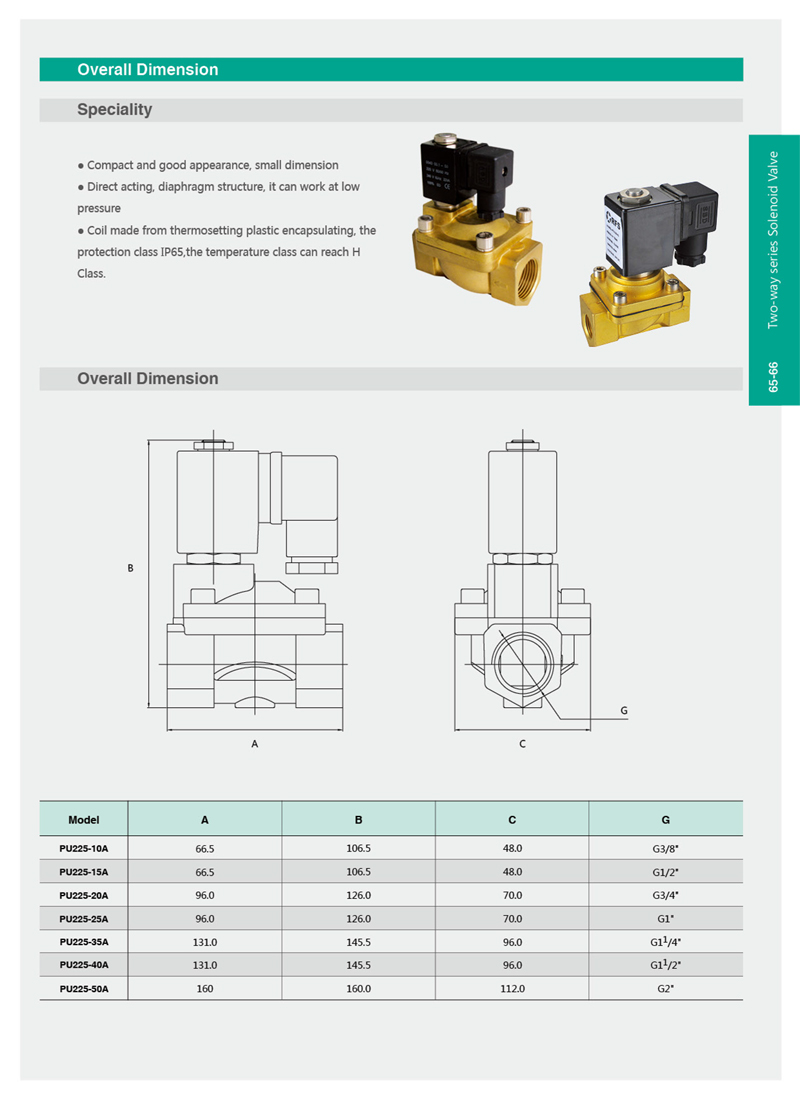

PU225 Series 카탈로그 PU225 Series 코드번호

●(2/2way, NC, SUS) Stainless Solenoid Valve (G1/2 F)

(body=SUS) (seal=NBR) (temp=-5~80ºC) (media=air, water, oil)

(working pressure=0~10bar) (max pressure=12bar)

●PU225SS-15-(orifice=13mm)-1D-AC110V (G1/2 F) (DME8923)

●PU225SS-15-(orifice=13mm)-2D-AC220V (G1/2 F) (DME5711)

●PU225SS-15-(orifice=13mm)-8D-DC24V (G1/2 F) (DME8924)

●PU225SS-15-(orifice=13mm)-1LD-AC110V (G1/2 F) (DME8925)

●PU225SS-15-(orifice=13mm)-2LD-AC220V (G1/2 F) (DME8926)

●PU225SS-15-(orifice=13mm)-8LD-DC24V (G1/2 F) (DME8927)

●(2/2way, NC, SUS) Stainless Solenoid Valve  (G3/4 F)

(body=SUS) (seal=NBR) (temp=-5~80ºC) (media=air, water, oil)

(working pressure=0~10bar) (max pressure=12bar)

●PU225-SS-20A-(orifice=25mm)-2D-AC220V (G3/4 F) (DME4775)

●PU225-SS-20A-(orifice=25mm)-2LD-AC220V (G3/4 F) (DME8435)

●(2/2way, NC, SUS) Stainless Solenoid Valve (G1 F)

(body=SUS) (seal=NBR) (temp=-5~80ºC) (media=air, water, oil)

(working pressure=0~10bar) (max pressure=12bar)

●PU225-SS-25A-(orifice=25mm)-2D-AC220V (G1 F) (DME4776)

●PU225-SS-25A-(orifice=25mm)-2LD-AC220V (G1 F) (DME8436)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품 가능

SB256-AC220V (DIN43650A) (DME3694)
