3V1-06-AI●(3V106)●(3/2way,Small air Solenoid Valve)●RFS air Solenoid Valve●RFS 소형 솔레노이드밸브●RFS 소형 솔레노이드 밸브●소형 솔밸브●(G1/8 F)●(0~8bar)●(RFS)

Solenoid Coil 전체 카탈로그 3V Series 카탈로그

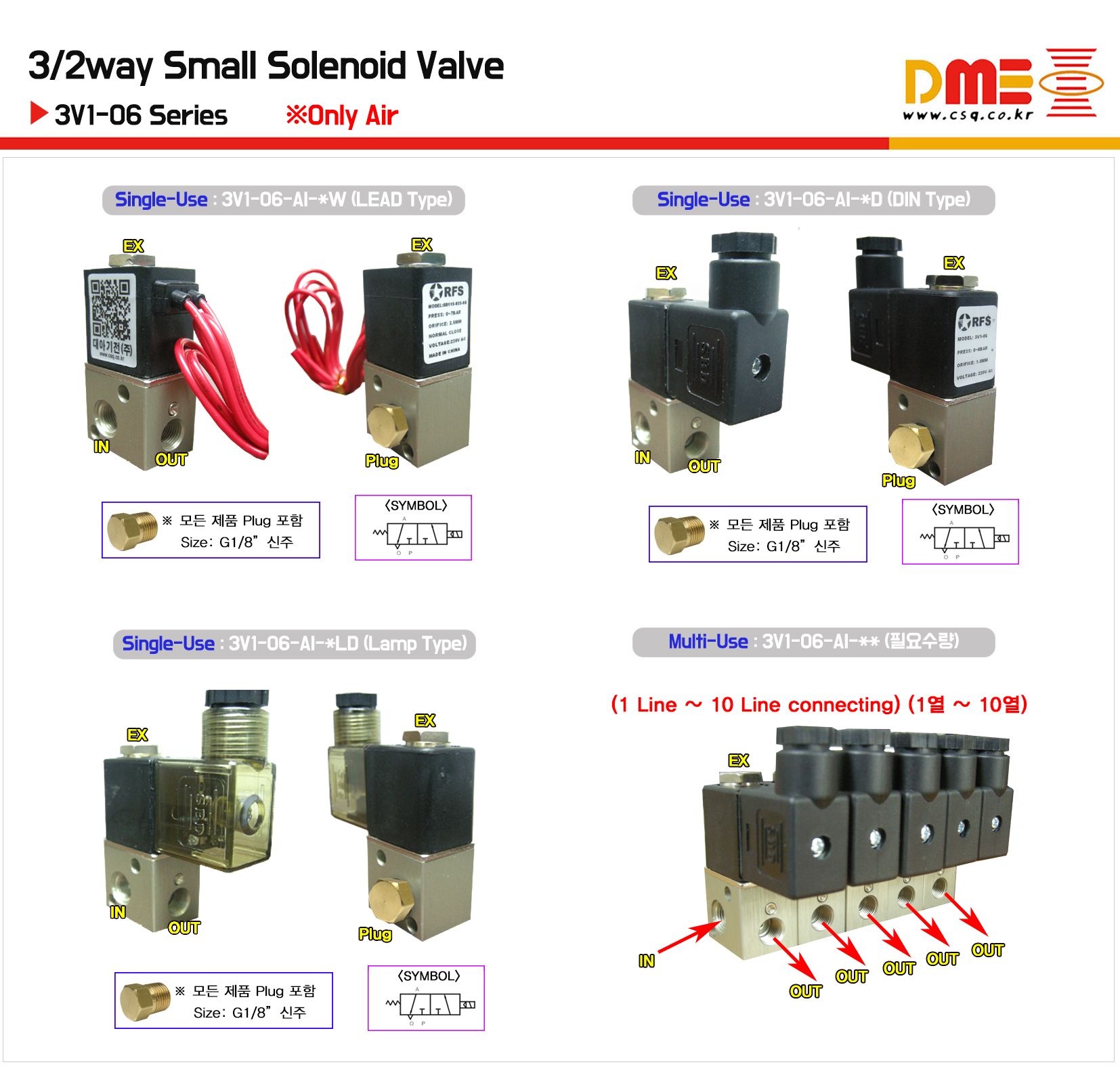

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1mm)

●3V1-06-Al-1W-AC110V (G1/8 F) (wire) (DME8836)

●3V1-06-Al-1D-AC110V (G1/8 F) (DIN) (DME8842)

●3V1-06-Al-1LD-AC110V (G1/8 F) (lamp DIN) (DME8841)

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1mm)

●3V1-06-Al-2W-AC220V (G1/8 F) (wire) (DME8837)

●3V1-06-Al-2D-AC220V (G1/8 F) (DIN) (DME1841)

●3V1-06-Al-2LD-AC220V (G1/8 F) (Lamp DIN) (DME8842)

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1mm)

●3V1-06-Al-7W-DC12V (G1/8 F) (wire) (DME8835)

●3V1-06-Al-7D-DC12V (G1/8 F) (DIN) (DME8838)

●3V1-06-Al-7LD-DC12V (G1/8 F) (lamp DIN) (DME8839)

●(3/2way) Small air Solenoid Valve (seal=NBR)

 (pressure=0~8bar) (body=AL) (orifice=1mm)

●3V1-06-Al-8W-DC24V (G1/8 F) (wire) (DME6128)

●3V1-06-Al-8D-DC24V (G1/8 F) (DIN) (DME2854)

●3V1-06-Al-8LD-DC24V (G1/8 F) (lamp DIN) (DME8840)

●(3/2way) Small Solenoid Valve (seal=viton)

(pressure=0~8bar) (body=AL) (orifice=1mm)

●3V1-06-Al-2D-(Viton)-AC220V (G1/8 F)-(HA) (with out DIN) (DME4532)
