R23-WT●R23-WT-06●(R23WT)●3/2way air Solenoid Valve●RFS 소형 솔레노이드 밸브●(G1/8 F)●(0~8bar)●(RFS)

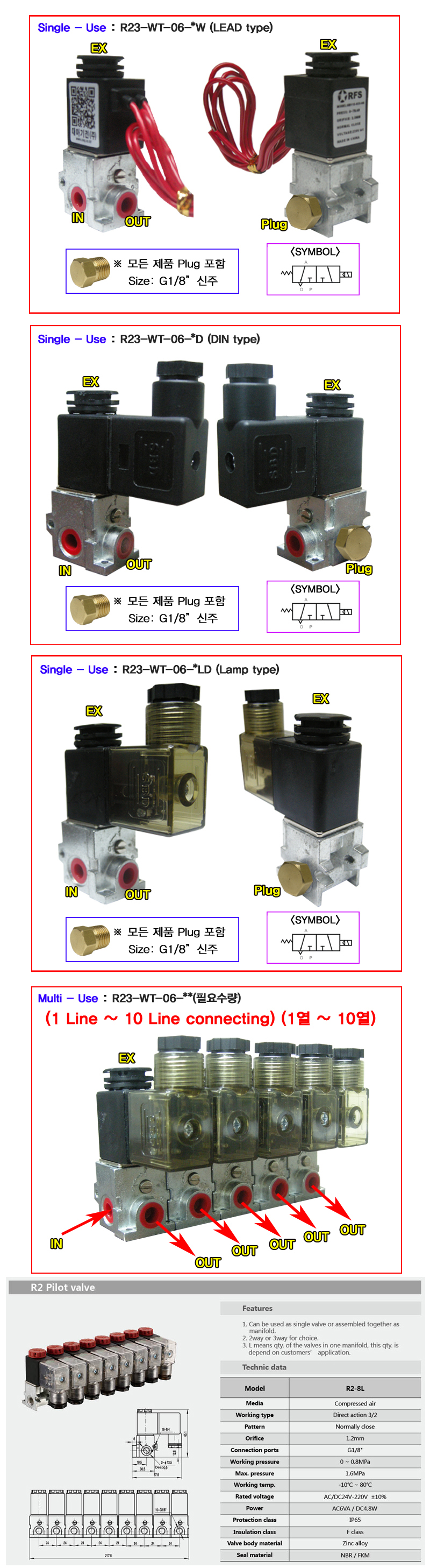

R23-WT 카탈로그

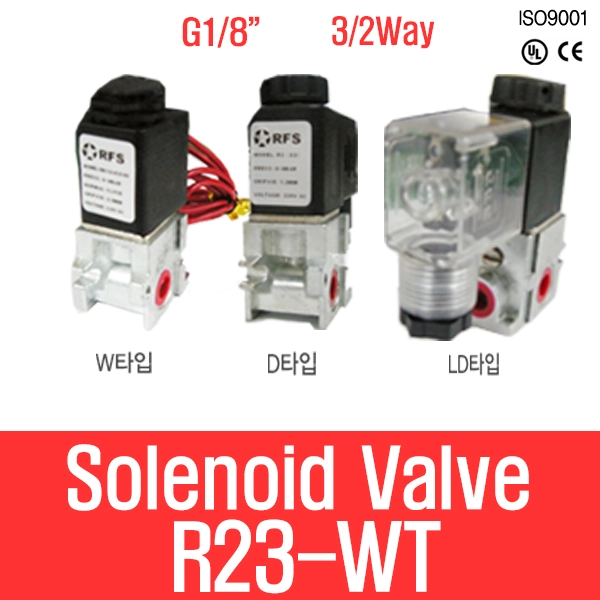

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1.2mm)

●R23-WT-06-7W-DC12V (wire) (G1/8 F) (DME8857)

●R23-WT-06-7D-DC12V (DIN) (G1/8 F) (DME5142)

●R23-WT-06-7LD-DC12V (lamp DIN) (G1/8 F) (DME8861)

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1.2mm)

●R23-WT-06-8W-DC24V (wire) (G1/8 F) (DME8858)

●R23-WT-06-8D-DC24V (DIN) (G1/8 F) (DME5143)

●R23-WT-06-8LD-DC24V (lamp DIN) (G1/8 F) (DME8862)

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1.2mm)

●R23-WT-06-1W-AC110V (wire) (G1/8 F) (DME8859)

●R23-WT-06-1D-AC110V (DIN) (G1/8 F) (DME8856)

●R23-WT-06-1LD-AC110V (lamp DIN) (G1/8 F) (DME8863)

●(3/2way) Small air Solenoid Valve (seal=NBR)

(pressure=0~8bar) (body=AL) (orifice=1.2mm)

●R23-WT-06-2W-AC220V (wire) (G1/8 F) (DME8860)

●R23-WT-06-2D-AC220V (DIN) (G1/8 F)

●R23-WT-06-2LD-AC220V (lamp DIN) (G1/8 F) (DME1846)
