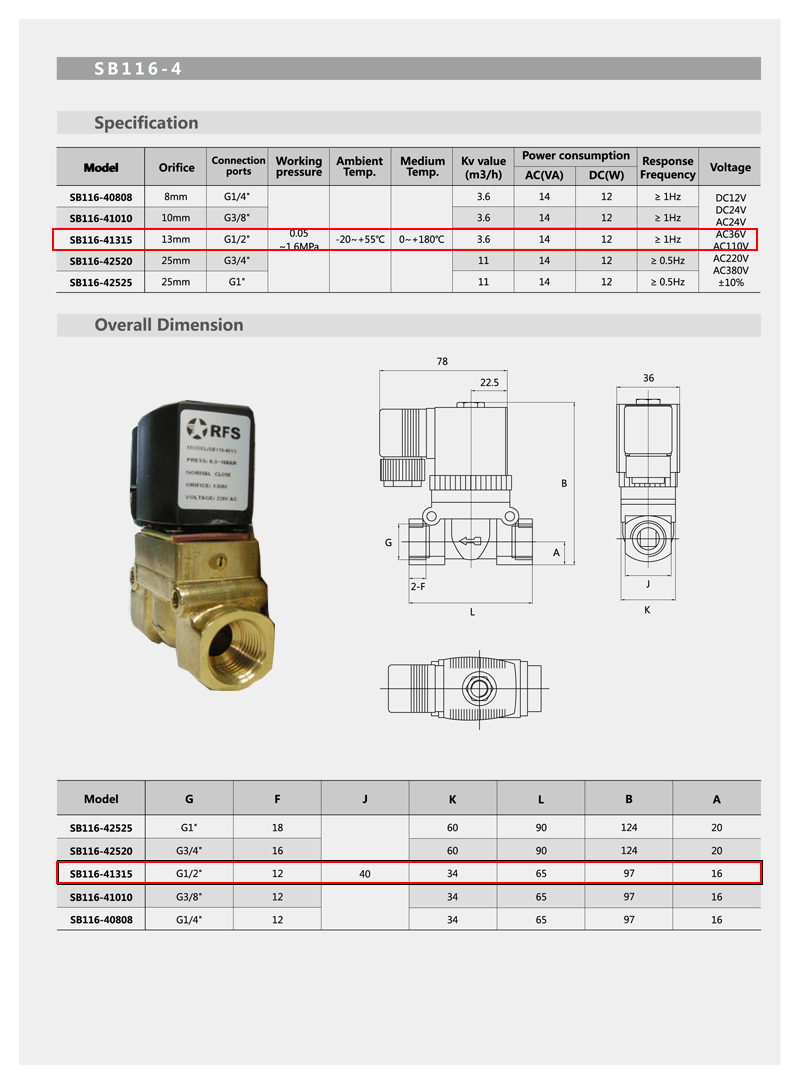

SB116-4 카탈로그

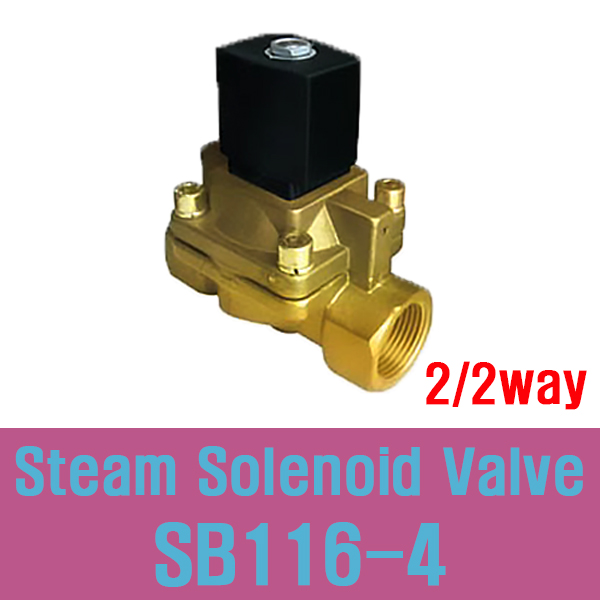

●(2/2way, NC) Steam Valve (steam=180ºc)

(pressure=0.01~16bar) (seal=PTFE) (body=brass)

●SB116-40808-(orifice=8mm)-2D-AC220V (G1/4 F) (DME1926)

●SB116-41010-(orifice=10mm)-2D-AC220V (G3/8 F) (DME1927)

●SB116-41315-(orifice=13mm)-2D-AC220V (G1/2 F) (DME1928)

●SB116-41315-(orifice=13mm)-2LD(Lamp connector)-AC220V (G1/2 F) (DME8910)

●SB116-41315-(orifice=13mm)-8D-DC24V (G1/2 F) (DME8908)

●SB116-41315-(orifice=13mm)-1D-AC110V (G1/2 F) (DME8907)

●SB116-42520-(orifice=25mm)-2D-AC220V (G3/4 F) (DME4778)

●SB116-42520-(orifice=25mm)-1D-AC110V (G3/4 F) (DME5971)

●SB116-42525-(orifice=25mm)-2D-AC220V (G1 F)    (DME1929)

●SB086-AC110V (DIN43650A) (DME4529)

●SB086-AC220V (DIN43650A) (old DME5759 (new CSQ5280)

●SB086-DC12V (DIN43650A) (DME4531)

●SB086-DC24V (DIN43650) (0ld DME4530) (new CSQ5279)

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)

●(old SB116-4008) ●(old SB116-4010) ●(old SB116-4015)

●(old SB116-4020) ●(old SB116-4025)

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)
