DL-6●DL-6A●DL-6B●DL-6C●DL-6E●DL-6F ●DL-6G●DL-6K●(DL6A)●Steam=180℃●2/2way NC Steam Valve●RFS 스팀 솔레노이드 밸브●RFS 스팀 밸브●RFS 스팀 솔 밸브●(G1/4 F)●(0~8bar)●(0~16bar)●(0~25bar)● (RFS)r)● (RFS)

DL-6 Series 카탈로그

●(2/2way, NC) (Steam Valve  with steam flow adjustable)

(temp=180℃) (seal=PTFE)

(pressure=0~16bar)( orifice=2.7mm) (body=brass)

●DL-6C-(pressure=0~16bar)-7D-12V (G1/4 F) (csq2457)

●DL-6C-(pressure=0~16bar)-2D-AC220V (G1/4 F) (DME6884)

●(2/2way, NC) (Steam Valve with steam flow adjustable)

(temp=180℃) (seal=PTFE)

(pressure=0~8bar) (orifice=2.5mm) (body=brass)

●DL-6K-(pressure=0~8bar)--2D-AC220V (G1/4 F) (DME1924)

●DL-6K-(pressure=0~8bar)-1D-AC110V (G1/4 F) (DME8077)

●DL-6K-(pressure=0~8bar)-8D-DC24V (G1/4 F) (DME8078)

●(2/2way, NC) (Steam Valve with steam flow adjustable)

(temp=180℃) (seal=PTFE)

(pressure=0~25bar) (orifice=2.5mm) (body=brass)

●DL-6E-(pressure=0~25bar)-2D-AC220V (G1/4 F) (DME1925)

●(2/2way, NC) Steam Valve

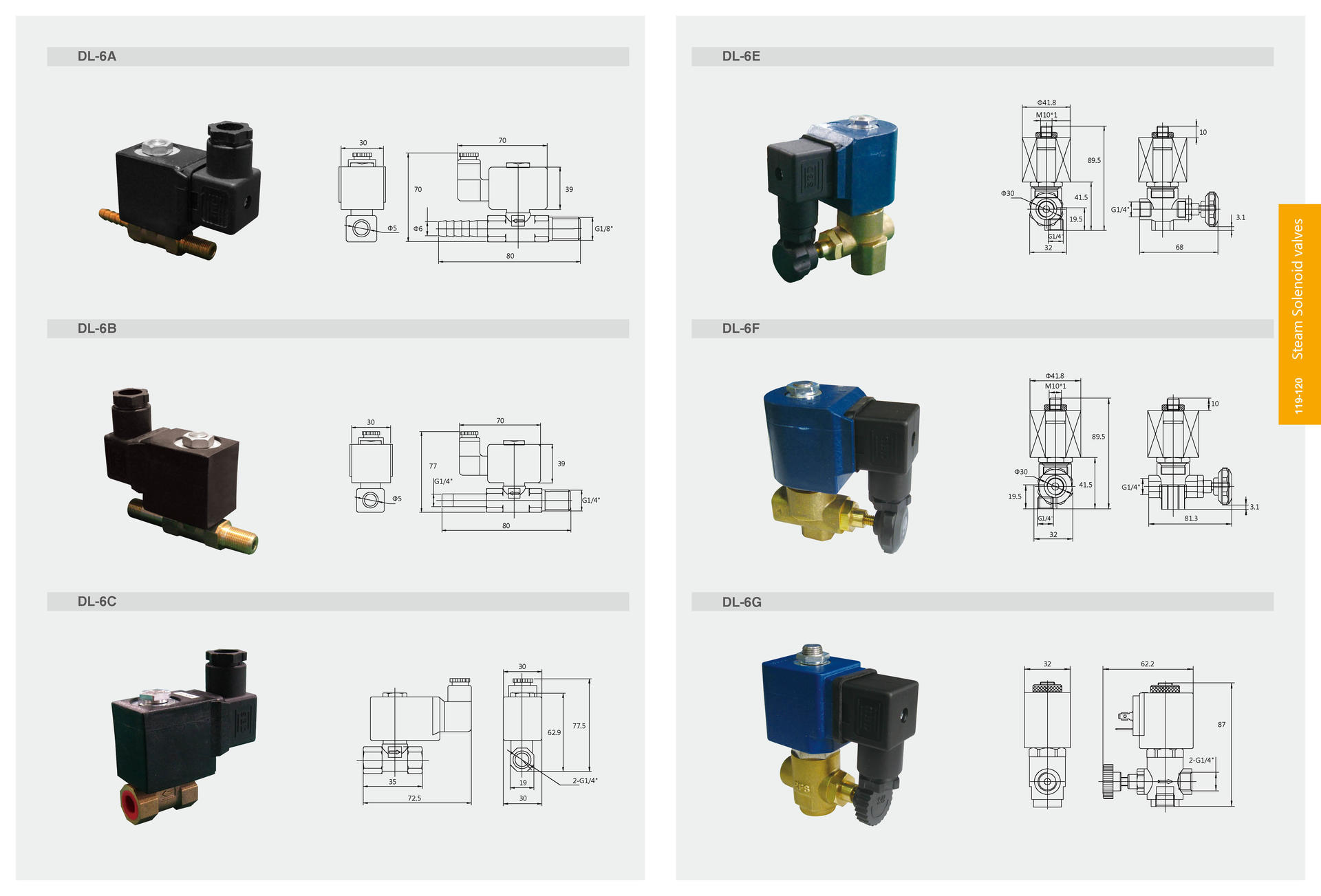

●DL-6A (pressure=0~8bar) (orifice=2.5mm) (G1/4 F)

●DL-6B (pressure=0~8bar) (orifice=2.5mm) (G1/4 F)

●DL-6C (pressure=0~16bar) (orifice=2.7mm) (G1/4 F)

●DL-6E (pressure=0~25bar) (orifice=2.5mm) (G1/4 F)

●DL-6F (pressure=0~25bar) (orifice=2.5mm) (G1/4 F)

●DL-6G (pressure=0~8bar) (orifice=2.5mm) (G1/4 F)

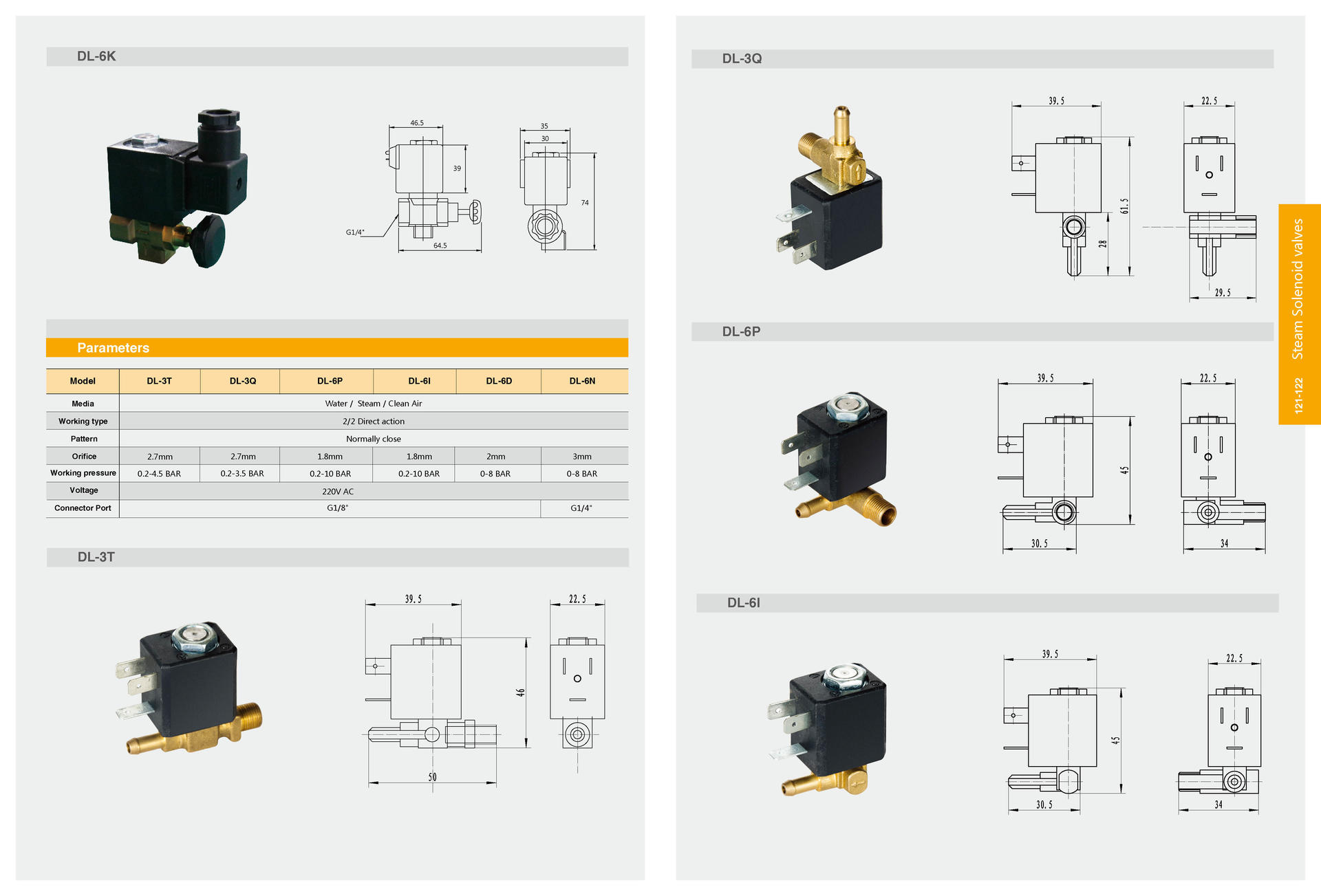

●DL-6K (pressure=0~8bar) (orifice=2.5mm) (G1/4 F)

●(2/2way, NC) Steam Valve

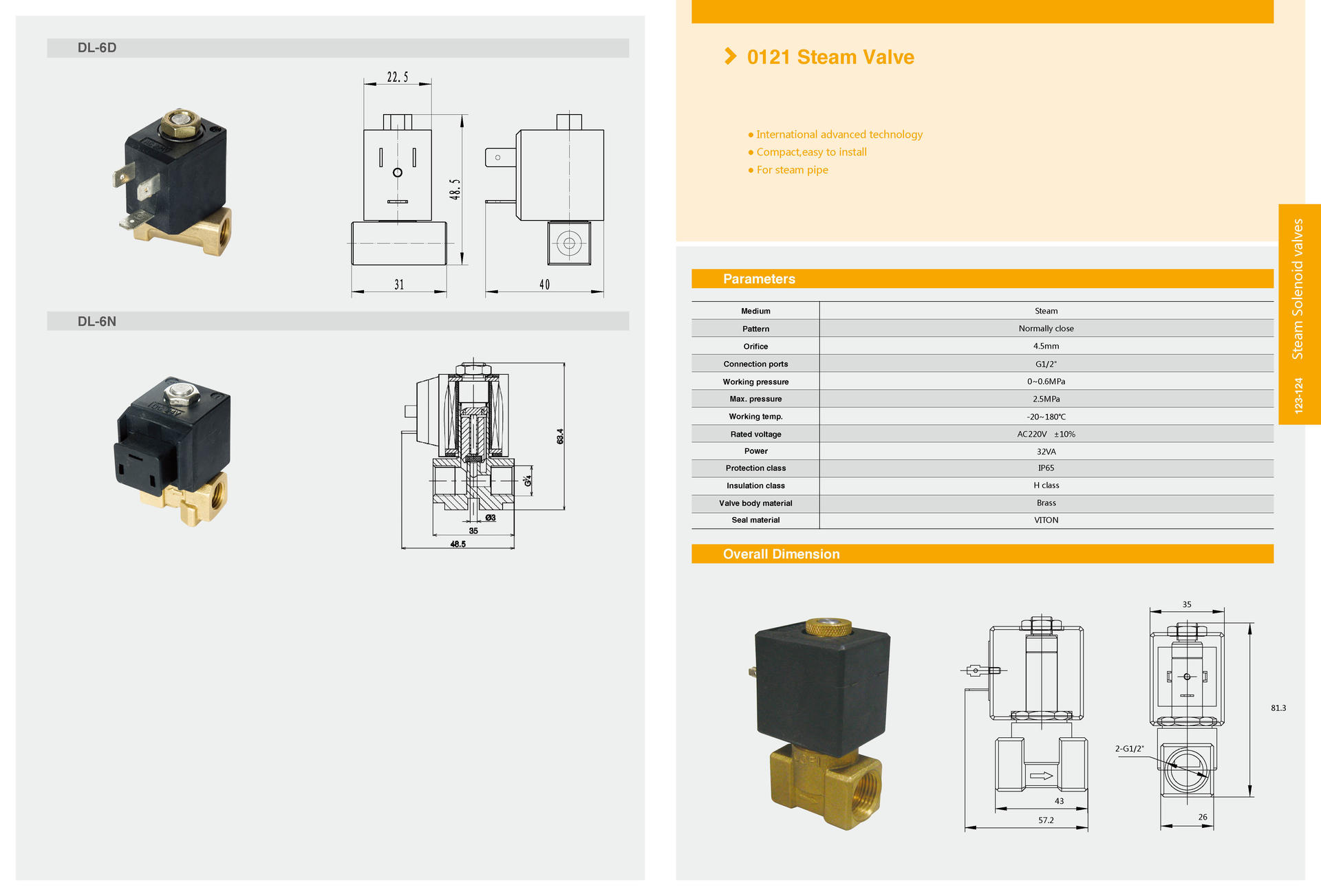

●DL-3T●DL-3Q●DL-6P●DL-6I●DL-6D●DL-6N
