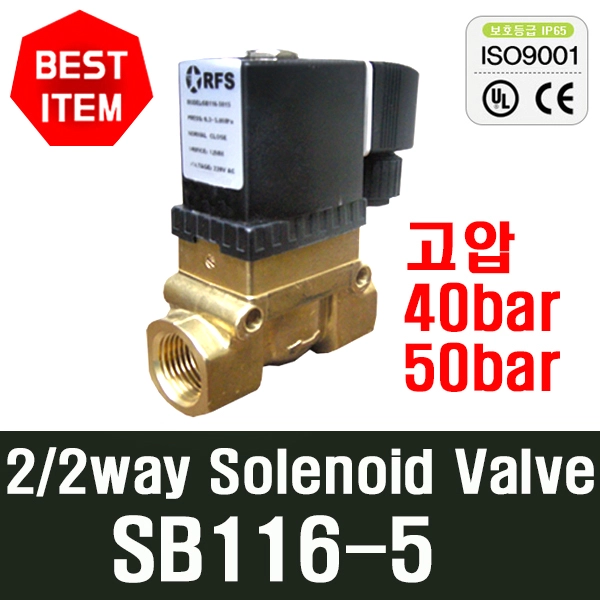

(고압)SB116-5●SB1165●2/2way NC NO High Pressure Solenoid Valve●RFS 고압 솔레노이드 밸브●RFS 고압 솔레노이드 밸브●RFS 대유량 고압 밸브●RFS 에어 고압 솔밸브●RFS High pressure valve●RFS 고압 솔레노이드 밸브●(1~40bar)●(1~50bar)●(G1/4 F~G1 F)●(RFS)

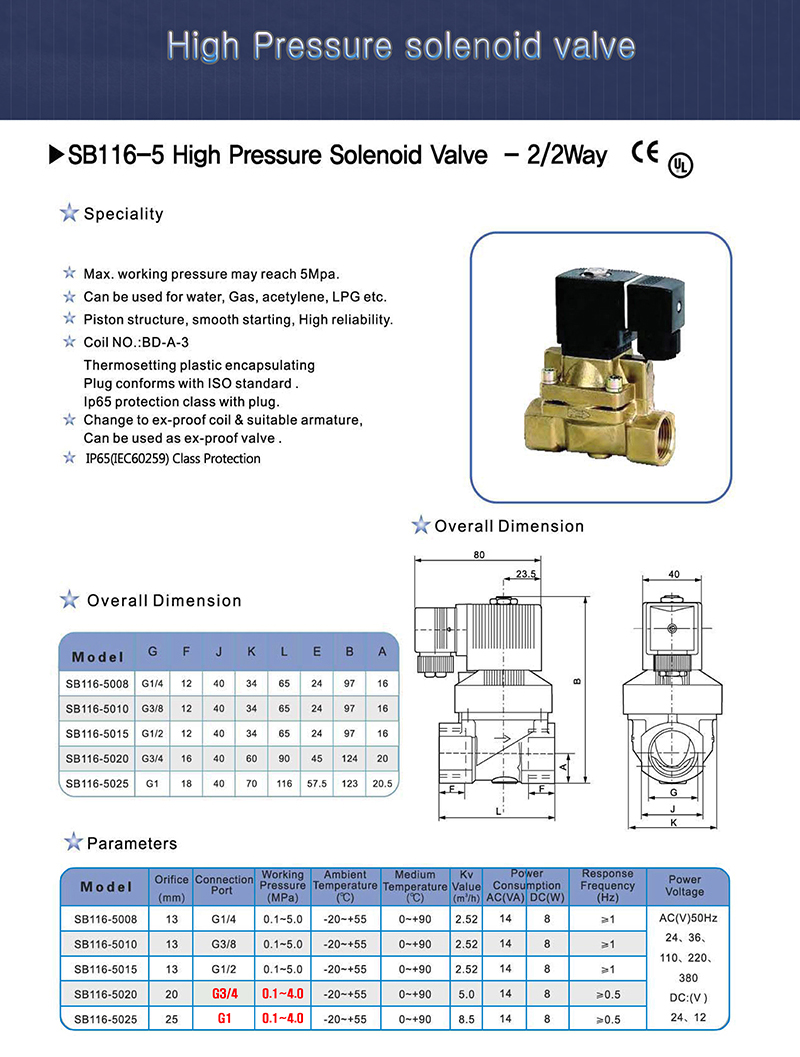

                                             SB116-5 카탈로그

●(2/2way, NC) High Pressure Solenoid Valve (50bar)

(body=brass) (seal=NBR) (pressure=1~50bar) (orifice=8mm)

●SB116-5008-(NC)-1D-AC110V (G1/4 F) (DME0425)

●SB116-5008-(NC)-2D-AC220V (G1/4 F) (DME0424)

●SB116-5008-(NC)-7D-DC12V (G1/4 F)

●SB116-5008-(NC)-8D-DC24V( G1/4 F) (DME0426)

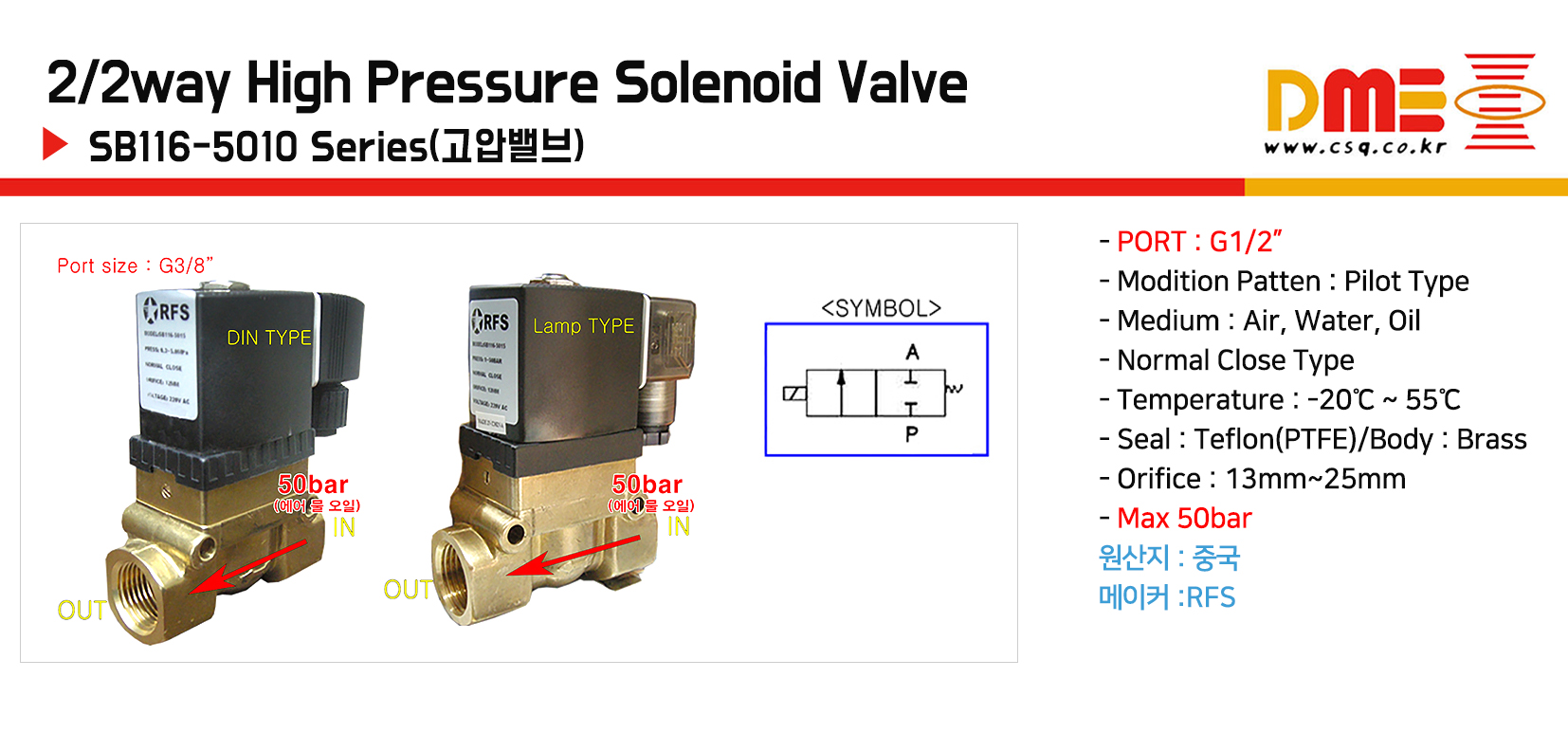

●(2/2way, NC) High Pressure Solenoid Valve (50bar)

(body=brass) (seal=NBR) (pressure=1~50bar) (orifice=10mm)

●SB116-5010-(NC)-1D-AC110V (G3/8 F) (DME0428)

●SB116-5010-(NC)-2D-AC220V (G3/8 F) (DME0427)

●SB116-5010-(NC)-7D-DC12V (G3/8 F)

●SB116-5010-(NC)-8D-DC24V (G3/8 F) (DME0429)

●(2/2way, NC) High Pressure Solenoid Valve (50bar)

(body=brass) (seal=NBR) (pressure=1~50bar) (orifice=13mm)

●SB116-5015-(NC)-1D-AC110V (G1/2 F) (DME0431)

●SB116-5015-(NC)-1LD-AC110V (G1/2 F) (DME8903)

●SB116-5015-(NC)-2D-AC220V (G1/2 F) (DME0430)

●SB116-5015-(NC)-2LD-AC220V (G1/2 F) (DME8902)

●SB116-5015-(NC)-7D-DC12V( G1/2 F) (DME4511)

●SB116-5015-(NC)-8D-DC24V (G1/2 F) (DME0432)

●SB116-5015-(NC)-8LD-DC24V (G1/2 F) (DME8904)

●(2/2way, NC) High Pressure Solenoid Valve (40bar)

(body=brass) (seal=NBR) (pressure=1~40bar) (orifice=20mm)

●SB116-5020-(NC)-1D-AC110V (G3/4 F) (DME0434)

●SB116-5020-(NC)-2D-AC220V (G3/4 F) (DME0433)

●SB116-5020-(NC)-7D-DC12V ( G3/4 F)

●SB116-5020-(NC)-8D-DC24V (G3/4 F) (DME0435)

●(2/2way, NC) High Pressure Solenoid Valve (40bar)

(body=brass) (seal=NBR) (pressure=1~40bar) (orifice=25mm)

●SB116-5025-(NC)-1D-AC110V (G1 F) (DME0437)

●SB116-5025-(NC)-2D-AC220V (G1 F) (DME0436)

●SB116-5025-(NC)-7D-DC12V ( G1 F)

●SB116-5025-(NC)-8D-DC24V (G1 F) (DME0438)

●(2/2way, NO) High Pressure Solenoid Valve

(body=brass) (seal=NBR) (pressure=1~50bar) (orifice=13mm)

●SB116-5015-(NO)-1D-AC110V (G1/2 F)

●SB116-5015-(NO)-2D-AC220V (G1/2 F) (CSQ2624)

●SB116-5015-(NO)-7D-DC12V (G1/2 F)

●SB116-5015-(NO)-8D-DC24V (G1/2 F) (CSQ2535)

●SB116-5020-(NO)-8D-DC24V (G3/4 F) (CSQ5772)

●SB116-52525-(NO)-8D-DC24V (G1 F) (CSQ5773)

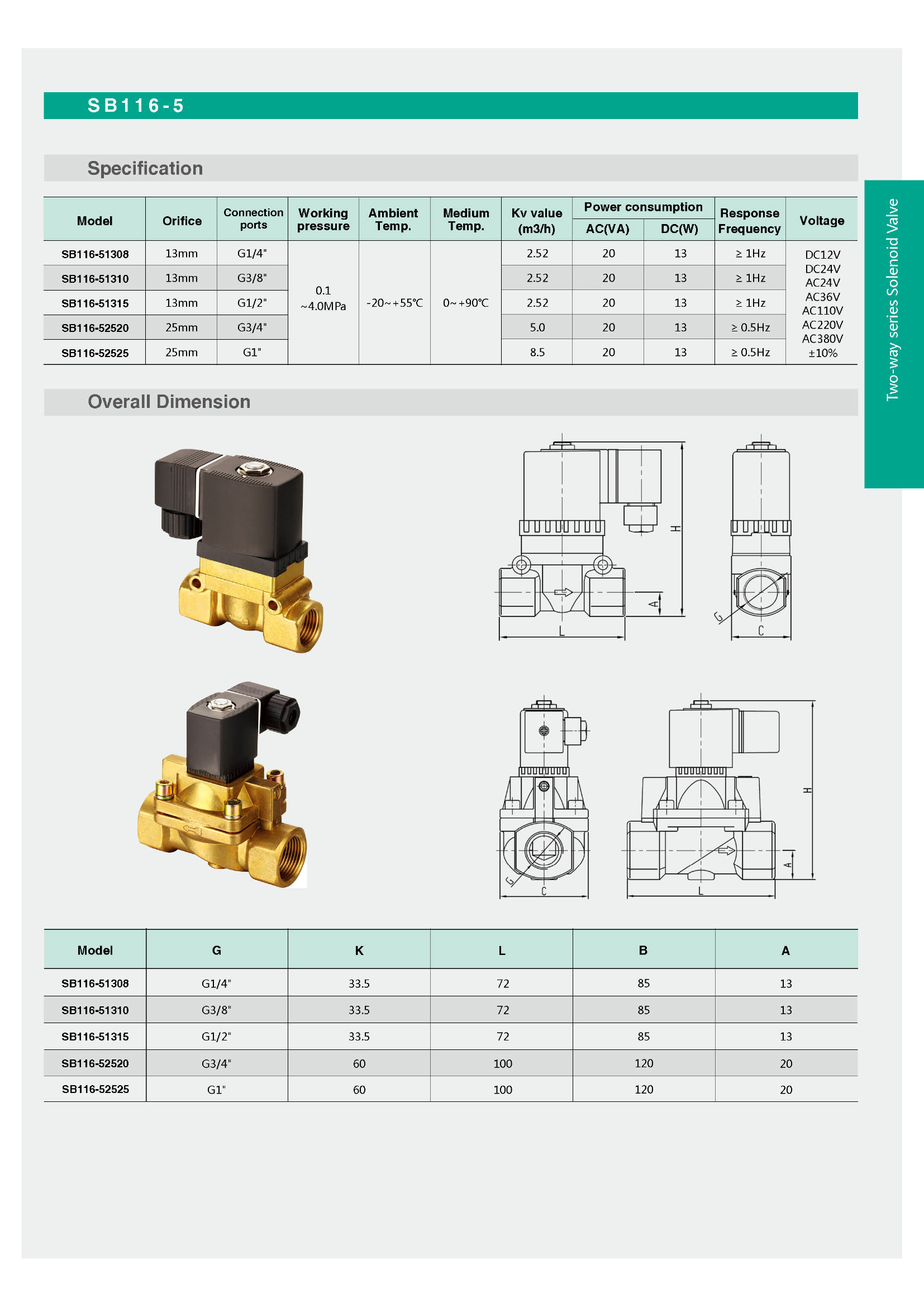

●SB116-5 (50bar) (Working Pressure= 0.1~5Mpa) (G1/4 F~G1/2 F)

●SB116-5 (40bar) (Working Pressure=0.1~4Mpa) (G3/4 F~G1 F)

●SB116-51308 (old모델) ●SB116-51310 (old모델)

●SB116-51315(old) ●SB116-51320 (old) ●SB116-51325 (old)

●1440 Coil (Normally closed )

●1440-DC12V

●1440 -DC24V  (new csq5279) (old DME4530)

●1440 -AC110V

●1440 -AC220V (new csq5280) (old DME5759)

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)

●SB116 Coil (Normally closed )-old model

●SB086-DC12V (DME4531)

●SB086-DC24V  (old DME4530) (new CSQ5279)

●SB086-AC110V

●SB086-AC220V (old DME5759) (new CSQ5280)

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)

●SB116 Coil (Normally  open)

●SB16403-DC12V

●SB16403 -DC24V

●SB16403 -AC110V

●SB16403 -AC220V
