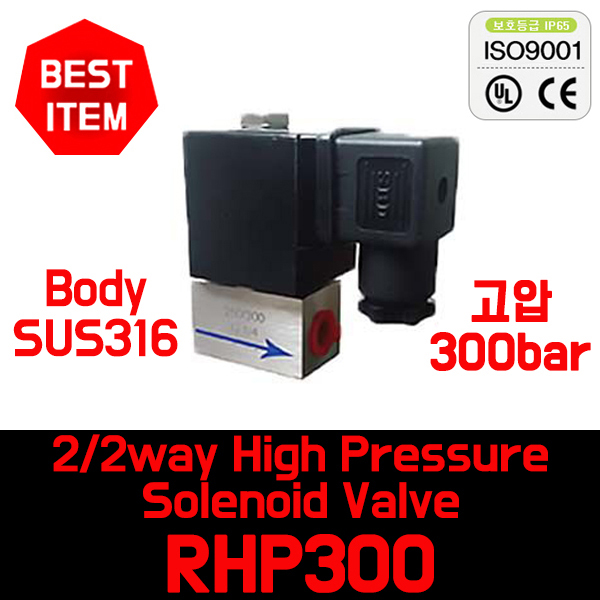

●(2/2way, NC) High Pressure Solenoid Valve (300bar)

(orifice=1mm)   (Body=SUS316) (pressure=300bar)

(Seal=PTFE)  (Temp=-10~120℃) (Media=Air, Water, oil)

●RHP300-(300bar)-(NC)-8D-DC24V (G1/4 F) (DME9686)

●RHP300-(300bar)-(NC)-8D-DC12V (G1/4 F) (csq1867)

●(2/2way, NC) High Pressure Solenoid Valve (300bar)

(orifice=1mm)  (Body= SUS316)  (pressure=300bar)

(Seal=PTFE)  (Temp=-10~120℃) (Media=Air, Water, oil)

●RHP300-(300bar)-(NC)-2D-AC220V (G1/4 F) (DME4174)

●RHP300-(300bar)-(NC)-1D-AC110V (G1/4 F) (DME4173)

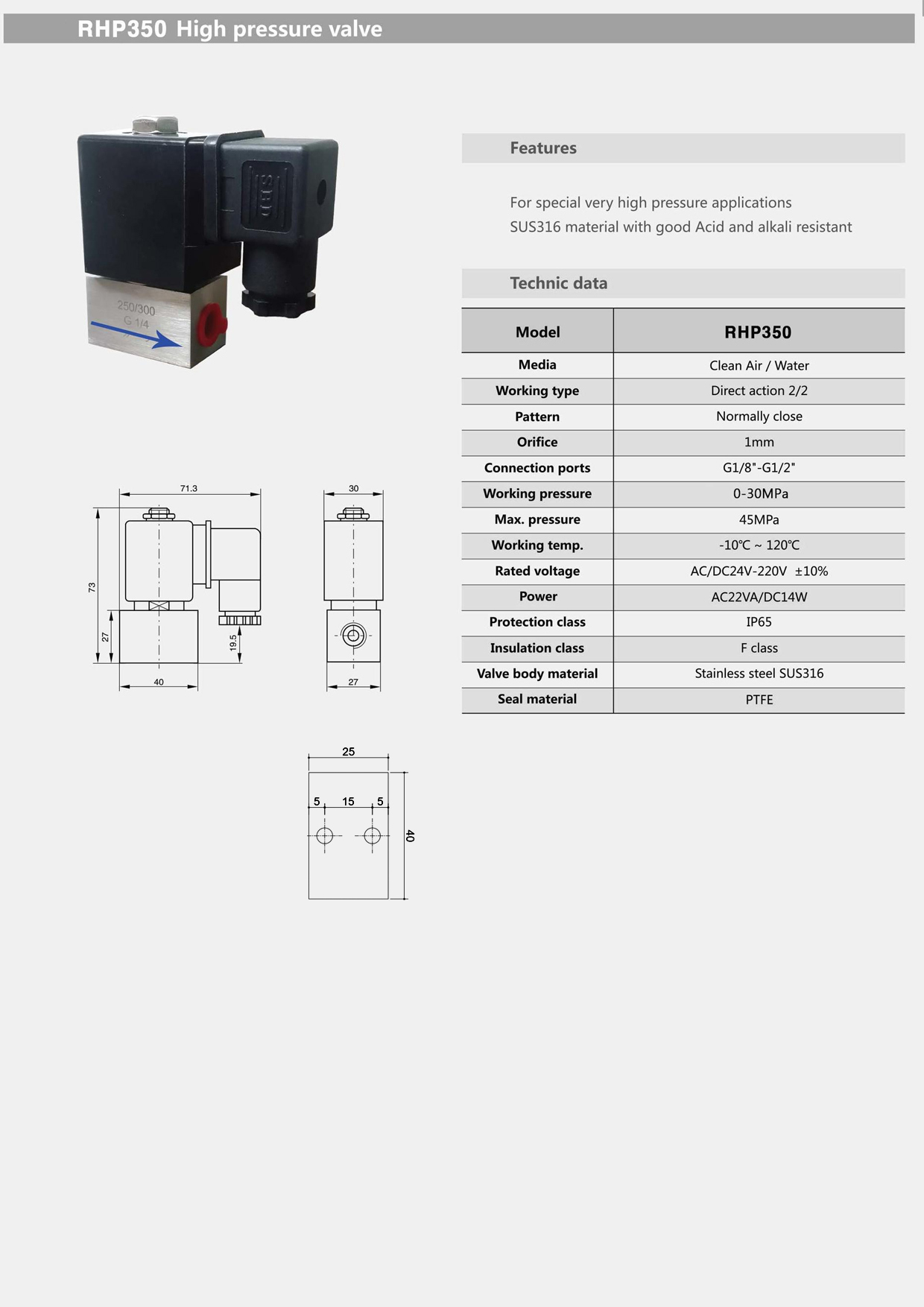

●(RHP300, 생산),  (RHP350, RHP250, 생산중단)

●COIL=(SB257 COIL)

●Power=(AC /DC24~220V)

●connection=(G1/8 F) (G1/4 F) (G3/8 F) (G1/2 F)
